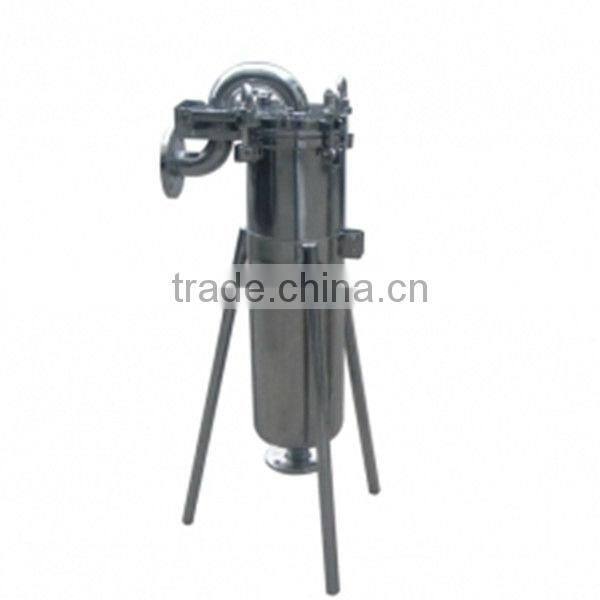

Top entry bag filter for liquid
- 2000 Set / Sets per Month
- ningbo or shanghai
- T/T Credit Card
- ShuoBao stainless steel filter 304/316 with PP filter bag for water pretreatment system
- ShuoBao water filter housing stainless high flow for water pretreatment system
- ShuoBao 1 micron water filter with liquid filter bag for PCB
- Shuobao all size stainless water filter housing for water filtration
- Shuobao International Standard Stainless Steel cartridge filter 304/316
- SUS 304 cartridge filter High-Temperature Resistant Steel
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | DAFO | Model Number: | DF-SEBF01 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Top entry bag filter for sell
Filter bag Vessels have a high solids holding capacity. These types of bag filtration systems can stand alone for sediment removal or they can be used in combination with other equipment. Sizes range from single-bag units to 7-bag unites. Both carbon steel and stainless steel constructions available.

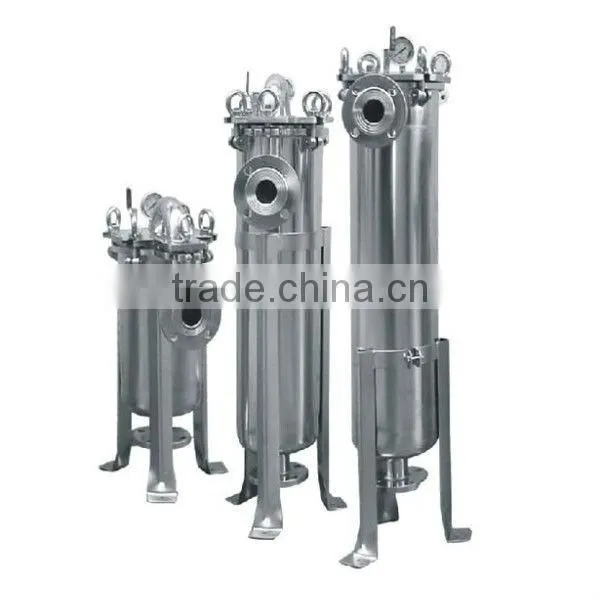

Filter bag Vessel type |
1.Sideline Single Bag Filter vessel |
2.Topline Single Bag Filter vessel |
3.Multi Bag Filter vessel |
Filter bag vessel Specification | |
Material: | SS304 SS316L 904L or lined |
Bag Size : | 1 2 3 |
Inlet&outlet : | DIN ANSI Tri clamp NPT |
Seal media : | BUNA N EPDM VITON SILCONE PTFE |
Maximum Operating Pressure : | 150psi |
Maximum Operating Temperature | 400F |
Surface Finish | Bead blasted or polished |
Bag Filter Housing
The Top Entry Bag
Liquid bag filter effectively removes dirt, pipe scale, and other contaminants from process liquids such as water, chemical
and petroleum products. Standard housing material is 316 Stainless Steel or 304 Stainless Steel with Electro-Polishing as an option. The standard configuration of these units assures that they can beeasily incorporated
into your system. The cover opening direction can be changed to any one of the four Zinc plated steel eye
bolts for easy bag changeout. The design of the housing allows the use of standard and high efficiency filter
bags plus a variety of oring materials with no change in design. This means that whether its hydrocarbons,
glycol, coolant, inks or water, the SNB Side Entry, Single Bag Filter Housing will fit the need.
Bag Filter
Available in 304 or 316 Stainless Steel for superior corrosion resistance.
150 PSI working pressure, temp. 190°F Max.
Adjustable leg assembly included.
For standard #1 or #2 Bag Sizes.
Cover opening direction can be changed in the field.
Eye bolt closure for easy bag change-out operation.
Stainless perforated basket with bag hold down device included.
EPDM O-Rings standard (other materials available).
Steel or 304 Stainless Steel. The lid assembly is an investment casting of the same material.
Electo-Plating is an optional feature.
Two body sizes are available to accommodate two different bag sizes; #1 bag size (7x15) and #2 bag size (7x30).
The adjustable leg assembly is SS 304 or SS316L.
The standard material of construction for the Perforated Basket will match the housing material. Inlet and Outlet connections are NPT Threaded or ANSI Flanged.
Typical application
1.Bag filter can be used for food&beverage wine industry and meet sanitary grade requiement.
2.Petrochemical,chemical industry
3.Biopharmaceutical industry/Eviromental
4.Printing,furniture industry
Technical specification
Name | Inner surface |
max operate pressure | 1.0 |
max operate temp | 110 |
pressure tolerance on weld | 0.85 |
corrosion by acid | 0 |
Main parameters
Item | A | B | C | D | E | H | |
DD-1P1S | 450 | 380 | 140 | 95 | 80 | 550 | 206 |
DD-1P2S | 800 | 730 | 140 | 95 | 280 | 800 | 206 |
DD-1P3S | 280 | 240 | 100 | 700 | 190 | 450 | 133 |
DD-1P4S | 400 | 350 | 100 | 70 | 190 | 450 | 133 |
Packing Details
Zhejiang Dafeng Light Industrial Machinery Co.,Ltd can provide our customers with high quality stainless steel Chemical Reactors with agitation to process product. These tanks with high pressure resist,high temperature resist for dye,paper,pharmaceutical,and other chemical process industries,standards meet to national pressure vessel manufacture requirements.
