Hot Sell bag type filter
- 200 Set / Sets per Month
- ningbo or shanghai
- Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | DAFO | Model Number: | DF-BF |
Type: | Pocket Filter | Usage: | Liquid Filter | Material Of Bag: | Other, Stainless steel |
Product Description

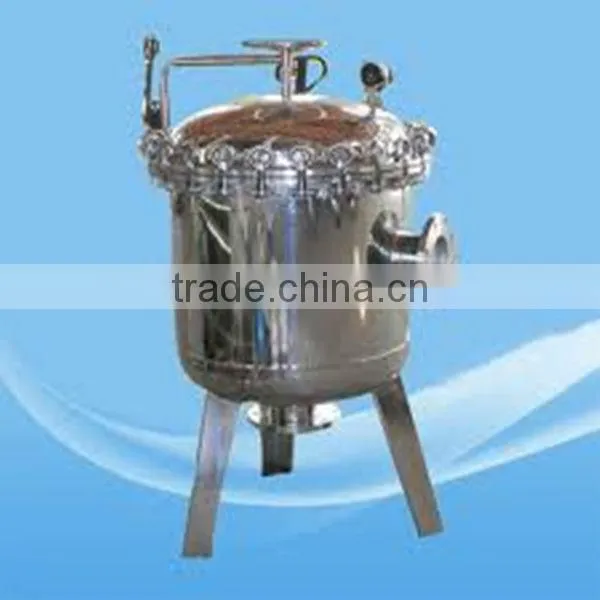

Round Bag filter housing Product
Description
Liquid Bag Filter effectively removes dirt,pipe scale,and other contaminants from process liquids such as
water, beverage,chemical ,sea water and petroleum products. Bag filter can be used with the standard #1,#2 size bagsor the standard perforated basket as a strainer. Mesh lined baskets are also available as an optional
feature effective filtering area is rather big, achieving more efficient filtering result;Eye Bolt Closure System-The user friendly,cost effective bag filter housing for high volume,multiple applications and processes.
The Max. flow of single unit are from 90 Cubic m/h to 1080 cubic m/h.
Technical specification
1.Material:SUS304,SUS316L or carbon steel
2.Design vessel pressure :0.6-1.0Mpa
3.Operate temperature:-20-130°C
4.Filtering accuracy: 0.1-20um
5.Filter Bag type:1#Bay,2#Bag,3#Bag,4#Bag
6.Flow Type:Side Entry,Top Entry,S-Multi,B-Multi Bag Filter
7.Connection vessel:GB,ANSI,JIS,and other flange
8.Inlet/Out Dimension: 1",1.5",2",2.5",3",3.5",4"
9.Surface Finish: Mirror Polish,Electrical Polish, Acid Washing,Matt Polish,Sand Blashed
10.Usage:widely used in Food & Beverage,Wine Industry,Medicine, Chemical Industry, Electronic Industry and
So On.
Characteristics
1. A unique filter design techniques, to be effective in preventing filter bag filter trap into the basket, ensure
100% without spills.
2. Basket laid by the computer, the high-intensity laser drilling stainless steel plate, with rarely fixtures materials after molding, polishing.
3. Compact size and reasonable. Installation and operation is simple and convenient , the site is smaller.
4. Filtration with high precision, it applies to any suspension or fine particulate material, the filters range from
1~800 micron.
5. Dealing with a larger flow filtration unit area, the smaller filtration resistance, high filtration efficiency.
Function of one filter bag is 5-10 times than filter core of the same type, which can greatly reduce costs .
Flow design can meet the requirements of 1~500m3/h, down low the manufacture cost.
6. A wide range of uses, can be used for coarse filtration, middle Filter or accuracy filter; It comes to lower
investment cost, long life and low cost when achieve the same results in the circumstances compared with
Pre-filter water filtration and precision machines and other equipment.
7. In the same rational structure and operation of low-cost, effectiveness and capacity of the filter, bag filters
takes lower price than foreign imports.
Main Parameters
Item | A (mm) | B (mm) | C (mm) | D (mm) |
DFBF-3P1S | 1350 | 450 | 450 | 200 |
DFBF-4P1S | 1400 | 450 | 600 | 200 |
DFBF-6P1S | 1600 | 450 | 750 | 200 |
DFBF-8P1S | 2150 | 450 | 1150 | 200 |
DFBF-3P2S | 1650 | 750 | 450 | 200 |
DFBF-4P2S | 1700 | 750 | 600 | 200 |
DFBF-6P2S | 1900 | 750 | 750 | 200 |
DFBF-8P2S | 2450 | 750 | 1150 | 200 |
