Frame filter

Frame filter

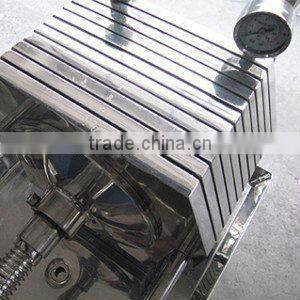

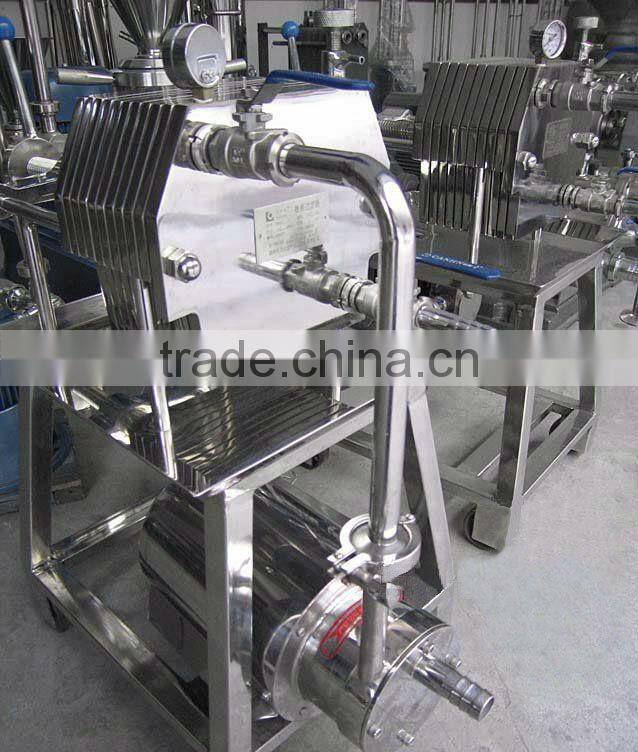

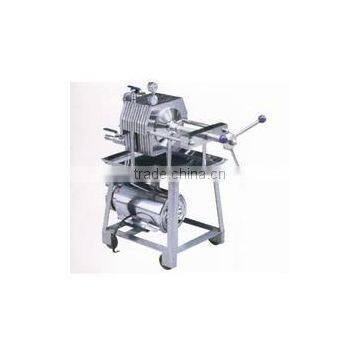

Stainless steel multi-layer frame filter, apply for the closure filtration of liquid below the concentration of 50% with low viscosity, and slag content, so that the straining, semi-straining requirements such as disinfection, clarification can be reached, the micro filtration membrane is applied, so the propose of aseptic filtration can be achieve without the micromesh membrane filter.

This machine has wide filter area, heavy flux, is widely used, is broadly used in the pharmacy industry, chemical industry, food industry and so on.

Advantages

1. full stainless steel

2. corrosion-resistant durability

3. flexible application

4. high temperature, non-toxic, no leakage, good sealing performance

Application

Suspension for a variety of solid-liquid separation for a wide range of applied medicine, food, chemical, environmental protection, water treatment, electronic, textile, electroplating and other ralated industries.

Operation Principle/ Design Feature

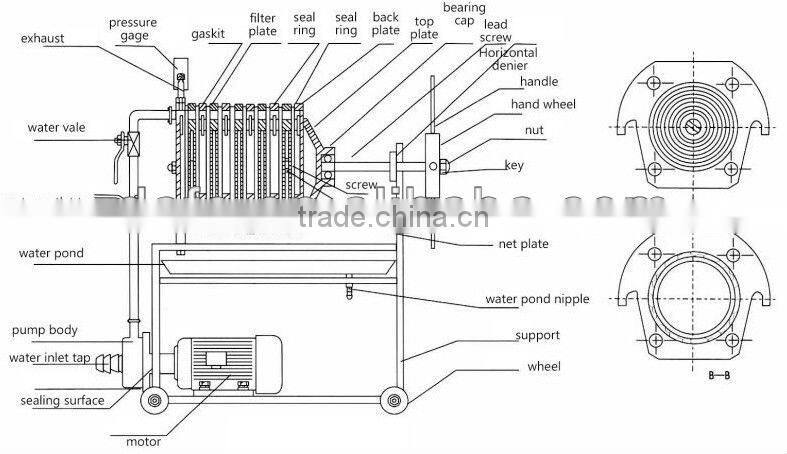

Suspension into the filter unit with a pump filter every closed room, under pressure, the filtrate through the filter layer and the membrane or other filter , the membrane fluid discharge port,the residues were kept in box form a cake plate, to achieve solid-liquid separation.

 Detailed Features

The machines are made of SUS304 or SUS316L stainless steel material, corrosion-resistant durability.Plate with thread-like structure,according to different filter media and the production process (initial filter, semi-fine filter, fine filter) to replace a different filter ( direct use sterile filtration membrane to achieve the purpose).

Uses can also filter the amount based on the size of a corresomding reduction or increase in number of layers to suit production needs. At the same time producing no leakage frame filter cloth.The filter sealing pressure machine at work, without loss of liquid material, liquid clarity is good, also based on user needs a special multi-stage filter, a coarse filter to put, place two smaller filters, saving time and improve the filtering accuracy.

All parts of the machine sealed with silicone rubber seals, high temperature, non-toxic, no leakage, good sealing performance. The machine can automatically return the user needs a special device, when the pump stops, open the return valve, automatic discharge of all sediments (both  exhaust function), and return with water from the tube recoil, very convenient.
