Description
Liquid Bag Filter effectively removes dirt,pipe scale,and other contaminants from process liquids such as
water, beverage,chemical ,sea water and petroleum products. Bag filter can be used with the standard #1,#2 size bagsor the standard perforated basket as a strainer. Mesh lined baskets are also available as an optional
feature effective filtering area is rather big, achieving more efficient filtering result;Eye Bolt Closure System-The user friendly,cost effective bag filter housing for high volume,multiple applications and processes.
The Max. flow of single unit are from 90 Cubic m/h to 1080 cubic m/h.
Characteristics
1. A unique filter design techniques, to be effective in preventing filter bag filter trap into the basket, ensure
100% without spills.

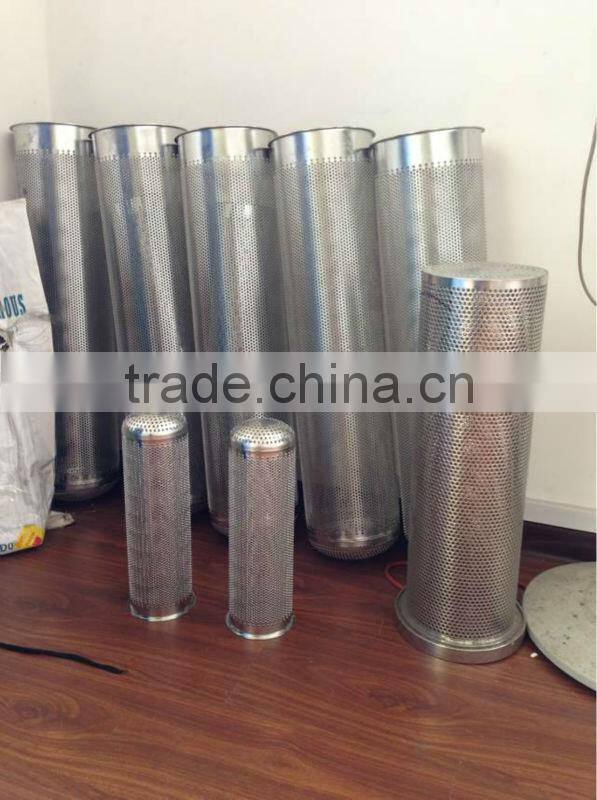

2. Basket laid by the computer, the high-intensity laser drilling stainless steel plate, with rarely fixtures materials after molding, polishing.
3. Compact size and reasonable. Installation and operation is simple and convenient , the site is smaller.
4. Filtration with high precision, it applies to any suspension or fine particulate material, the filters range from
1~800 micron.
5. Dealing with a larger flow filtration unit area, the smaller filtration resistance, high filtration efficiency.
Function of one filter bag is 5-10 times than filter core of the same type, which can greatly reduce costs .
Flow design can meet the requirements of 1~500m3/h, down low the manufacture cost.
6. A wide range of uses, can be used for coarse filtration, middle Filter or accuracy filter; It comes to lower
investment cost, long life and low cost when achieve the same results in the circumstances compared with
Pre-filter water filtration and precision machines and other equipment.
7. In the same rational structure and operation of low-cost, effectiveness and capacity of the filter, bag filters
takes lower price than foreign imports.
Technical specification
1.Material:SUS304,SUS316L or carbon steel
2.Design vessel pressure :0.6-1.0Mpa
3.Operate temperature:-20-130°C
4.Filtering accuracy: 0.1-20um
5.Filter Bag type:1#Bay,2#Bag,3#Bag,4#Bag
6.Flow Type:Side Entry,Top Entry,S-Multi,B-Multi Bag Filter
7.Connection vessel:GB,ANSI,JIS,and other flange
8.Inlet/Out Dimension: 1",1.5",2",2.5",3",3.5",4"
9.Surface Finish: Mirror Polish,Electrical Polish, Acid Washing,Matt Polish,Sand Blashed
10.Usage:widely used in Food & Beverage,Wine Industry,Medicine, Chemical Industry, Electronic Industry and
So On.

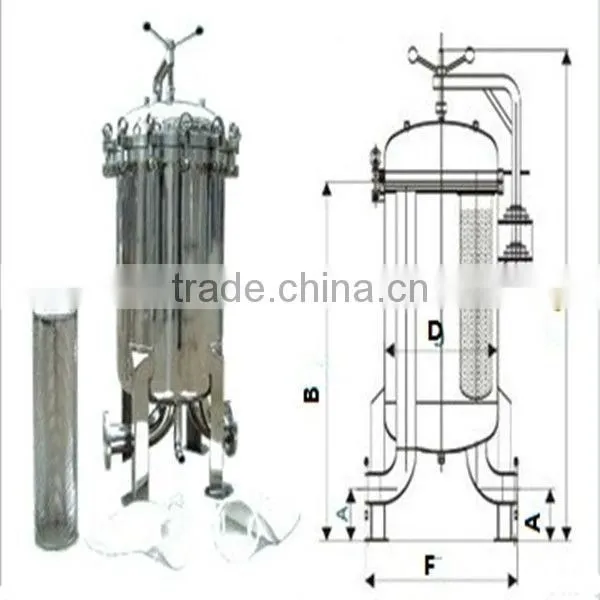

Main Parameters
| Item |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
| DFBF-3P1S | 1350 | 450 | 450 | 200 |
| DFBF-4P1S | 1400 | 450 | 600 | 200 |
| DFBF-6P1S | 1600 | 450 | 750 | 200 |
| DFBF-8P1S | 2150 | 450 | 1150 | 200 |
| DFBF-3P2S | 1650 | 750 | 450 | 200 |
| DFBF-4P2S | 1700 | 750 | 600 | 200 |
| DFBF-6P2S | 1900 | 750 | 750 | 200 |
| DFBF-8P2S | 2450 | 750 | 1150 | 200 |
