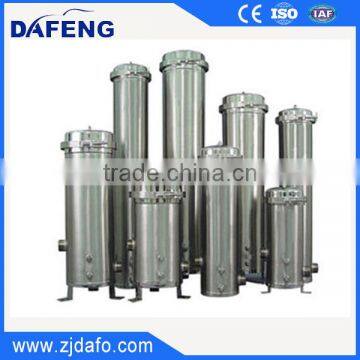

Round Bag filter housing Product
specification
Liquid Bag Filter effectively removes dirt,pipe scale,and other contaminants from process liquids such as
water, beverage,chemical ,sea water and petroleum products.
Bag filter can be used with the standard #1,#2 size bagsor the standard perforated basket as a strainer.
Metal Basket lined wire mesh are also available as an optional,
Achieving more efficient filtering result;

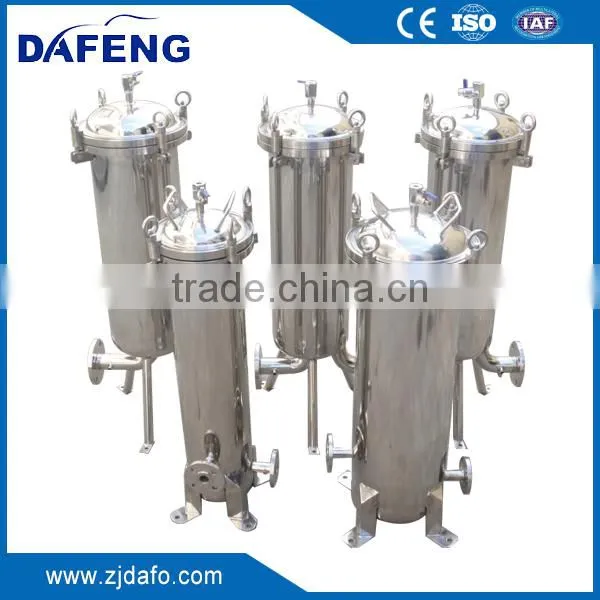

Eye Bolt Closure System-The user friendly,cost effective bag filter housing for high volume,multiple applications and processes.
The Max. flow of single unit are from 90 Cubic m/h to 1080 cubic m/h.
Parameters
1.Material:SUS304,SUS316L or carbon steel
2.Design vessel pressure :0.6-1.0Mpa
3.Operate temperature:-20-130°C
4.Filtering accuracy: 0.1-20um
5.Filter Bag type:1#Bay,2#Bag,3#Bag,4#Bag
6.Flow Type:Side Entry,Top Entry,S-Multi,B-Multi Bag Filter
7.Connection vessel:GB,ANSI,JIS,and other flange
8.Inlet/Out Dimension: 1",1.5",2",2.5",3",3.5",4"
9.Surface Finish: Mirror Polish,Electrical Polish, Acid Washing,Matt Polish,Sand Blashed
10.Usage:widely used in Food & Beverage,Wine Industry,Medicine, Chemical Industry, Electronic Industry and
So On.
Characteristics
1. A unique filter design techniques, to be effective in preventing filter bag filter trap into the basket, ensure
100% without spills.
2. Basket laid by the computer, the high-intensity laser drilling stainless steel plate, with rarely fixtures materials after molding, polishing.
3. Compact size and reasonable. Installation and operation is simple and convenient , the site is smaller.
4. Filtration with high precision, it applies to any suspension or fine particulate material, the filters range from
1~800 micron.
5. Dealing with a larger flow filtration unit area, the smaller filtration resistance, high filtration efficiency.
Function of one filter bag is 5-10 times than filter core of the same type, which can greatly reduce costs.
Flow design can meet the requirements of 1~500m3/h, down low the manufacture cost.
6. A wide range of uses, can be used for coarse filtration, middle Filter or accuracy filter; It comes to lower
investment cost, long life and low cost when achieve the same results in the circumstances compared with
Pre-filter water filtration and precision machines and other equipment.
7. In the same rational structure and operation of low-cost, effectiveness and capacity of the filter, bag filters takes lower price than foreign imports.
Main Parameters
| Item |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
| DFBF-3P1S | 1350 | 450 | 450 | 200 |
| DFBF-4P1S | 1400 | 450 | 600 | 200 |
| DFBF-6P1S | 1600 | 450 | 750 | 200 |
| DFBF-8P1S | 2150 | 450 | 1150 | 200 |
| DFBF-3P2S | 1650 | 750 | 450 | 200 |
| DFBF-4P2S | 1700 | 750 | 600 | 200 |
| DFBF-6P2S | 1900 | 750 | 750 | 200 |
| DFBF-8P2S | 2450 | 750 | 1150 | 200 |
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
