Help CenterSanitary or Single Sanitary Filter Housing, Cartridge Filter Housing
Related Products
-
Microporous Membrane Barrel Type FilterUS$ 500 - 1,200MOQ: 1 Piece -
High Quality Stainless Steel Multi and Single ss Liquid Bag Filter HousingUS$ 200 - 990MOQ: 1 Set
-
1000BPH All Automatic Mini Bottling Water LineUS$ 1,000 - 50,000MOQ: 1 Set
-
Turn-key Mineral Water Production LineUS$ 1,000 - 50,000MOQ: 1 Set
-
RO Pure Water Treatment EquipmentUS$ 1,000 - 5,000MOQ: 1 Set
surfaces are polished to 0.3um ra for fast and easy surface cleaning.which minimizes the risk of contamination,improves clean and enhances corrosion resistance.
sanitary vents and drains facilitate sampling,integrity testing,venting,safe and easy draning proper o-ring seal for 222,226 and DOE element .
optional sanitary drain and vent valves enable complete drainage of liquids after filtration and simplify filter removal.
Pharmaceutical
1.veterinary
2.food&beverage
3.biotechnology
dical&medical device
5.laboratory
6.chemical and painting industrial filtration
Specification
| Name | Inner surface |
| max operate pressure | 1.0 |
| max operate temp | 110 |
| pressure tolerance on weld | 0.85 |
| corrosion by acid | 0 |
Main Parameters

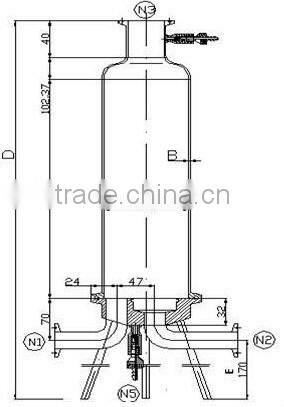

| Item | No.of cartridges | A | B | C | D | E |
| DX-1R10 | 1*10'' | 708 | 300 | 102 | 260 | 210 |
| DX-1R20 | 1*20" | 958 | 550 | 102 | 260 | 210 |
| DX-1R30 | 1*30'' | 1208 | 800 | 102 | 260 | 210 |
| DX-1R40 | 1*40'' | 1408 | 1000 | 102 | 260 | 210 |
| Item | No.of cartridges | A 20" |
30" |
40" | B 20" |
30" |
40" | C | D | E |
| LD-03 | 3-4R | 970 | 1220 | 1470 | 600 | 800 | 1050 | 219 | 200 | 360 |
| LD-03 | 5-6R | 1055 | 1255 | 1505 | 600 | 800 | 1050 | 250 | 200 | 400 |
| LD-03 | 7R | 1028 | 1278 | 1528 | 600 | 800 | 1050 | 273 | 200 | 420 |
| LD-03 | 8R | 1048 | 1298 | 1548 | 600 | 800 | 1050 | 300 | 200 | 450 |
| LD-03 | 9R | 1048 | 1298 | 1548 | 600 | 800 | 1050 | 325 | 200 | 470 |
| LD-03 | 11-12R | 1057 | 1307 | 1557 | 600 | 800 | 1050 | 350 | 200 | 500 |
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
