Specifications
Lenticular Filter housing
1.suitable for 12" and 16"
2.With CE,&ISO9001
3.ASME BPE or 3A
4.suitable for Pall,CUNO module

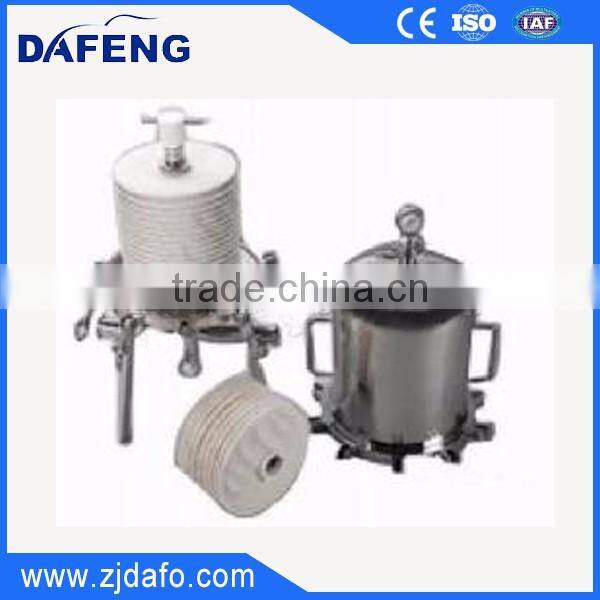

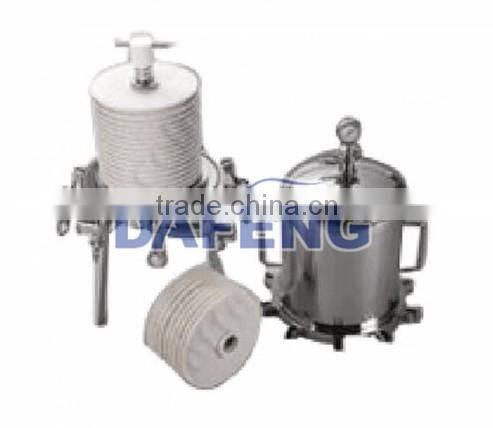

Beer Lenticular Depth Filter housing
lenticular filter housing Brief introduction
Lenticular filters have a long history in Food and Beverage applications, They arose out of the need to package sheet-based depth filter technology in more user-friendly, modular closed systems, especially for small batch production or medium flow rate applications.Jhenten's lenticular filter housing can be suitable for international brand 's filter disk with lower cost.The surface finish totally arrive sanitary grade requirement.
lenticular can be suitable for international big brand's filter module ,which can reduce much cost . Such as CUNO ,Pall ,Millipore's filter module .
Lenticular Filter housing's advantages :
Versions available in high-grade AISI 304 and 316 L stainless steel
• 150PSI rated and up to 300ºF
• This apparatus was manufactured and tested under the standard of ASME BPE or 3A standard,
This apparatus meet GMP standard
•All wled-seam are argon are welded
• Hygienic design by avoiding dead space, Sanitary Filter Housing, No Dead Corner
•All surfaces that come in contact with the product are mirror polish or electro polished, Ra< 0.4 µm
• 1.5" Pressure Gauge Ports,1”Drain,1/4" air Vent"
Lenticular Filter Housing Operating Parameters
Max Operate pressure: 10bar
Max Operate temperature: 150ºC
Industrial sure tolerance on weld : 0.85
Corrosion by acid 0 mm
Lenticular Filter Housing Applications
Wine
Food &Beverage
Process Water
Pharmaceutical Liquids
Biotechnology & Laboratory
Medical &Medical Device
Chemical And Painting
Lenticular Filter Housing Main Parmeters
Item | A MM | B MM | C MM | D MM | E MM | F mm |
DF-08DB1 | 890 | 470 | 350 | 280 | 250 | 300 |
DF-08DB2 | 1160 | 740 | 620 | 280 | 250 | 300 |
DF-08DB3 | 1460 | 1010 | 890 | 280 | 250 | 300 |
DF-08DB4 | 1700 | 1280 | 1160 | 280 | 250 | 300 |
DF-12DB1 | 930 | 510 | 350 | 280 | 350 | 400 |
DF-12DB2 | 1200 | 780 | 620 | 280 | 350 | 400 |
DF-12DB3 | 1470 | 1050 | 890 | 280 | 350 | 400 |
DF-12DB4 | 1740 | 1320 | 1160 | 280 | 350 | 400 |
DF-16DB1 | 950 | 530 | 350 | 280 | 450 | 500 |
DF-16DB2 | 1220 | 800 | 620 | 280 | 450 | 500 |
DF-16DB3 | 1490 | 1070 | 890 | 280 | 450 | 500 |
DF-16DB4 | 1760 | 1340 | 1160 | 280 | 450 | 500 |
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
