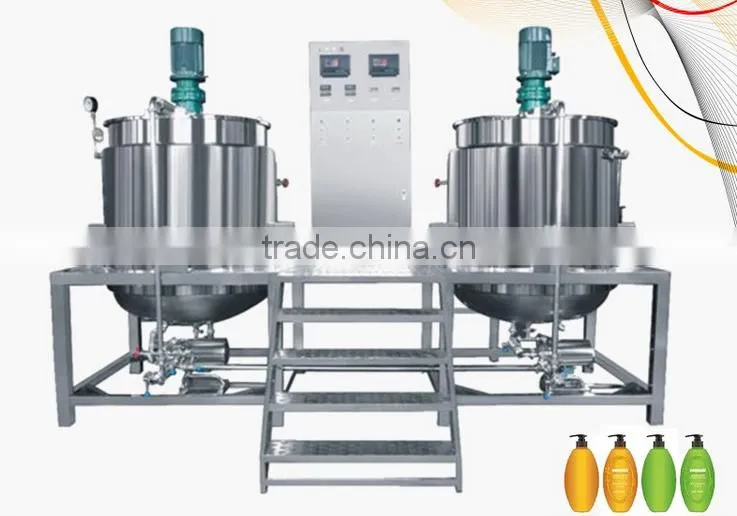

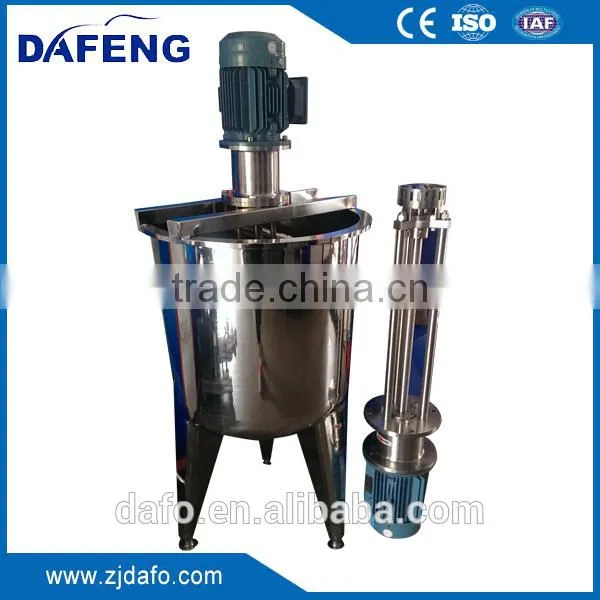

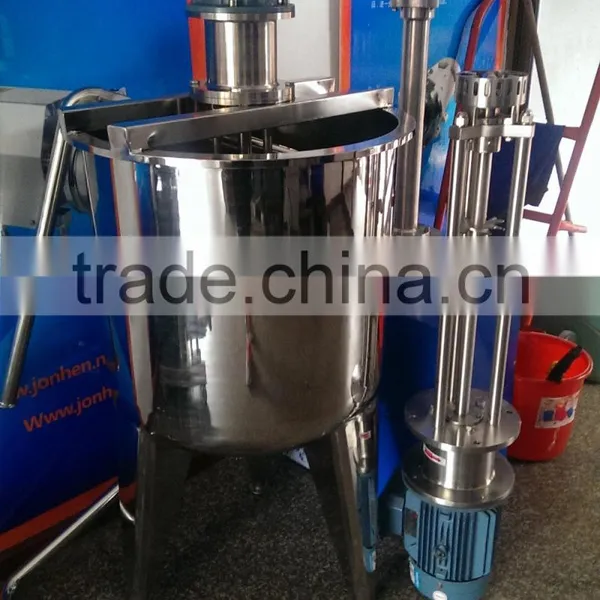

High sheared vacuum homogenizing emulsifier
Primary functions:

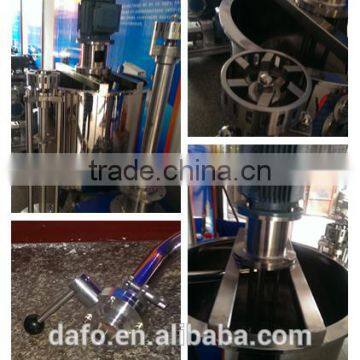

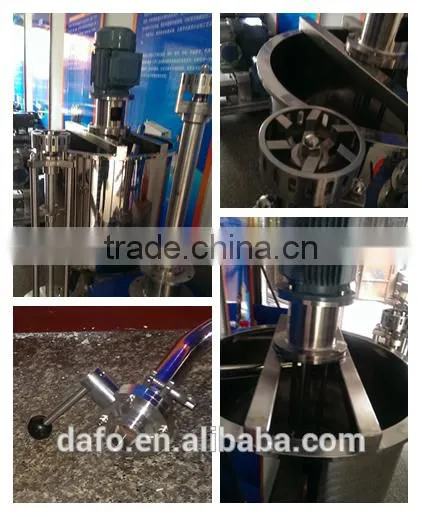

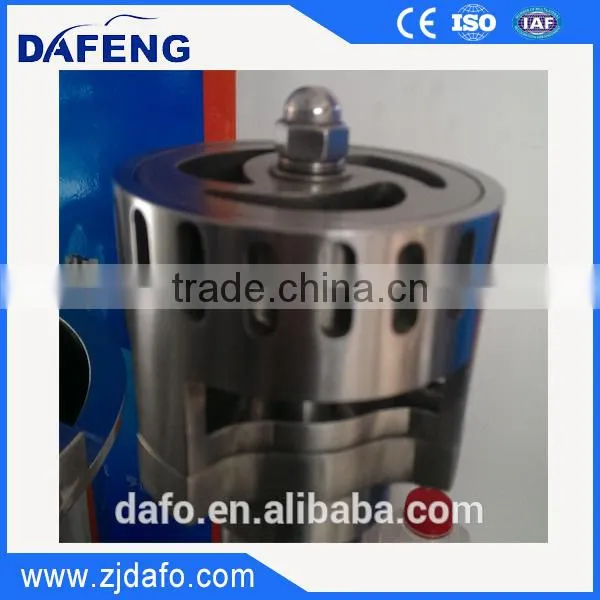

The high-shearing homogenization emulsion machine are high-powered stirring systems. Lower part has particular stator-rotor structure to make the material be high-shearing dispersed ,homogenized and emulsified intensively .Middle has high speed dispersed propeller-blade to assist with blending and homogenization .Upside has liquid flow under press type dispersed propeller-blade to control flow fluid effectively and process more thoroughly .
The equipment is applicable to blending, dispersing, homogenization and emulsification of fluid liquid material.
Application scope:
Food industry: edible coloring matter, chocolate coating, filling food, syrup, flavoring, various additive, etc;
Medicine industry: medical ointment, ointment, lotion, cream, various vitamin, etc
Chemical industry concerned with product of daily use: shampoo, detergent, cream, tooth paste, paraffin liquor, hair dye, etc.
Adhesive industry: rubber liquor, polyester sulfured, silicone, hot-melt adhesive, polyurethane, etc.
Emulsifier
emulsifying machine
Parameters:
Volume |
300L |
400L |
500L |
600L |
800L |
1000L |
1500L |
2000L |
3000L |
Tank diameter(mm) |
Φ800 |
Φ800 |
Φ900 |
Φ1000 |
Φ1000 |
Φ1000 |
Φ1200 |
Φ1300 |
Φ1600 |
Tank height(mm) |
600 |
800 |
800 |
800 |
1000 |
1220 |
1220 |
1500 |
1500 |
Motor power(kw) |
0.55 |
0.55 |
0.75 |
0.75 |
0.75 |
0.75 |
1.5 |
2.2 |
3 |
Mixing power(rpm) |
1400/2800rpm |
||||||||
Working pressure |
inner ≤0.1Mpa jacket 0.2MPa |
||||||||
Working temperature |
inner<120°C |
||||||||
Basic valve |
Sanitary manhole,cleaning ball,safety power,pressure meter |
||||||||
Note:
1,The parameters above are standard ,any special requirement, please put forward.
2,Interlayer’s working pressure ≤0.15Mpa,can be made according to special require.
3,Parameters like material, working pressure, working temperature and any special request should be noted.

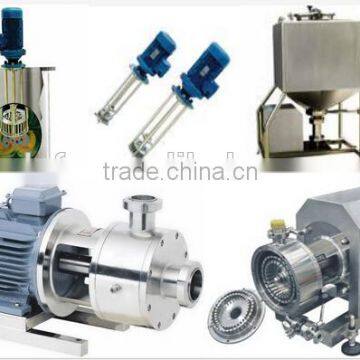

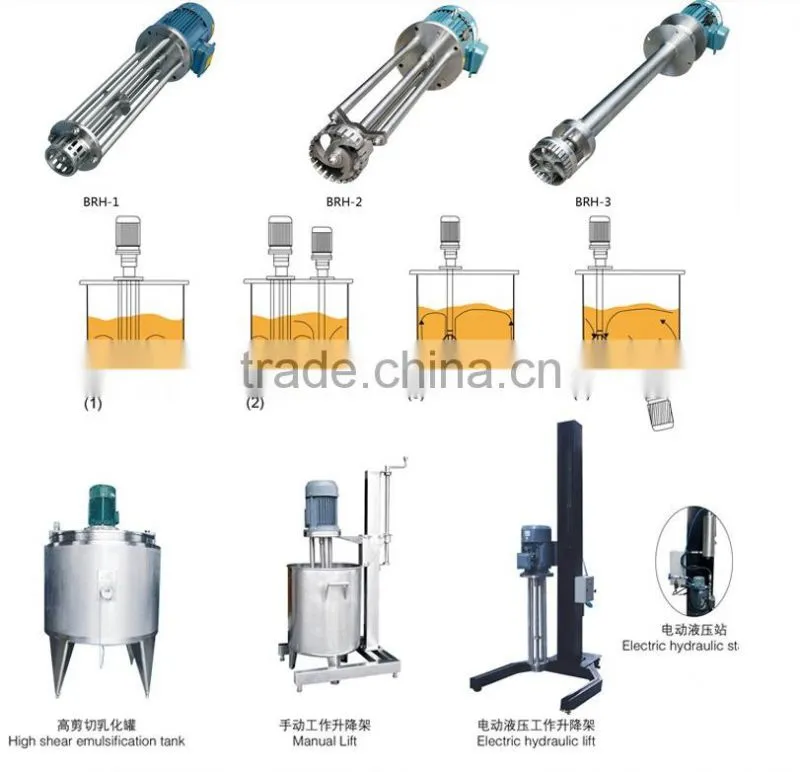

4.Various agitator types
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients onestop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Pre-sale service:
1. Free of making offers, craft and technical guidance.
2. We can provide company’s qualification certification and the drawings.
3. We can also make customized products according to customer’s needs.
After-sale service:
1. We provide long-term after-sale service.
2. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
