Specifications
1.High-shear Blending Emulsifiers2.emulsifying machine
3.emulsifier,1400/2800rpm
4.polished to Ra0.4
5.food dairy

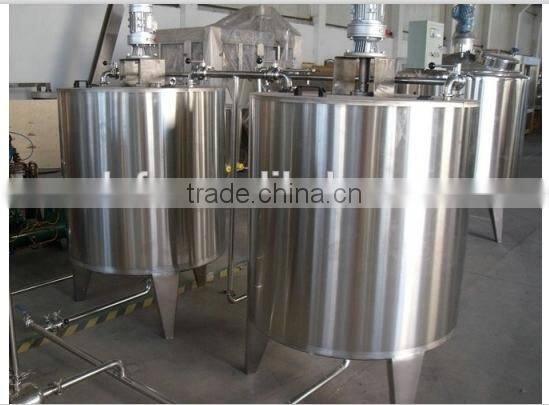

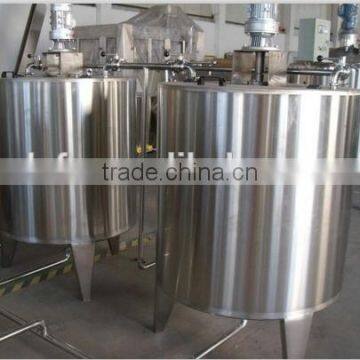

Emulsifier, emulsifier machine, emulsifying machine
Primary functions:

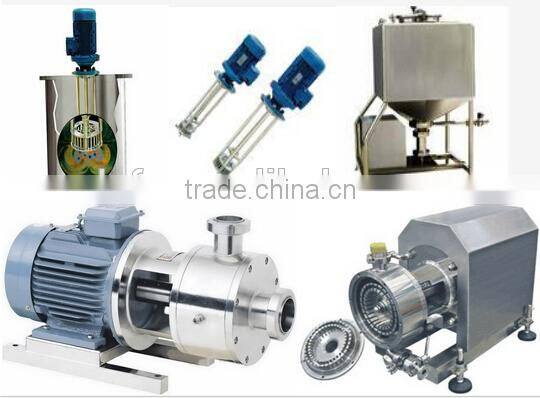

The RH series of intermittent type high-shearing homogenization emulsion machine are high-powered stirring systems. Lower part has particular stator-rotor structure to make the material be high-shearing dispersed ,homogenized and emulsified intensively .Middle has high speed dispersed propeller-blade to assist with blending and homogenization .Upside has liquid flow under press type dispersed propeller-blade to control flow fluid effectively and process more thoroughly .
The equipment is applicable to blending, dispersing, homogenization and emulsification of fluid liquid material.
Application scope:
Food industry: edible coloring matter, chocolate coating, filling food, syrup, flavoring, various additive, etc;
Medicine industry: medical ointment, ointment, lotion, cream, various vitamin, etc
Chemical industry concerned with product of daily use: shampoo, detergent, cream, tooth paste, paraffin liquor, hair dye, etc.
Adhesive industry: rubber liquor, polyester sulfured, silicone, hot-melt adhesive, polyurethane, etc.
Emulsifier
emulsifying machine
Parameters:
Volume | 300L | 400L | 500L | 600L | 800L | 1000L | 1500L | 2000L | 3000L |
Tank diameter(mm) | Φ800 | Φ800 | Φ900 | Φ1000 | Φ1000 | Φ1000 | Φ1200 | Φ1300 | Φ1600 |
Tank height(mm) | 600 | 800 | 800 | 800 | 1000 | 1220 | 1220 | 1500 | 1500 |
Motor power(kw) | 0.55 | 0.55 | 0.75 | 0.75 | 0.75 | 0.75 | 1.5 | 2.2 | 3 |
Mixing power(rpm) | 1400/2800rpm | ||||||||
Working pressure | inner ≤0.1Mpa jacket 0.2MPa | ||||||||
Working temperature | inner<120°C | ||||||||
Basic valve | Sanitary manhole,cleaning ball,safety power,pressure meter | ||||||||
Note:
1,The parameters above are standard ,any special requirement, please put forward.
2,Interlayer’s working pressure ≤0.15Mpa,can be made according to special require.
3,Parameters like material, working pressure, working temperature and any special request should be noted.

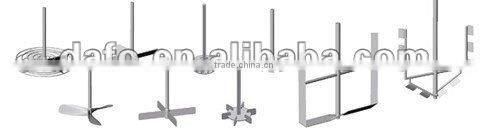

4.Various agitator types
