Specifications
1.DF-C Vacuum Homogeneous Emulsifying Machine2.It is applied to matrix viscosity, a relatively high content of solid material

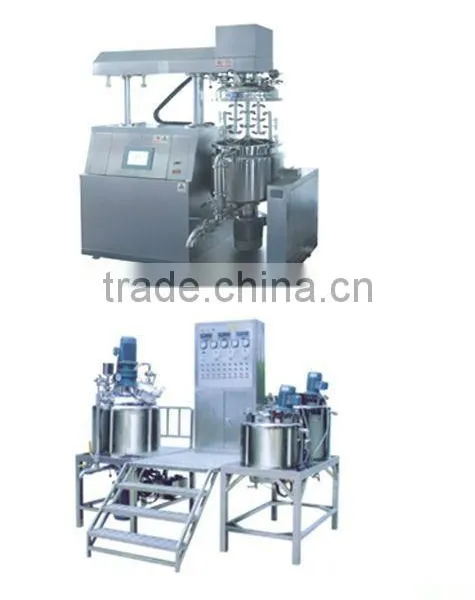

SG-C Type Tilting Vacuum Homogeneous Emulsifying Machine
[Product Introduction]
>>>>> Use
It is applied to cosmetics factory, pharmaceutical ointment, cream products production, especially for matrix viscosity, a relatively high content of solid material emulsion preparation more efficacy.
>>>>> Characteristic
Lifting type emulsifying machine is my company specializes in cosmetic and pharmaceutical industry small batch production of regular production and regular production of different products with
cream process and design, its biggest characteristic is the main pot cover capable of automatic lifting and can thoroughly clean the tank; the tilting discharging mode can ensure the maximum material
completely out material. Mixing the three agitators , The high speed emulsifying head with slow stirring vane reverse design.The unit is composed of pretreatment pot, vacuum emulsifying stirring the
pot, vacuum pump, hydraulic system, pouring system, electrical control system, the working platform and other parts. The unit has the advantages of simple operation, stable performance, homogeneous
good performance, high production efficiency, convenient cleaning, reasonable structure, small occupation area, high degree of automation.
>>>>> Standard configuration
A,It is consists of the main pot, water tank and the tank
B,A vacuum pump and a synchronous electromagnetic valve
C,Emulsifier and material filter
D,Hydraulic lifting system and mixing system
E,Stainless steel operating platform
onfiguration
A,The a debugger, frequency and electric control box
B,10.4 inches of color touch screen
C,Built-in PLC
D,Built-in printer
technical parameters
Model | SG-C-100 | SG-C-200 | SG-C-300 | SG-C-500 |
Emulsifying pot volume | 100 L | 200 L | 300L | 500 L |
The vacuum of emulsifying pot | -0.09 Mpa | -0.09 Mpa | -0.09 Mpa | -0.09 Mpa |
emulsifying the pot temperature | ≤120 °C | ≤120 °C | ≤120 °C | ≤120 °C |
Jacketed pressure | Atmospheric pressure | Atmospheric pressure | Atmospheric pressure | Atmospheric pressure |
Speed of Scraping Plate Blender | 0-60 r/min | 0-60 r/min | 0-60 r/min | 0-60 r/min |
Speed of Homogenizer | 2880 r/min | 2880 r/min | 2880 r/min | 2880 r/min |
Voltage | 50Hz 380V ±10%-15% | 50Hz 380V ±10%-15% | 50Hz 380V ±10%-15% | 50Hz 380V ±10%-15% |
