SUS304 500Liter Double Jacketed kettle
- 20 Set / Sets per Month
- Ningbo
- T/T Credit Card
- High Performance Small Yogurt Processing Plant / Milk Processing Packaging Plant Yogurt Production Line
- High Efficiency Coconut Water Processing Line / Coconut Milk Production Line
- Coconut Milk Production Line Yogurt Production Line Milk Processing Line
- High Quality Soya Milk Making Processing Best Price Yoghurt Plant
- High Efficiency Nut Milk Process Line with Best Sale High Quality Soya Milk Making Processing
- Hot Sell Factory Automatic Complete Soymilk nuts milk processing line
Product Details
Condition: | New | Brand Name: | DF | Model Number: | DF-JK01 |
Type: | Other, cooking equipment | Voltage: | customized | Power(W): | customized |
Weight: | accordingly | Dimension(L*W*H): | accordingly | Certification: | CE,ISO9001 |
Warranty: | 2 years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

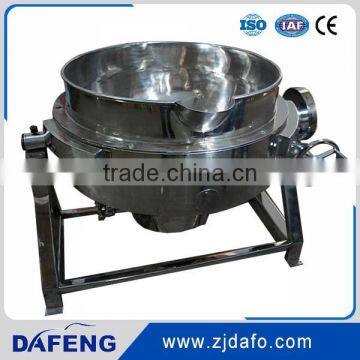

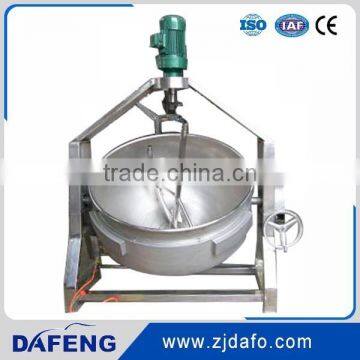

SUS304 500Liter Double Jacketed kettle
Introduction:
1.Widely applied in food processing such as candy, medicine,dairy, alcohol, cake, sweetmeat, beverage, can etc.
2.Be used to boil soup,cook,stew and porridge inrestaurants and canteens. It is considered to be the ideal equipment in the area of improving quality, shortening the time and improving working condition.
3All the material in contact with use stainless steel featuring good anticorrosion and durability which are in accordance with GMP standard.
Specification:
1.Stainless steel 304,316L
2.steam double jacketed

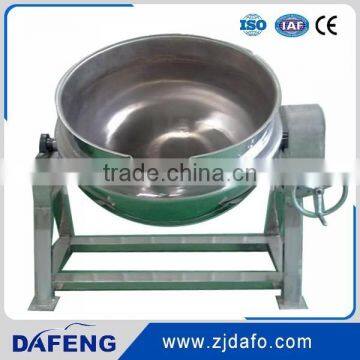

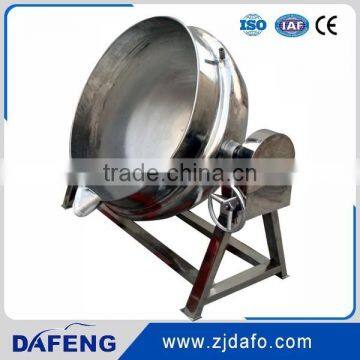

3.Handwheel tilting for discharging
4.CE<ISO9001
Characteristics:
1.Efficient Heating:
Steam heating jacketed kettle takes a certain pressure of steam as heat source. It has characteristics such as big heating area, uniform heating, high thermal efficiency, short boiling time, easy control of the heating temperature etc.
2.Convenience and safety:

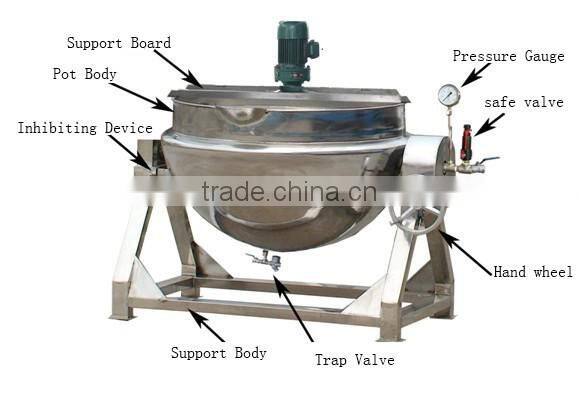

The boiler inner tier of boilers body (inner boiler) adopt anti-acid heat abstruse Mrs. type stainless steel fabrication,with piezometer and relief valve, attractive looks , easy to installation , operation is convenient , safety is reliable.
Technical Parameter:
Model | 50L | 100L | 200L | 300L | 400L | 500L | 600L | 800L | 1000L |

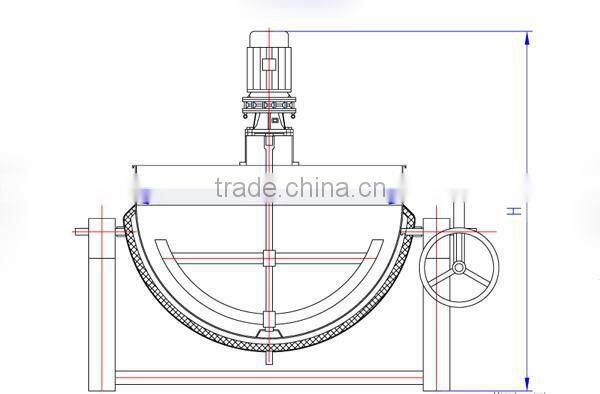

Depth of Pot(mm) | 400 | 450 | 530 | 630 | 680 | 730 | 780 | 830 | 900 |
Heating area(m2) | 0.45 | 0.58 | 1.12 | 1.42 | 1.75 | 2 | 2.3 | 3.2 | 3.9 |
Working pressure | ≤0.09Mpa | ||||||||
Stirring speed | 36 r/min | ||||||||
Stirring power(kw) | 0.55 | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 |
Notes:
1. The stirring power in the chart is standard configuration. Any specific requirements, please let us know.
2. Working pressure in the middle layer ≤0.09Mpa, also, this can be adapted according to customers’ requirement.
3. The process parameters that need provided when choosing the Jacketed Kettle: the nature of material, working pressure, temperature, specific requirements, etc.
Each equipment is not changeless one.
Therefore, we need you to send us specific inquiry,then can quote price and detailed information according to your specific technical deta and requirements.
The products have any question you can contact us,we will give you the best price and most reliable product guarantee.
