Tilting Type Double Steam Jacketed Kettle With Agitator

Tilting Type Double Steam Jacketed Kettle With Agitator photo-1
Tilting Type Double Steam Jacketed Kettle With Agitator photo-2

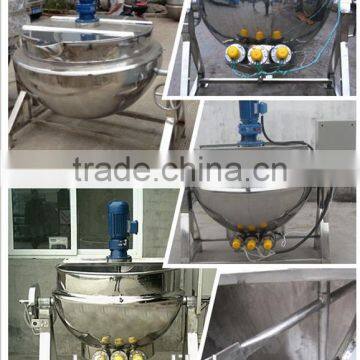

Tilting Type Double Steam Jacketed Kettle With Agitator photo-3
Tilting Type Double Steam Jacketed Kettle With Agitator photo-4
Tilting Type Double Steam Jacketed Kettle With Agitator photo-5
Tilting Type Double Steam Jacketed Kettle With Agitator photo-6
US$ 1,600 - 1,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
DF
Model Number:
JS
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name DF
Model Number JS
Type Cooking Equipment
After-sales Service Provided Engineers available to service machinery overseas
Product Description

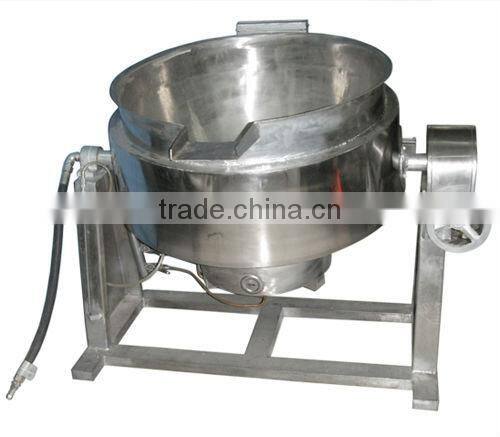

Tilting type double steam jacketed kettle with agitator



Jacket kettle can be devided into fixed and inclinable type, mainly apply to meat products, candies, beverages, canned food, also used in large restaurant or cafeteria for stewing porridge,boil water and cooking.





Once stamping forming hemisphere stainless steel pot body, using steam, liquid gas and natural gas for heating, mixing manner using special inclined drive, planet stirrer contacts with the pot body adequately, realize the drive revolution and rotation not for entire number drive ratio, make no dead angle in the pot. Using advanced drive and seal structure, make drive parts and pot clean and health. Using frequency control of motor speed power,operation is more stable. It is food processing equipment of excellent performance.

Usage

It is widely used for mixing of lotus paste, fruit paste,bean paste, jujube paste, sauce, curry prepared food and used in Daily Chemical Industry and pharmaceutical.



 Technical parameters:



Name

double steam jacketed kettle with agitator

Working capacity

50L-600L

Parameters

-All parts contact material is made of SUS316 material

-Full jacket for steam heating

design pressure:0.2-0.3MPa

design temperature:146 °C

-Rockwool insulation:50mm, Outer layer:SUS304

-External surfaces is Satin Polishing.3A finished

-Semi-Open cover, Stirring speed:30-36rpm

Work pressure: Inner 0.09MPa

Inner design temperature ≤137C°

Structure:180º tilting

Thickness: in:§=4mm, jacket: §= 4mm

Heating type: steam heating

Can be anchor mixer with scrapers for viscosity

liquid, Pressure vessel Certificates can be supplied

-other Accessories: exhaust valve, pressure meter, safely

valve, mixing device, CIP cleaning head, thermometer etc.

Package

Export wooden case or as customer's demand

Crate dimension(L*W*H)

According Specific Requirement

Payment

TT, L/C

Port of shipment

Ningbo

Delivery time

Within 20-30days after down payment





 Tilting type double steam jacketed kettle with agitatorTilting type double steam jacketed kettle with agitatorTilting type double steam jacketed kettle with agitator

Company Information

Our company’s advantages over other companies:

 Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.

We can provide clients onestop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.

Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.

Tilting type double steam jacketed kettle with agitator

Our certifications

Our company’s quality certification:

We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.

Our company’s customer segmentation:

Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,

Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.



Our Services

Pre-sale service:

1. Free of making offers, craft and technical guidance.
2. We can provide company’s qualification certification and the drawings.
3. We can also make customized products according to customer’s needs.

After-sale service:

1. We provide long-term after-sale service.
2. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.

Packaging & Shipping

Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
