Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > Mini Air Vacuum Pump

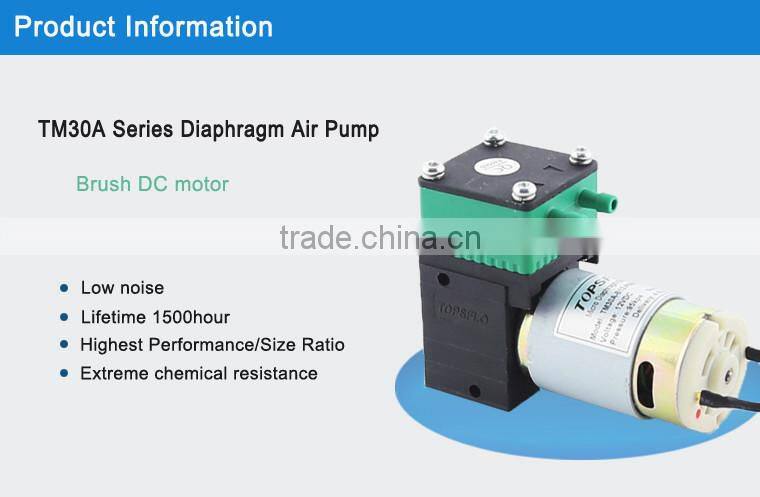

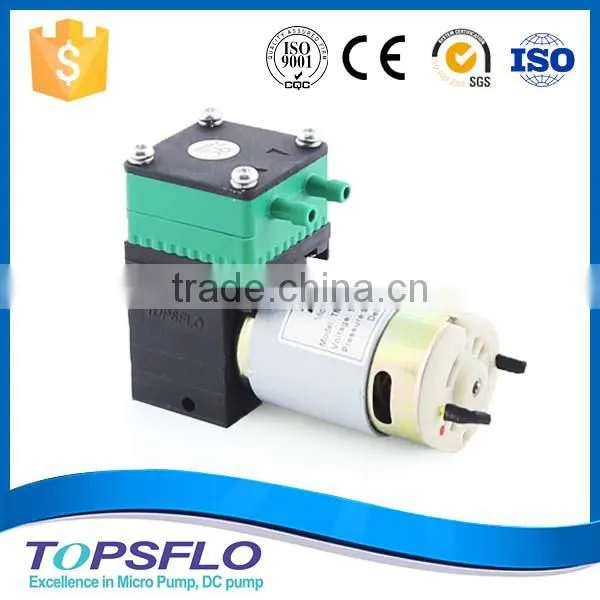

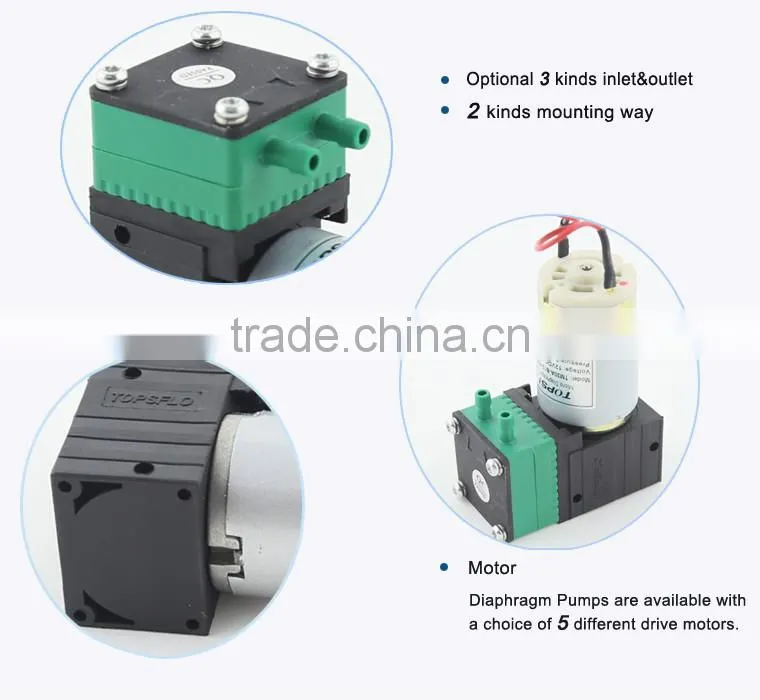

Mini Air Vacuum Pump

Name: Mini Air Vacuum Pump
Brand: TOPSFLO
SKU: 141359822
Availability: InStock

Negotiable MOQ: 200 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

TOPSFLO

Model Number:

TM30A-B

Structure:

Diaphragm Pump

Contact Supplier Request Quote Chat Now

Changsha TOPSFLO Micro Pump Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name TOPSFLO

Model Number TM30A-B

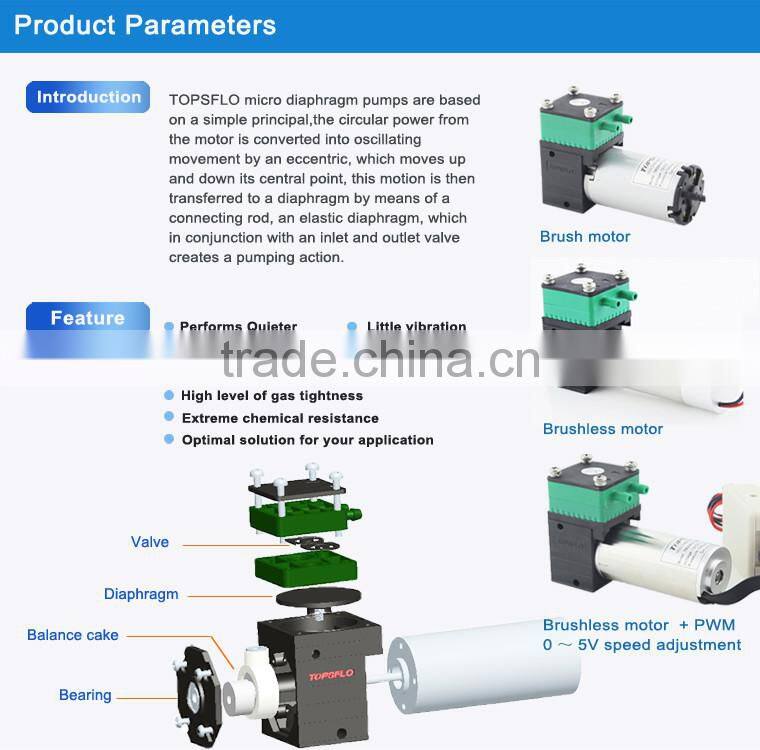

Structure Diaphragm Pump

Usage Water

Power Electric

Standard or Nonstandard Standard

Fuel Other, DC power, Battery

Pressure Low Pressure

Application Other, Gas transferring and evacuating

mini air vacuum pump

Specification:

Model	Pressure Pump	Vacuum Pump	Rated Voltage	No-load Current	Max Pressure	Max Vacuum	Max Flow
	(Item Number)	(Item Number)	(Vdc)	(A)	(KPa)	(KPa)	(L/min)

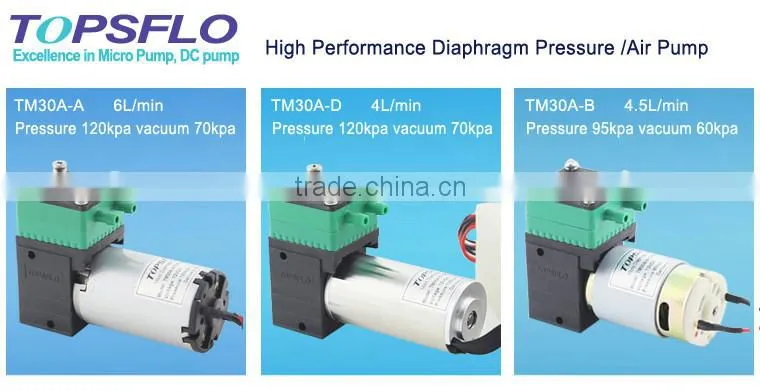

TM30A-B	TM30A-B12-P9504	TM30A-B12-V6004	6/12/24	0.4/0.24/0.15	95	-60	4.5

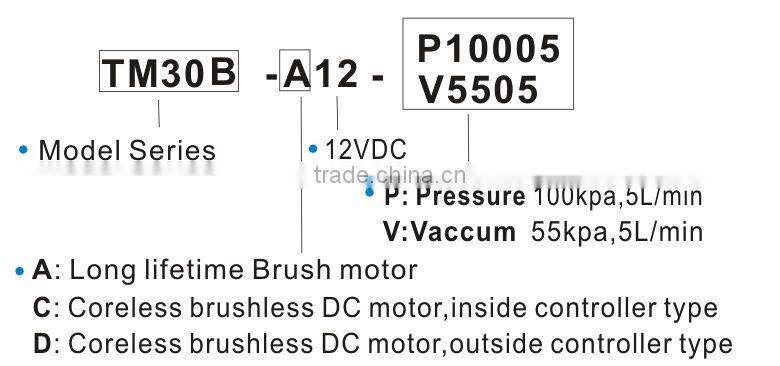

" P " means pressure pump, " / V " means vacuum pump, "6/12/24" means different voltages optional.

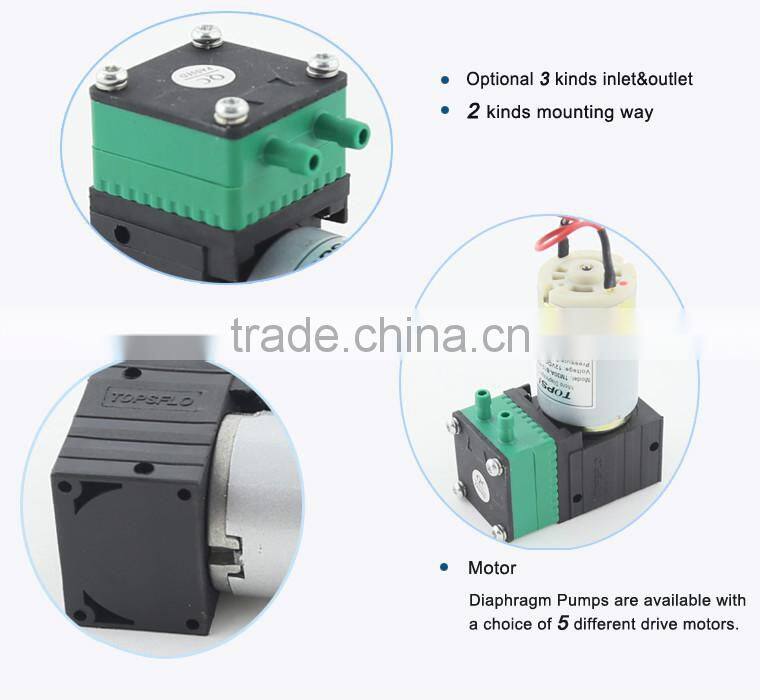

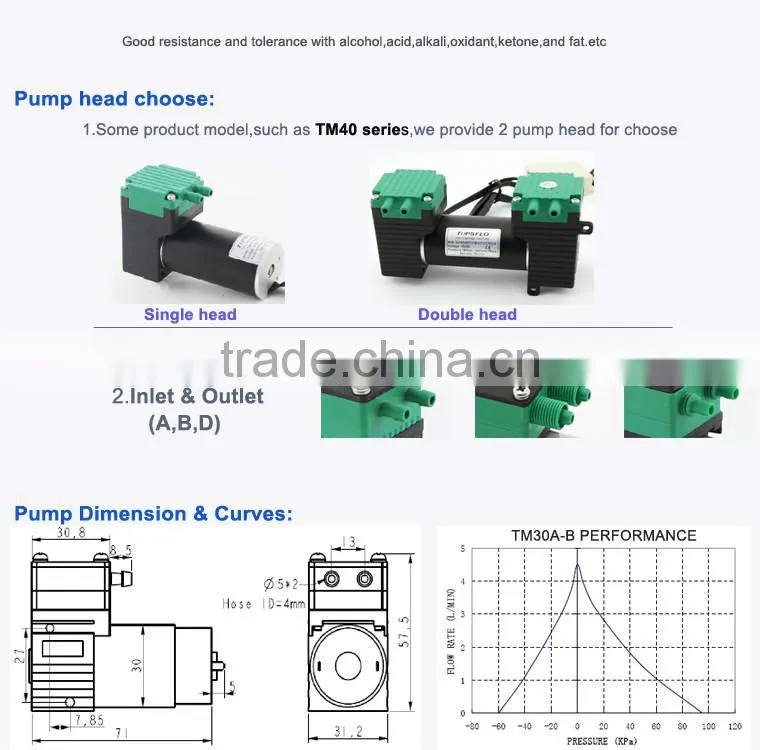

Pump Weight:150g; Pump Size:75mm31mm58mm; Inlet&Outlet:OD 4.8mm/ID 2.6mm,hose suggestion:ID 4.0mm
Super silent noise

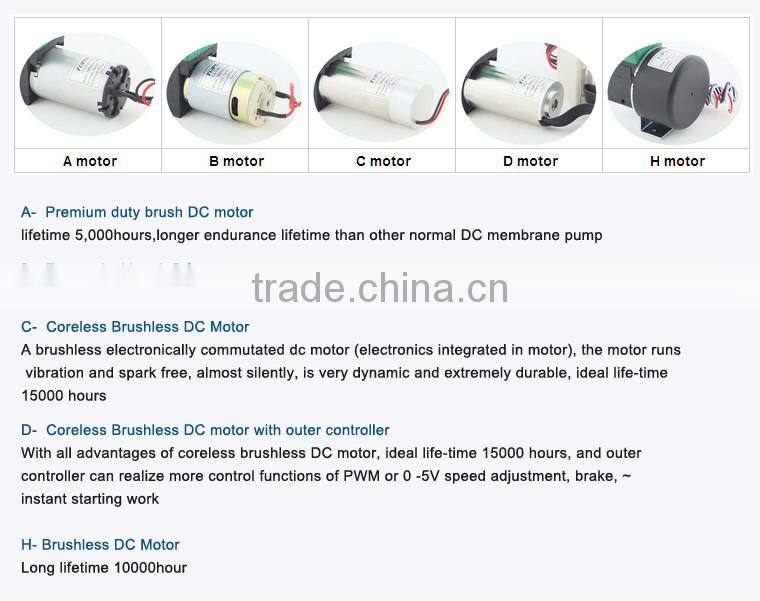

Motor type and code:“B”:economical brush DC motor (lifetime:1,000~1,500hours)
Comparing with the TZ economic series, pump with general more stable and higher performance for it's importing bearing, higher endurance membrane.

Technical features:
1. Uncontaminated flow.
2. Non-metallic construction.
3. Oil-Free, Corrosion resistant
4. Compact size, Low Weight
5. Low noise: The patient has treatments of 30 minutes, so it will bothers a lot if has big noise. So, for the pumps, the less noise, the better. Our this pump can work very quiet
6. Maintaince free.
7. High level of water tightness thanks to the closed
Diaphragm surface and special sealing system.
8. Can operate in any installed position
Can work continuously
Lifetime: The pump has over 1.500 hours

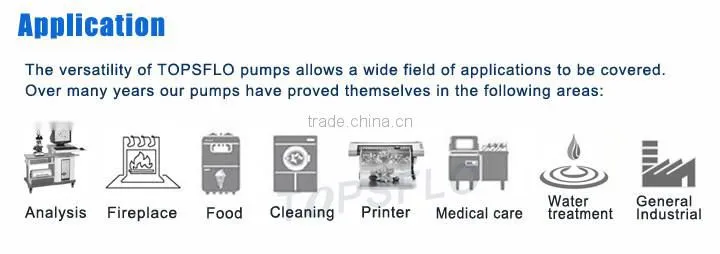

1. Industrial pressure and vacuum applications
2. Portable Analytical Instruments
3. Medical Diagnostic Equipment
4. Air Quality Sampling Monitors
5. Respiration Monitors
6. Gas or Odor Leak Detectors

etc..

Packing Detail

If you are unsure which pump is best suited to you needs, please give us some information on your intended use and the plumbing configuration, and we will be happy to advise. We aim to ensure customers get what they need, and we won't try and sell you something that is not suited to your requirements!
