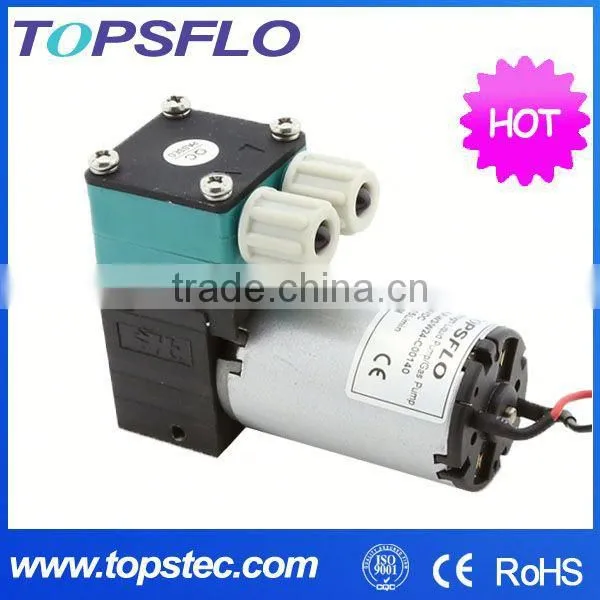

dc small gas liquid mixing pump
Description
TOPSFLO micro diaphragm liquid pumps are based on the principle of the oscillating displacement pump which is remarkably simple in design. The circular power from the motor is converted into vertical movement by an eccentric. This motion is then transferred to a diaphragm by means of a connecting rod which in conjunction with an inlet and outlet valve creates a pumping action.
1. Small and powerful
2. Extreme chemical resistance
3. Brush and brushless direct current motor for selection
4. Dry running, durable and maintenance free
5. Self-priming and excellent for pressure
6. Low noise, longer endurance lifetime than other normal membrane pump
Technical features
1. Uncontaminated flow.
2. Non-metallic construction.
3. Oil-Free, Corrosion resistant
4.Long life,High efficiency
5. Compact size, Low Weight
6. Low noise level&vibration
7. Maintaince free.
8. High level of water tightness thanks to the closed
diaphragm surface and special sealing system.
9. Can operate in any installed position.
Specification
| Voltage: | 6V 12V 24VDC |
| Max flow rate(L/min): | 0.15~1L/min |
| Max liquid head(M): | ≥40M |
| Lifetime: | longer endurance lifetime than other normal membrane pump, motor long lifetime>3000hours. |
| Noise: | super silent noise motor <50dB |
| Material: |
pump head Nylon, membrane EPDM / PTFE, valve EPDM EPDM: Good resistance and tolerance with alcohol, acid, alkali, oxidant, ketone and fat, etc. Poor oil resistivity. |
| Note: |
can be customized as requirements. |
Application
The versatility of TOPSFLO Diaphragm pumps allows a wide field of applications to be covered.
Over many years our pumps have proved themselves in the following areas:
|
Analysis
|
· Medical / pharmaceutical · Environmental / water treatment · Food / toxicology |
|
Laboratory
|
· Filtration · Chromatography |
|
Cleaning industry
|
· Cuvette cleaning · Sterilization · Industrial washing machines |
|
Printing
|
· Ink jet printing · Photographic / film development |
Other applications |
· Fuel cells, hydrogen generators, CD coating, dental technology, Airpler Vacuum transfer , Aatic Tourniquet Autoclave, Beauty equipment textiles and so on. |
Dimension (mm)- TOPSFLO Diaphragm pump
We are manufacturer and sincerely hope hear your enquiry and further suggestion which will give us an opportunity to service you well.
Thanks and best regards.
