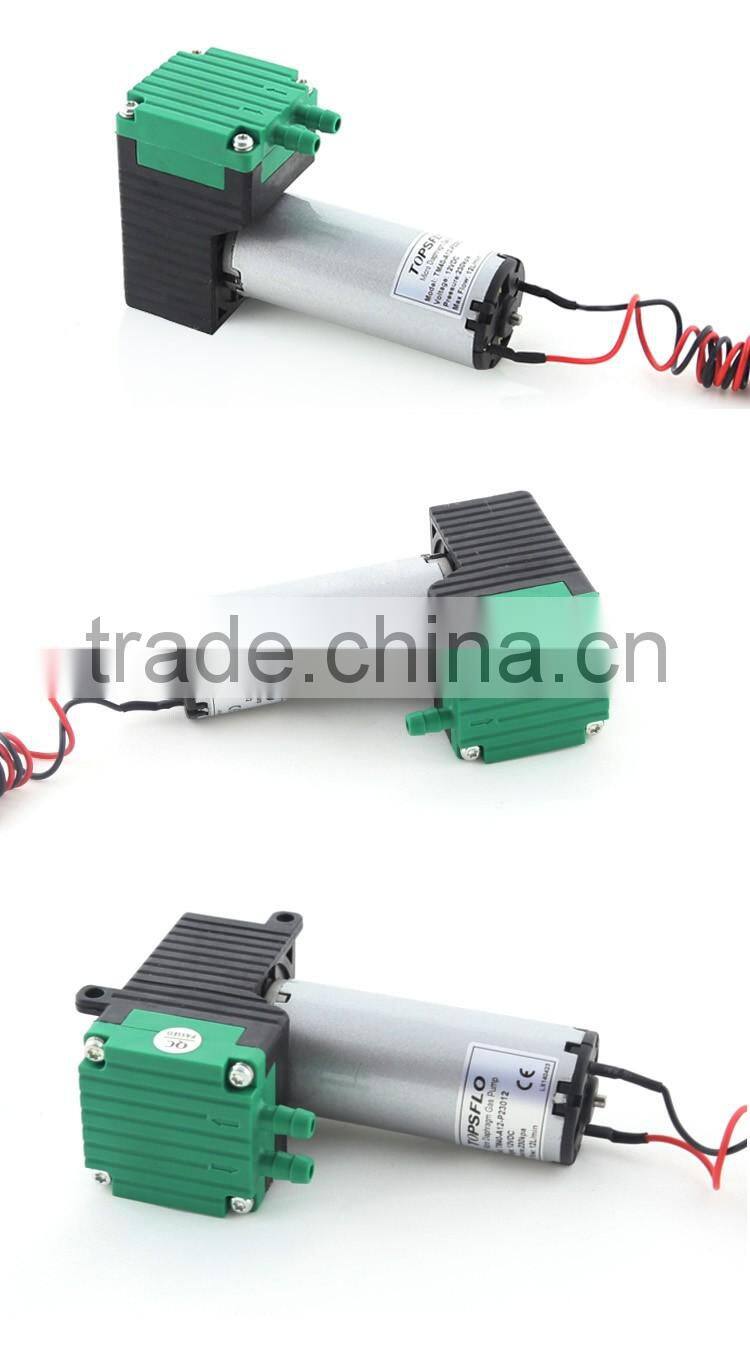

TOPSFLO Electric High Pressure Mini Diaphram Pump
TOPSFLO micro diaphragm pumps and compressors are based on a simple principal, the circular power from the motor is converted into oscillating movement by an eccentric, which moves up and down its central point, this motion is then transferred to a diaphragm by means of a connecting rod, an elastic diaphragm, which in conjunction with an inlet and outlet valve creates a pumping action.
The TM 40 Series offers multiple component configurations allowing them to be used for either vacuum operation, pressure operation, or alternating vacuum and pressure operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliabler, highly efficient.
TM 40 pumps can be mounted in any position and can deliver up to 10L/min
(dual head) depending on the model and will operate against pressures of up to 230Kpa.

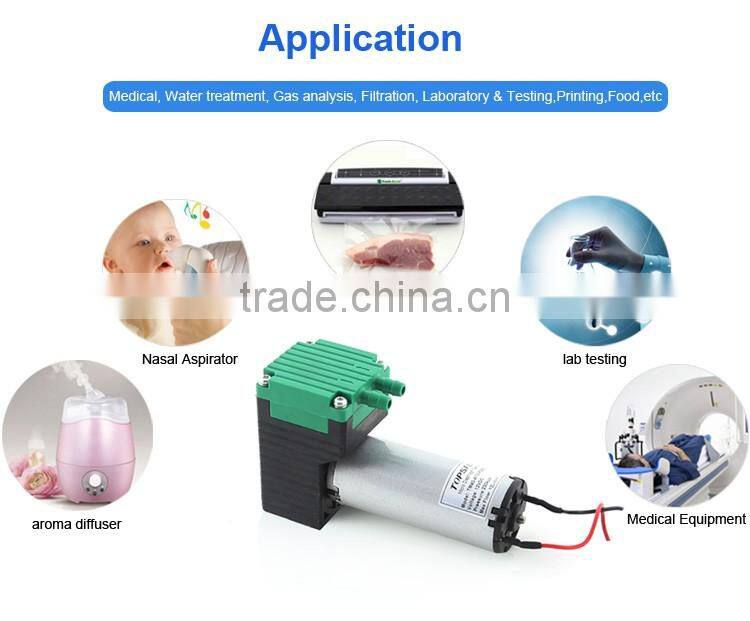

Typical Application
•Industrial pressure and vacuum applications •Portable Analytical Instruments
•Medical Diagnostic Equipment •Air Quality Sampling Monitors
•Respiration Monitors •Gas or Odor Leak Detectors
| Motor Type | Brush DC motor |
| Max flow rate | 10L/min |
| Max pressure | 180Kpa, Max vacuum:75Kpa |
| Voltage | 12V /24V |
| Ideal Life Time | 5000 Hours |
| Working Mode | Continuous or Interrupt |
| Functions | Can dry-running, Self-priming |
| Pump Theory | Diaphragm pump |
| Ambient Temperature | 41 to 158 F(5 to 70C) |
| Media: | Most Gases |
| Noise Class form 1M | 50dB /Max |
| Inlet | OD 6.5mm/ID 3.4mm |
| Outlet | OD 6.5mm/ID 3.4mm |
| Hose suggestion: | ID 5.0mm |

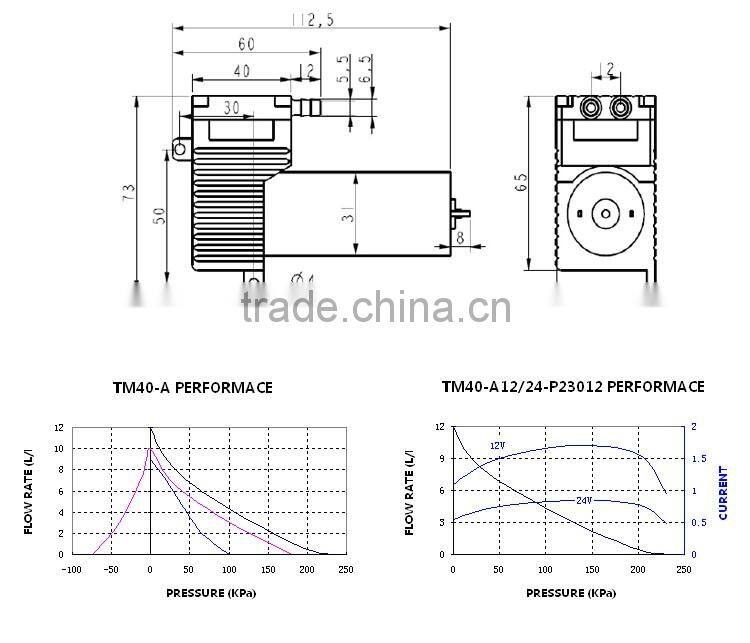

| Dimension | 120mm*40mm*65mm |
| Weight | 350 g |
| Materials | pump head Nylon membrane EPDM valve EPDM |
More Features:
More Vacuum Pump
|
|
|
|

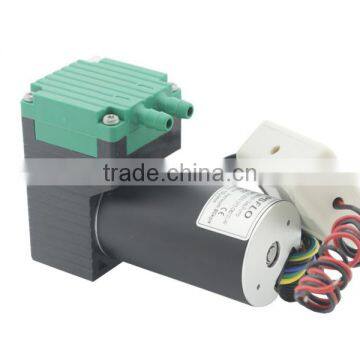

| TM40-B | TM40-C | TM40-F PWM 0-5V | TMD40-A |
|
PRESSURE 250KPA VACUUM -75KPA FLOW 13L |
PRESSURE 100KPA VACUUM -75KPA FLOW 10L |
PRESSURE 250KPA VACUUM -80KPA FLOW 10L |
PRESSURE 220KPA VACUUM -70KPA FLOW 17L |
