Electrical Medical Suction Pump

Name: Electrical Medical Suction Pump
Brand: TOPSFLO
SKU: 141359718
Availability: InStock

Negotiable MOQ: 200 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Vacuum Suction Devices

Brand Name:

TOPSFLO

Changsha TOPSFLO Micro Pump Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Type Vacuum Suction Devices

Brand Name TOPSFLO

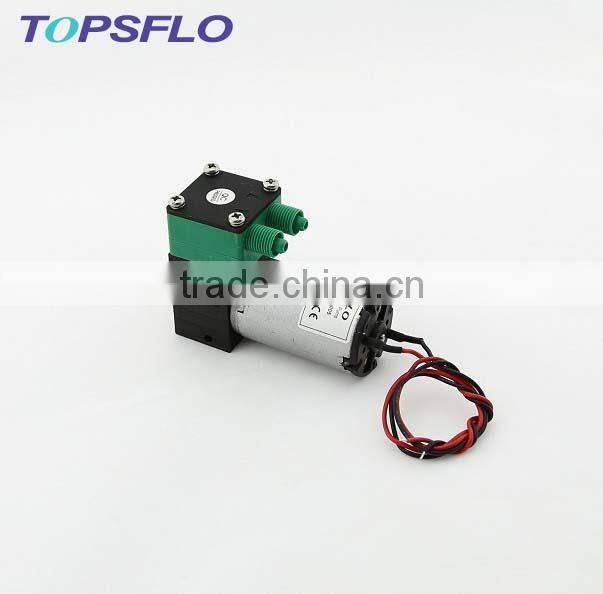

50~70kpa silent 12v electrical medical suction pump

Feature- electrical medical suction pump

1. Uncontaminated flow.

2. Non-metallic construction.

3. Oil-Free, Corrosion resistant

4. DC brushless motor, Long life,High efficiency,high performance brushless motor, has over 15,000 hours

5. Compact size, Low Weight

6. Low noise low noise<50dB

7. Maintaince free.

8. High level of water tightness thanks to the closed diaphragm surface and special sealing system.

9. Can operate in any installed position

10.Material:material that can resist the Ozone,PTFE membrance, FPM valve / silicon medical degree membrane

Specification- electrical medical suction pump

Model	Water Pump	Vacuum Pump	Rated Voltage	No-load Current	Max Pressure	Max Vacuum	Max Flow
	(Item Number)	(Item Number)	(Vdc)	(A)	(KPa)	(KPa)	(L/min)
	C10005 (lower noise 1M<45dB)	/	6 /12 / 24	1.8/1/0.6	100	/	5
GLP-M6		C7004	6 /12 / 24	1.8/1/0.6	/	-70	4
		C5505	6 /12 / 24	1.8/1/0.6	/	-55	5
" / W " means water pump, " / V " means vacuum pump, 3, 6, 9, 12, 24 means different voltages.
C type: weight 220g Materials: pump head Nylon, membrane EPDM / PTFE, valve EPDM / FPM .
Note: 1. super silent noise motor <50dB, *longer endurance lifetime than other normal membrane pump, motor long lifetime>3000hours.***

Applications- electrical medical suction pump
