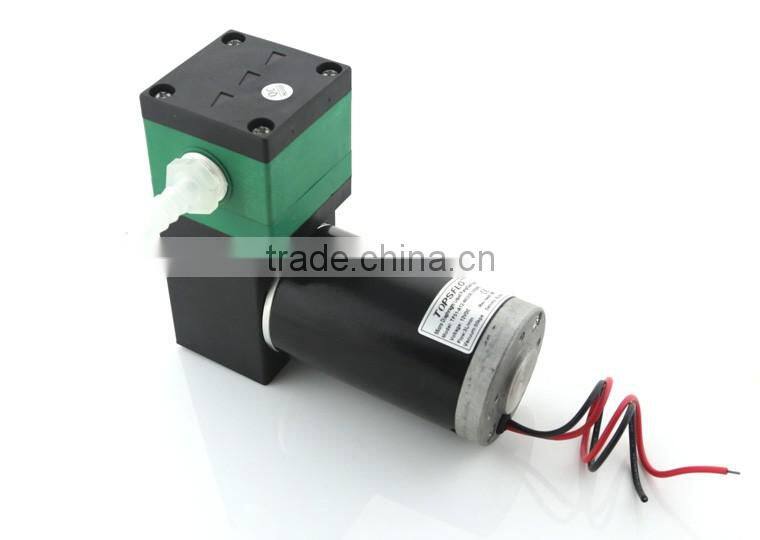

6/12/24v dental gas suction pump
The TF51 Series offers multiple component configurations allowing them to be used for either vacuum operation, liquid transfer, or alternating operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliabler, highly efficient.
TF 51 pumps can be mounted in any position and can deliver up to 3L/min depending on the model and will operate against pressures of up to 10M.
Brush DC Motor Membrane Water&Liquid Pump
Specification:
| Model | Water Pump | Vacuum Pump | Rated Voltage | No-load Current | Max Pressure | Max Vacuum | Max Flow |
| (Item Number) | (Item Number) | (Vdc) | (A) | ( M ) | (KPa) | (L/min) | |
| TF51 | TF51-A12-W0306 | TF51-A12-V5006 | 6 /12 / 24 | 2/1/0.65 | 6 | -50 | water :3 gas : 6 |
| " / W " means water pump, " / V " means vacuum pump, 6, 12, 24 means different voltages. | |||||||
|
Pump Weight:900g; Pump Size:130*117*51 mm; Inlet&Outlet:OD 10mm/ID 5mm,hose suggestion:ID 8mm
Materials: pump head Nylon, membrane EPDM / PTFE, valve EPDM / FPM .
Super silent noise<50dB from 1 Meter; | |||||||
| Motor type and code:“ A”means brush DC motor (long lifetime reference 3000hours) | |||||||
Technical features:
• Small and powerful
Micro design and maximum performance resulting from built-in technology are the outstanding characteristics of this product.
• Self-priming and excellent for pressure
Sophisticated diaphragm technology and precise valve structures enable performances from 8.85 in .Hg suction and 14.5 PISG pressure.
• Dry running, durable and maintenance free
The carefully considered design of these pumps allows them to be run dry and ensures safe operation and a long life even under the most severe conditions.
• Lasts Reliably Longer
Using the advanced diaphragm elastomer and superior brush motor design sets the highest benchmark for service-free operation that exceeds 10,000 hours.
• Uncontaminated flow
No contamination of the media due to oil-free operation
• Little vibration
Because of leading edge technologies, top quality bearing, superior brush motor
• High level of gas tightness
thanks to stress-optimised structured diaphragm, newly-designed valves and sealing systems, precise placement of the pump head
• Extreme chemical resistance
The use of chemically resistant materials optional such as PTFE FKM or other ,material combinations for the parts which allows the corrosive gas to be pumped.
• Optimal solution for your application
A wide standard range of materials, motors , voltages configurates multiple components system selected
Gas detection devices Sewage disposal
Patient Monitoring Wide-Format Printer
Blood Pressure Monitor Bio-Chemical Analyzer
Gas massage products Electrolyte
Lab equipment Beauty equipment
Microplate Washer Chemistry analysis
Airpler Vacuum transfer
Aatic Tourniquet Autoclave
Industrial vacuum applications
Portable Analytical Instruments
Medical Diagnostic Equipment
Environmental/water treatment,Food/ toxicology
Laboratory ,Cleaning industry,Printing,Fireplace
