Brushless Small Electric Instant Water Heater Pump

FOB Price

Negotiable / Piece

200 Pieces(Min. Order)

Port Shanghai Shenzhen
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	TOPSFLO	Model Number	TL-C01
Theory	Centrifugal Pump	Structure	Single-stage Pump
Usage	Water	Power	Electric
Standard or Nonstandard	Standard	Fuel	Other, DC power, Battery, Solar panel
Pressure	Other, 16L,20L	Application	Other, Liquid transfer or circulating

Product Description

Brushless Small Electric instant water heater pump

TOPSFLO Hot Sales

Product Description

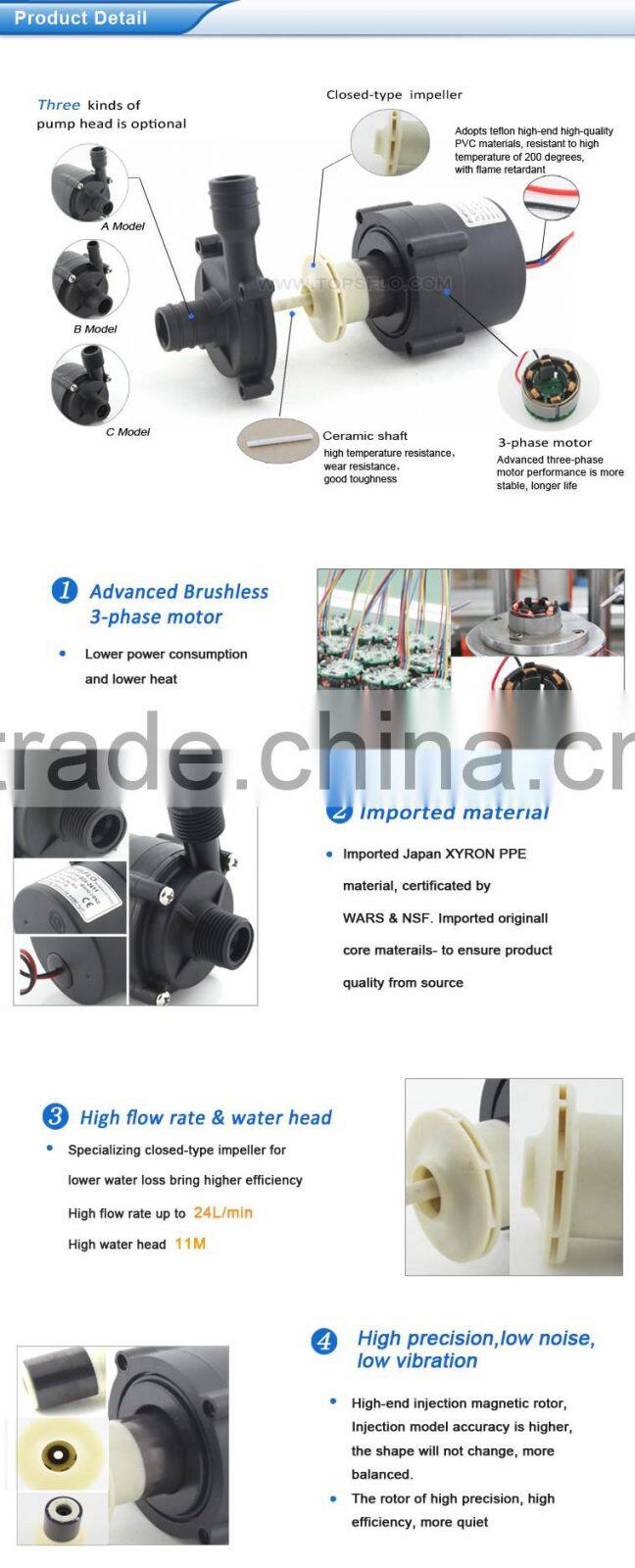

♦ Advanced magnetic driving technology for static-seal,without any leakage forever

♦ Heavy duty work,can sustain continuous work

♦ High efficiency ECM brushless DC motor with long lifetime 20,000hours

♦ 3-phase motor for lower power consumption and lower fever

♦ Durable permanent magnetic rotor/impeller and fine ceramic shaft

♦ Specializing closed-type impeller for lower water loss bring higher efficiency

♦ High precision one-time injection magnetic rotor for stable lower vibration

♦ High temperature materials for liquid temperature ≥90°C

♦ Low or no maintenance

♦ Food grade materials

♦Imported Japan XYRON PPE material, certificated by WARS & NSF.

Specification

Max Flow Rate	18L/MIN 22L/MIN
Max Static Lift	8M ,11M
Rated Voltage	12V / 24V
Impeller Type	Open impeller
Motor Type	Three-phase brushless DC motor
Food Grade(Y/N)	Y
Liquid Temperature	0-100°C
Pump Theory	Centrifugal pump
Ambient Temperature	-10-50°C
Media	Pure Water
Waterproof Class	IP42
Use Place	Indoor or Outdoor
Working Voltage Range	6~16V or 12~28V
Power Consumption	34W,48W
Noise Class form 1M	42dB /Max
Ideal Life Time	20000 Hours
Working Mode	Continuous
OD of Inlet	21 mm
OD of Outlet	11.5mm

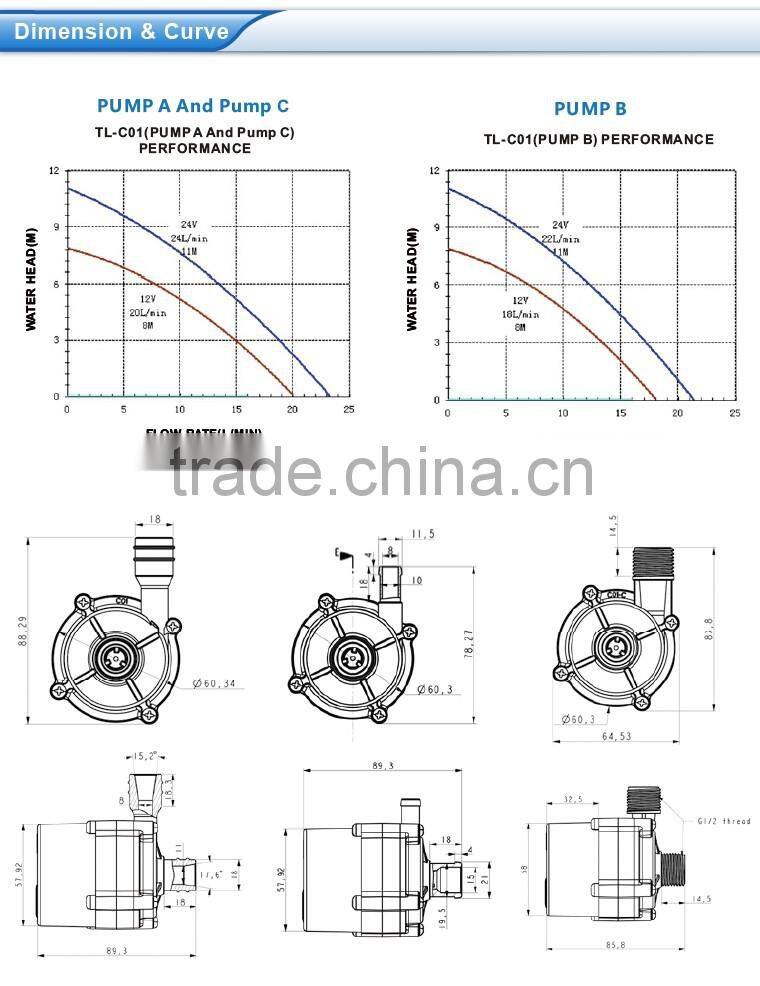

Dimension	89.3x60.34x57.92 mm
Power Supply	DC power supply, battery, solar powered
Flow Rate Regulation	(customized functions) 1.PWM, 0~5V speed control, 2.submersible lar panel driven directly 4.FG(RPM) signal wire
Remarks	Can’t dry-running, not Self-priming
The technical parameters above is only for your reference, for more details , please feel free to contact us.

Model	Product Code	Max Water Flow (L/Min)	Rated Voltage(DC)	Rated Current (A)	Max Water Head(M)	Rated Power(W)
	TL-C01H-A12-1706	17±15%	12VDC	2.2±15%	6±1	26.4
	TL-C01H-B12-1606	16±15%	12VDC	2.2±15%	6±1	26.4

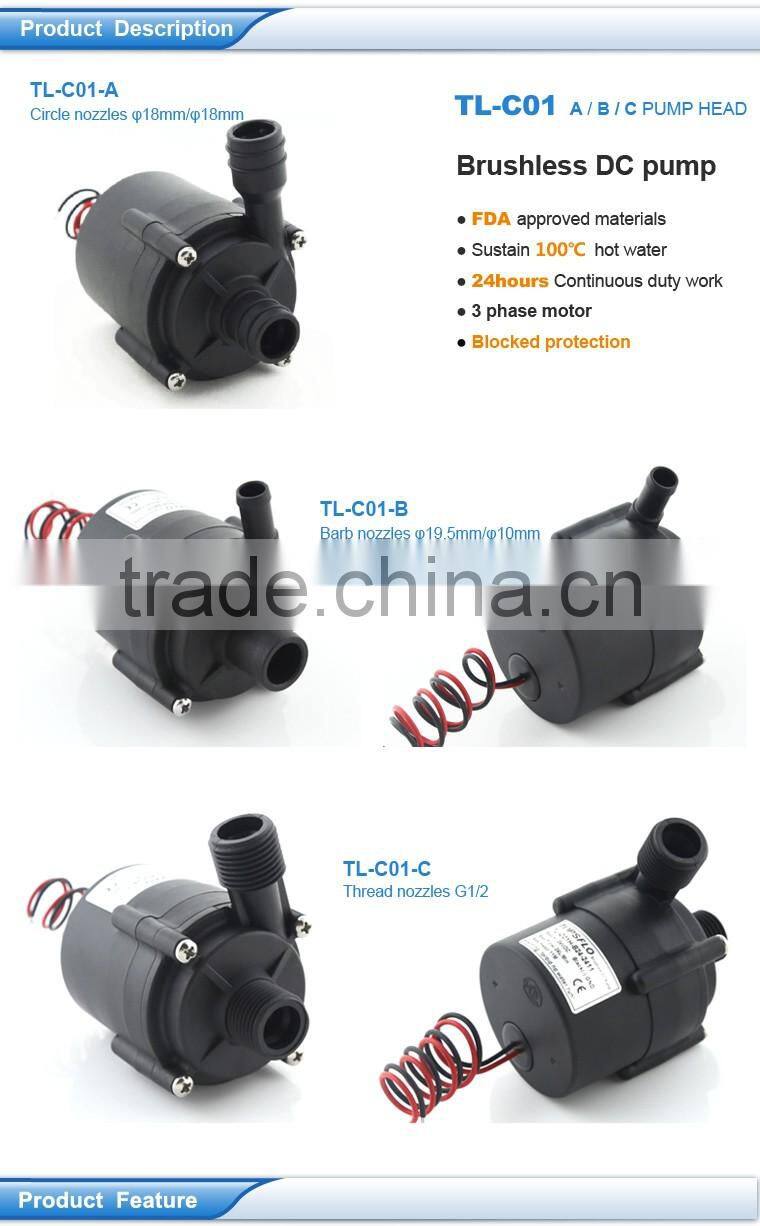

TL-C01-A	TL-C01H-C12-1706	17±15%	12VDC	2.2±15%	6±1	26.4
circle nozzles	TL-C01H-A24-1908	19±15%	24VDC	1.5±15%	8±1	36
φ18mm/φ18mm	TL-C01H-B24-1808	18±15%	24VDC	1.5±15%	8±1	36
	TL-C01H-C24-1908	19±15%	24VDC	1.5±15%	8±1	36

TL-C01-B	TL-C01-A12-2008	20±15%	12VDC	2.8±15%	8±1	34
barb nozzles	TL-C01-B12-1908	19±15%	12VDC	2.8±15%	8±1	34
φ19.5mm/φ10mm	TL-C01-C12-2008	20±15%	12VDC	2.8±15%	8±1	34
	TL-C01-A24-2411	24±15%	24VDC	2±15%	11±1	48
	TL-C01-B24-2211	22±15%	24VDC	2±15%	11±1	48
	TL-C01-C24-2411	24±15%	24VDC	2±15%	11±1	48

	TL-C01/5V-A24-2411	24±15%	24VDC	2±15%	11±1	48
	TL-C01/5V-B24-2211	22±15%	24VDC	2±15%	11±1	48
	TL-C01/5V-B24-2411	24±15%	24VDC	2±15%	11±1	48
	special Instant Water Heater pump with additional 0~5V wire for PWM speed adjustment function ( at 0V not working, at 5V run on full speed )

TL-C01-C	TL-C01/S/PV-A12-2008-W	20±15%	12V (7V~24V)	2.8±15%	8±1	34
thread nozzles G1/2	TL-C01/S/PV-B12-1908-W	19±15%	12V (7V~24V)	2.8±15%	8±1	34
thread nozzles G1/2	TL-C01/S/PV-C12-2008-W	20±15%	12VDC	2.8±15%	8±1	34
	TL-C01/S/PV-A24-2411-W	24±15%	24V (14V~32V)	2±15%	11±1	55
	TL-C01/S/PV-B24-2211-W	22±15%	24V (14V~32V)	2±15%	11±1	55
	TL-C01/S/PV-C24-2411-W	24±15%	24VDC	2±15%	11±1	55
	special submersible pump with 1.5M cable wire, can be powered by solar panel directly,rated 12/24V, used as submersible liquid should be ≤50°C.

Note: 1.pump itself meet: /F,food grade 2. /H type liquid≤100°C, not H normal type liquid≤70°C 3. /S type can be customized, if submersible liquid should be ≤50°C

1. Liquid transfer general purpose pumping 2. Hot water circulating system
3. Electronics Cooling Water Circulation Chiller Systems
4. Liquid filling and transfer in food, beverage processing, vending machines
5. Instant electric water heater, electric shower.

6. Circulating systems for homes, RV's and boats
7. Cleaning equipment, purification and water treatment.
8. Irrigation solar pump, swimming pool circulation
9. Electric cars: radiators, heaters 10. Automotive air conditioning

11. Computer CPU cooling circulation 12. Water heating mattress
