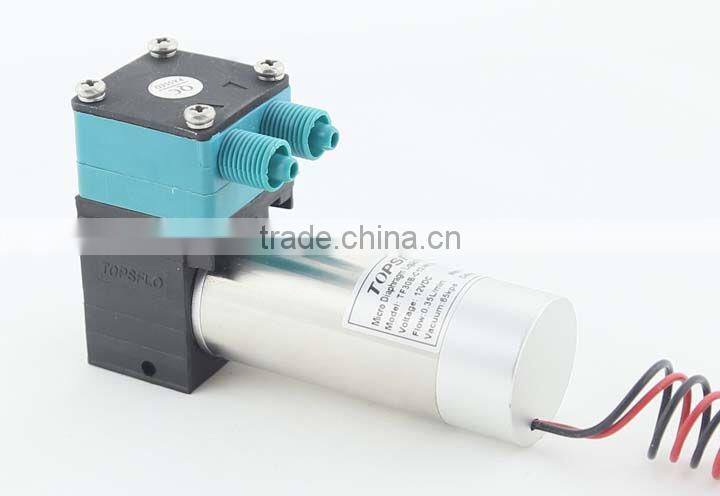

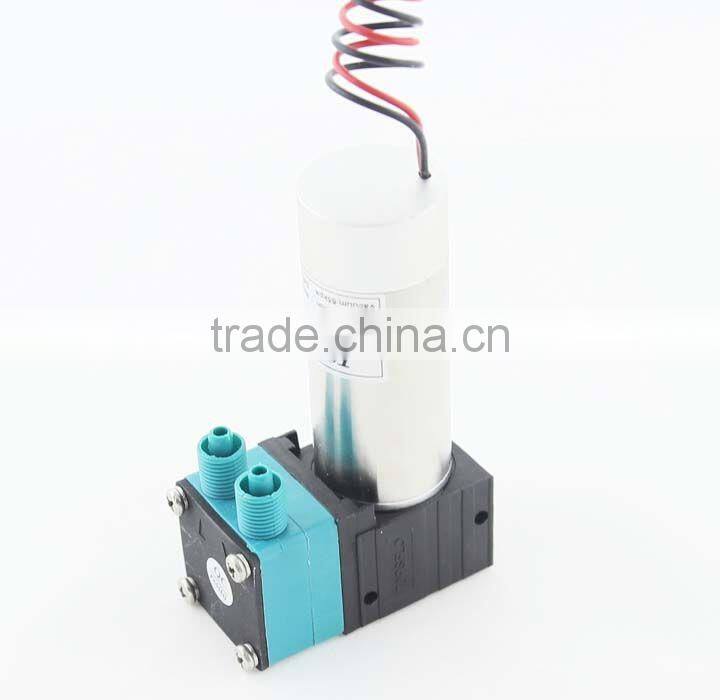

6v 12v 24v dc brushless liquid pump for High Dose HD therapy
Product Description
Specification:
| Model | Pressure Pump | Vacuum Pump | Rated Voltage | No-load Current | Max Head | Max Vacuum | Max Flow |
| (Item Number) | (Item Number) | (Vdc) | (A) | (M) | (KPa) | (L/min) | |
| TF30B-C | TF30B-C12-W1003(inside controller) |
TF30B-C12-V6504 |
6/12/24 | 0.4/0.24/0.15 | ≥10 | -65 |
water: 0.35 gas: 4.5 |
| TF30B-D | TF30B-D12-W1003 (outside controller) |
TF30B-D12-V6504 ( outside controller) |
6/12/24 | 0.4/0.24/0.15 | ≥10 | -65 |
water: 0.35 gas: 4.5 |
|
" W " means water/liquid pump, " / V " means vacuum pump, "6/12/24" means different voltages optional.
| |||||||
| Pump Weight:250g; Pump Size:80mm*31mm*60mm; Inlet&Outlet with locknut:OD 4.9mm/ID 2.8mm,hose suggestion:ID 4.0mm | |||||||
| Super silent noiseMaterials:pump head Nylon, membrane EPDM / PTFE, valve EPDM / FPM Note:other water flow rates of 0.05L/0.15L/0.2L/0.3L can be customized as requirements. C- inside controller type D- outside controller type | |||||||
| Motor type and code:"C"means Coreless brushless DC motor with dual ball bearings (long lifetime>15,000hours) "D"means Coreless brushless DC motor with dual ball bearings + outside controller (long lifetime>15,000hours);pump with outside controller can realize functions of PWM 0~5V speed adjustment, brake, instant starting work ; inner controller is no additional functions. | |||||||
Product Feature

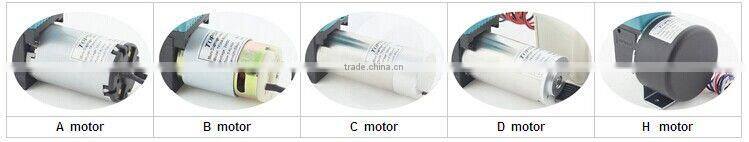

Our Micro Diaphragm Pumps are available with a choice of four different drive motors.
A- Premium duty brush DC motor
lifetime 5,000hours,longer endurance lifetime than other normal DC membrane pump
B- Economical brush DC motor
lifetime:1,500hours
C- Coreless Brushless DC Motor
A brushless electronically commutated dc motor (electronics integrated in motor), the motor runs vibration and spark free, almost silently, is very dynamic and extremely durable, ideal life-time 15000 hours
D- Coreless Brushless DC motor with outer controller
With all advantages of coreless brushless DC motor, ideal life-time 15000 hours, and outer controller can realize more control functions of PWM or 0 -5V speed adjustment, brake, ~ instant starting work
H- Brushless DC Motor
Long lifetime 10000hour
Application:
The versatility of TOPSFLO pumps allows a wide field of applications to be covered. Over many years our pumps
have proved themselves in the following areas:
Industrial liquid and vacuum applications
Portable Analytical Instruments
Medical Diagnostic Equipment
Printer ink machine
Fireplace
Respiration Monitors
Packing Detail
Company Information
Certificate
air pump
If you are unsure which pump is best suited to you needs, please give us some information on your intended use and the plumbing configuration, and we will be happy to advise. We aim to ensure customers get what they need, and we won't try and sell you something that is not suited to your requirements!
