Home > Products > Food & Beverage > Continuous Operation Light Weight Low Noise Juice Drinking Processing Machine Pump

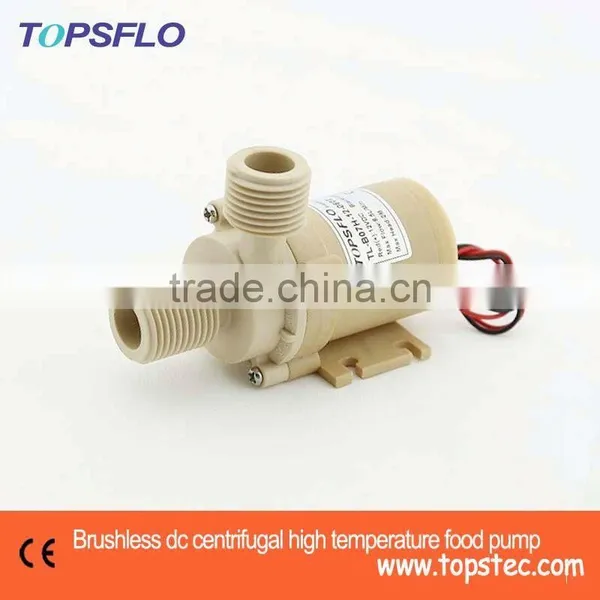

Continuous Operation Light Weight Low Noise Juice Drinking Processing Machine Pump

FOB Price

Negotiable / Piece

10 Pieces(Min. Order)

Port Shanghai Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	TOPSFLO	Model Number	TL-B07
Theory	Centrifugal Pump	Structure	Single-stage Pump
Usage	Water	Power	Electric
Fuel	Other, DC power, Battery, Solar panel	Pressure	High Pressure
Application	Other, Liquid transfer or circulating

Product Description

continuous operation light weight low noise juice drinking processing machine pump

Feature

1.The product Mainly used in hot water circulation system, Juice machines,drinking water,coffee machine.food grade pump

2. Life: advanced magnetic drive technology to avoid the traditional rotor friction, can realize long lifetime more than 20,000 hours .

3. Low noise: ≤35dB, at 1 meter distance.
4. Working Way: The product is a brushless magnetic drive, 24 hours of continuous work.
5. Working conditions: Applying to indoor and outdoor under temperature 40degC.
6. High temperature:100°C. PPS materials pump head can withstand high water temperature 100 Celsius.
7. All wetted materials are food grade compliant.
8. Advanced magnetically coupled technology & inner parts are fully sealed, without any leakage for ever

Application
1. Hot water circulating system;

2. Remote area fluid handling

3. Process temperature control

4. Water or oil cooling circulating system

5. Circulating systems for homes, RV's and boats

6. Fuel cell systems

7. Oxygen generating systems

8. Juice machines

9. Aquariums and ponds

10. Vending machines

Specification

Model	Product Code	Max Flow Rate (L/M)	Rated Voltage (DC)	Current (A)	Max Water Head (M)	Power (W)
	TL-B07H-12-0602	6.5L	12VDC	0.5	2	6
	TL-B07H-12-0803	8L	12VDC	0.75	3	9
TL-B07H	TL-B07H-24-0602	6.5L	24VDC	0.25	2	6
TL-B07HA	TL-B07H-24-1205	12L	24VDC	0.8	5	19.2
	pump itself meet: /H /F /PV (high temperature 100 degree celsius / food grade / solar panel driven )
	can be customized: /S (submersible )

Dimension(mm) 1 inch=25.4mm

Picture show

Why choose us?

1.We are china leading micro pump,dc pump manufacture..We have over 10years rich experience in micro pump field

2.We have Senior & experienced product design, pump, mould engineers

3.OEM & ODM capacity

4.100% QC inspection before shipping

5.R&D,QC,Technical,Logistics,Documents,etc.Departments make sure the best quality and the most timely service.

Customer Reviews

QFA

Q.Are you a factory or trading company?

Absolutely, we're a Mico DC pump factory.

Q.Can i get some sample?

We are honored to offer you sample.

Q.How does your factory do regarding quality control?

quality is priority ,we always attach great importance to quality controlling from to the very end.our factory has gained CE,SGS AUTHENTICATION
