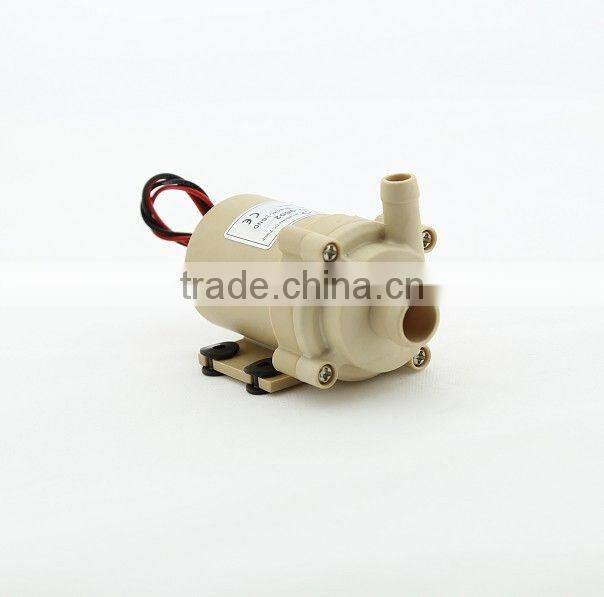

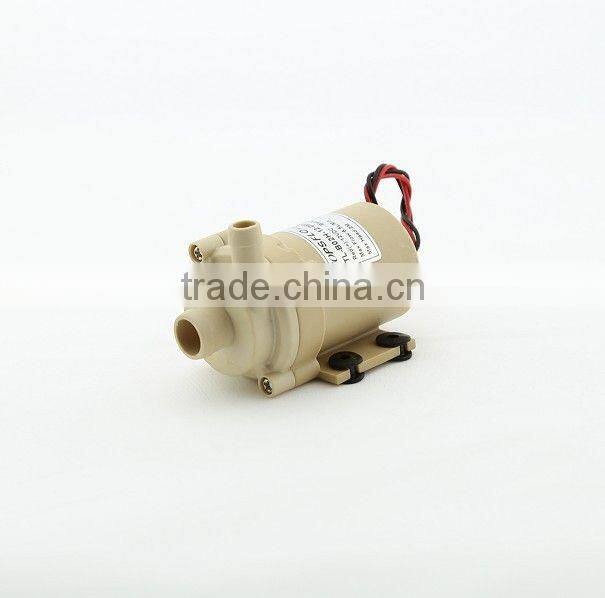

High Temperature FDA Backpack Drink Dispenser Pump

High Temperature FDA Backpack Drink Dispenser Pump thumbnail-1
High Temperature FDA Backpack Drink Dispenser Pump photo-1
Negotiable MOQ: 200 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer, Trading Company
Year Established:
2011
Factory Size:
3,000-5,000 square meters
Contact Supplier Request Quote Chat Now
Changsha TOPSFLO Micro Pump Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

high temperature FDA backpack drink dispenser pump



Product Description



1. Small size,dc brushless motor
2. Life: magnetic drive way more advanced to avoid the traditional rotor friction, longer life can be more than 30,000 hours of life.
3. Low noise: ≤35dB, at 1 meter distance.
4. Working Way: The product is a brushless magnetic drive, 24 hours of continuous work
5. High temperature:100°C.
6. Advanced magnetically coupled technology, without any leakage for ever
7. Low power consumption.Low or no maintenance
8. Material: Durable magnetic rotor and fine ceramic shaft.
9. It can be customized according to customer`s technical requirements.

     .pump itself meet : high temperature 100°C,  food grade,   solar panel driven

    .the product TL-B02H can be customized: submersible



Caution: Pump chamber without liquid is best not to prolonged idling the pump cavity liquid idling.





Other Application:



1. Hot water circulating system;

2. Remote area fluid handling

3. Process temperature control

4. Water or oil cooling circulating system

5. Circulating systems for homes, RV's and boats

6.  Fuel cell systems

7.  Oxygen generating systems

8.  Juice machines

9. Aquariums and ponds

10.  Vending machines and so on.





Dimension  (mm)  1'inch=25.4mm



high temperature FDA backpack drink dispenser pump

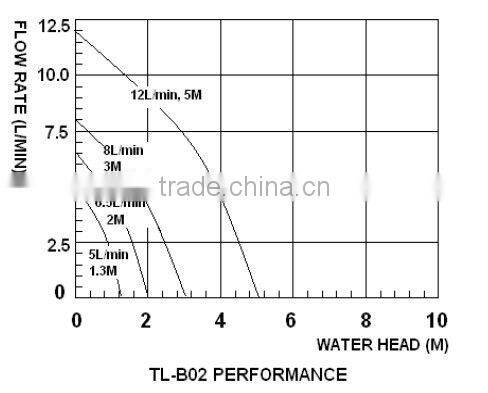

Model Product Code Max Flow Rate (L/M) Rated Voltage (DC) Current (A) Max Water Head (M) Power (W)
  TL-B02H-12-0501 5L 12VDC 0.3 1.3 3.6
  TL-B02H-12-0602 6.5L 12VDC 0.46 2 5.5
TL-B02H TL-B02H-12-0803 8L 12VDC 0.76 3 9.2
TL-B02HA TL-B02H-24-0602 6.5L 24VDC 0.3 2 7.5
  TL-B02H-24-1205 12L 24VDC 0.8 5 19.2
  pump itself meet: /H /F /PV  (high temperature 100°C / food grade / solar panel driven )
  can be customized: /S  (submersible )
