12V 24V DC Gear Cold Beverage Dispensing pump
- 100000 Piece / Pieces per Month
- Shanghai Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Brand Name: | TOPSFLO | Model Number: | TG-02 | Theory: | Rotary Pump |
Structure: | Gear Pump | Usage: | Other, Water, oil, various liquid | Power: | Electric |
Standard or Nonstandard: | Standard | Fuel: | Other, DC power, Battery | Pressure: | High Pressure |
Application: | Other, Various liquid transfer or boosting |
Product Description
12V 24V DC Gear Cold Beverage Dispensing pump
Product Description
1. Working principle :dc gear pump
2. Structure: gear structure; wear-resistant, corrosion-resistant
3. The products use brush motors, Products using the brush motor driver, small size,high pressure
4. Fluid : A variety of liquid and oil
Temperature: -10 °C ≤ T ≤ 100 °C (except for the freezing)
5. Material: PPS gears, PPS pump head
6. Applicable to the interruption media transmission
Product Features

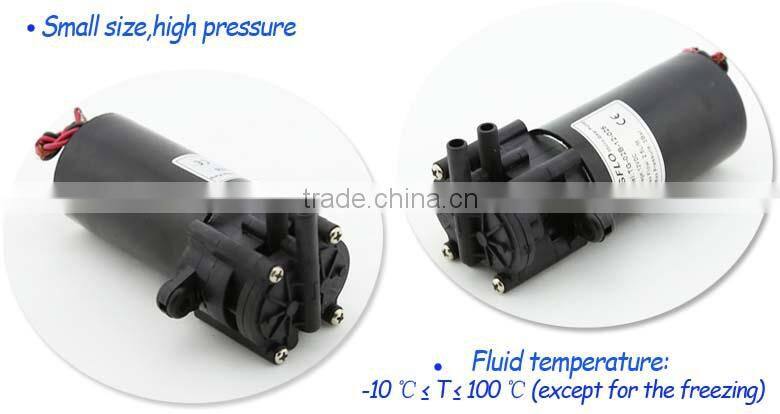

Small size, high pressure
Excellent self-priming,
Smooth, Pulseless Delivery
Easy to Service
Chemical resistance
DC Motor drive.
Other Application areas
Widely used sanitary ware,,spray,ice-making machines,drinking fountains,lab,Humidifier, medical equipment,Food Grade, etc.

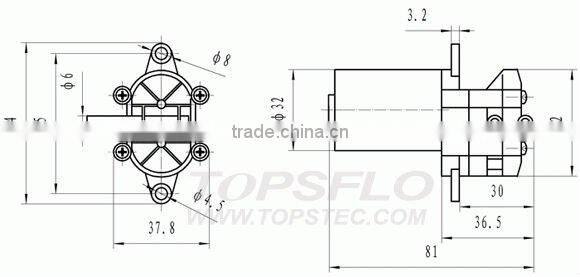

Dimension (mm) 1 inch=25.4mm
Specification:
Model | Item Number | Max Flow (L/Min) | Max Pressure (Bar) | Rated Voltage (V) | Voltage Scope (V) | Power (W) | Suction Height ( M) |
TG-02S-12-017 | 1.7 | 1.5 | DC12 | 5~14 | 12 | 0.3M | |
TG-02S | TG-02S-24-017 | 1.7 | 1.5 | DC24 | 8~26 | 12 | 0.3M |
TG-02S-24-03 | 3 | 3 | DC24 | 8~26 | 20 | 0.5M | |
TG-02B-12-015 | 1.5 | 2 | DC12 | 5~14 | 35 | 0.4M | |

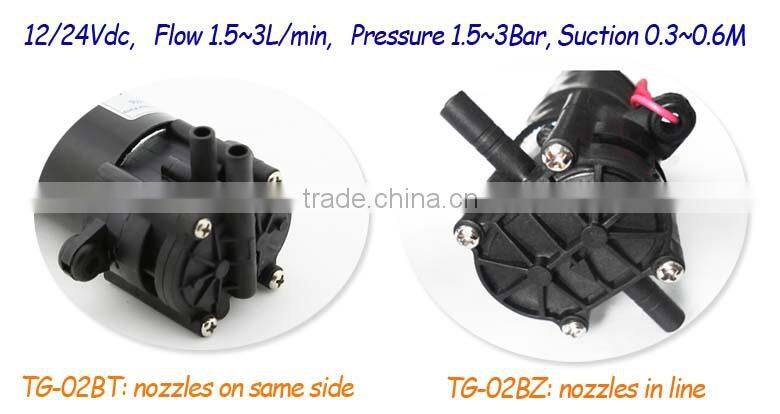

TG-02BT | TG-02B-12-025 | 2.5 | 3 | DC12 | 5~14 | 40 | 0.6M |
TG-02BZ | TG-02B-24-015 | 1.5 | 2 | DC24 | 8~26 | 35 | 0.4M |
TG-02B-24-025 | 2.5 | 3 | DC24 | 8~26 | 40 | 0.6M |
Note:
1. TG-02S and TG02B with the same pump head, in motor size TG02B a little bigger with length of 104mm,width of 38mm.
2. TG02B lifetime reference is 800hours, TG02S lifetime reference is 400hours.
3. TG02B noise slightly slower.
