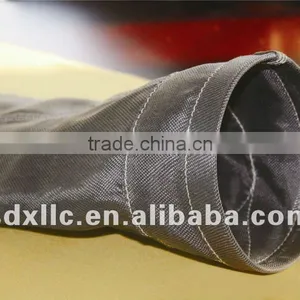

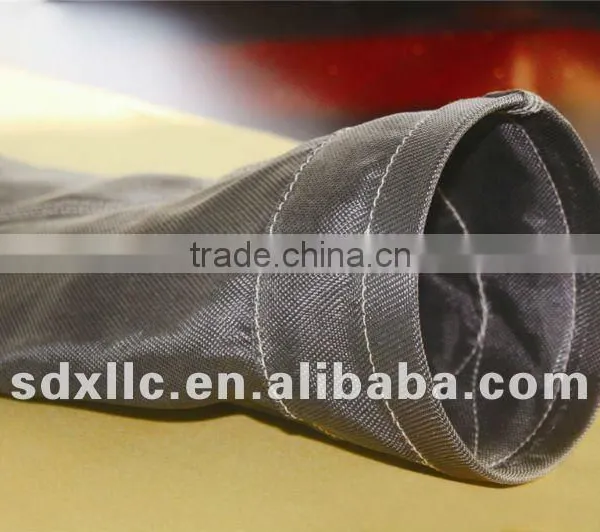

Help CenterWoven Fiberglass Pulse Jet Filter Bag With PTFE Membrance
Related Products
-
Fiberglass Filter Fabric/filter Media With Graphite,silicone Oil,ptfe/teflon for Bag FiltersUS$ 2 - 100MOQ: 200 Square Meters -
Fiberglass Woven Fabric/filter Bag With Silicon Oil and Ptfe/teflon for Dust CollectorUS$ 2 - 100MOQ: 100 Square Meters
-
Fiberglass Filter Bag Dust CollectorUS$ 2 - 100MOQ: 200 Square Meters
-
Fiberglass Woven Fabric With Antiacid Treatment Use for Chemical PlantUS$ 10 - 20MOQ: 500 Square Meters
-
300mm x 12mtrs Fiberglass Air Reverse Dust Filter Bag Used in Cement ProductionUS$ 2 - 9MOQ: 200 Square Meters
Specifications
1.fiberglass woven filter bag2..acid resistant,anti corrosion
3. Good quality strand.
4. High tempreture reisitant
Fiberglass filter fabric cloth (filter bags)
Fiberglass flat filter cloth (bags) is a woven glass fabric with special finish, it is early research and development of glass fiber filter materials, high temperature filter media is also currently the leading market products. There are varieties of Crowfoot, denim-breaking, satin,twill and so on, the fabric surface by special treatment, made of high temperature, corrosion resistance of the filter material, is widely used in industry to catch dust, the recovery of valuable industrial products, industrial smoke and dust pollution treatment.
Continuous glass fiber filter cloth (bag) is suitable for filter cloth (bag) in the middle of the frame with no filter cleaning (anti-smoking) or air bags reduced the various cleaning bag filter.
According to the thickness of the fabric, filtering speed control in general 0.5m/min below. The speed is too high to easily filter cloth (bag) a bad blow, or filter through. In cement, ferrosilicon industry to promote more with the same thickness of the yarn expanded filter cloth (bag) compared to cheaper prices.
1.the working temperature is 200~260deg C, the Max temperature is 290 deg C,
2.the weight is 350~ 830g/sqm
3.Air permeability is 15~35 m3/m2/min( if with PTFE membrane the data would be lower)
4.Breaking Strength-MD : ≥3500
5.Breaking Strength-CMD: ≥3000
6.Finishment: silicon, graphite and telfon treatment.
Specifications
filter bag
1.High temperature surface:280~320 deg C
2.Graphite and silicone oil impregnated
3.Factory manufacturer
4.ISO9001
Specifications of filter bag / pulse jet filter / reverse air dust collector :
polyester pulse jet dust bag air reverse filter bag
fiberglass material filter bag
reverse dust collector
pocket filter
| High Temperature | Woven Fiberglass | ||
| Specification | |||
| Warp | US glass system | DE75 1/2 | |
| Tex system | EC6 66x2 | ||
| Weft | US glass system | DE75 13(T) | |
| Tex system | EC6 66x3(T) | ||
| Thread Count | No./inch | 44x24 | |
| No./cm | 17.5x9.5 | ||
| Weight | oz/sq.yd | 14 | |
| g/sqm | 450-500 | ||
| Weave Pattern | 1/3 twill | ||
| Finish | PTFE, graphite, silicone finished | ||
| Loss on ignition | ≥2 | ||
| Tensile Strength | Warp | lbs/inch | ≥440 |
| N/25mm | ≥2000 | ||
| Weft | lbs/inch | ≥264 | |
| N/25mm | ≥1200 | ||
| Air Permeability | cfm | 40-72 | |
| cm³/cm²/s.127pa | 20-36 |
||
