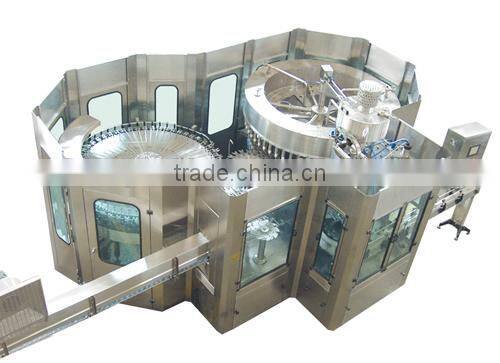

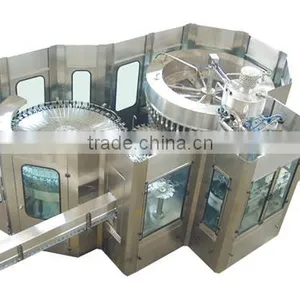

Automatic 3 In 1 Monoblock Mineral Water Filling Machine
Lonhon QGF series mineral water filling machine and packaging machinery is a self-developed new product by our R&D department to meet the requirement of multi-usage demands for our customers. The water filling machine is consisted of ringsing-filling-caping all together. It can fill mineral water, pure water and distill water etc. Lonhon QGF water filling machine adpots the suspension design. It allows the machine to fill different type of the bottles. It is normally used as drinking water filling machine. However, it can also be used for fill PET bottle with fruit juice and tea at high temperature by simply change tha valve. It can be connected with our others machines to form the water filling machine and packaging machinery production line.
1) Feature
- Advanced human-machine interface control. High quality international name brand key components
- Suspension bottle neck catcher structure allows the machine change the bottle type easily. By changing the valves, it also can be used as hot filling machine
- Spring type rinsing catcher can wash both inside and outside of the bottle
- High accuracy pressure water filling mechanism, ensure the height and quatity of the water filling
- Magnetic powered cap device ensures tightness and prevents damage of the caps
- Quiet, rotary cap unscrambler will not damage caps. Photoelectric sensor detect missing caps thus eliminating uncapped bottle spillage
- Built-in safeguard mechanism ensures the safety of operator and machine.
- High efficient air clean filter system ensures high sanitary requirements
- Low overall machine noise
- Self-lubricating system imported from America provides continuous smooth operation
2) Technical Parameter
| CGF18-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 | CGF50-50-15 |
Productivity | 1500-4000 BPH | 3000-8000 BPH | 3000-12000 BPH | 4000-18000 BPH | 6000-18000 BPH | 8000-24000 BPH |
Rinsing Head | 18 | 18 | 24 | 32 | 40 | 50 |
Water Filling Head | 12 | 18 | 24 | 32 | 40 | 50 |
Capping Head | 6 | 6 | 8 | 10 | 12 | 15 |
Bottle Volume | 350ml~2000ml±10ml | 350ml~2000ml±10ml | 350ml~2000ml±10ml | 350ml~2000ml±10ml | 350ml~2000ml±10ml | 350ml~2000ml±10ml |
Bottle Diameter | φ50-90 mm | φ50-90 mm | φ50-90 mm | φ50-90 mm | φ50-90 mm | φ50-90 mm |
Bottle Height | 150-310 mm | 150-310 mm | 150-310 mm | 150-310 mm | 150-310 mm | 150-310 mm |
Filling Tolerance | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
Cap Size | 28mm and 30mm PE Standard Caps | 28mm and 30mm PE Standard Caps | 28mm and 30mm PE Standard Caps | 28mm and 30mm PE Standard Caps | 28mm and 30mm PE Standard Caps | 28mm and 30mm PE Standard Caps |
Air Pressure | 0.5 MPa | 0.5 MPa | 0.5 MPa | 0.5 MPa | 0.6 MPa | 0.5 MPa |
Air Consumption | 500 L/min | 500 L/min | 500 L/min | 500 L/min | 500 L/min | 500 L/min |
Filling Water Consumption | 1.5 m3/h | 3 m3/h | 6 m3/h | 7.5 m3/h | 9 m3/h | 9 m3/h |
Rinsing Water Consumption | 0.5 m3/h | 1 m3/h | 2 m3/h | 2.5 m3/h | 3 m3/h | 3 m3/h |
Motor Power | 3.5kW | 3.5kW | 4kW | 7.5kW | 7.5kW | 7.5kW |
Voltage | 380V | 380V | 380V | 380V | 380V | 380V |
Dimension | (L×W×H) 2700×1600×2750mm | (L×W×H) 2816×1883×2340mm | (L×W×H) 3194×2054×2560mm | (L×W×H) 3937×2846×2560mm | (L×W×H) 4940×3755×3200mm | (L×W×H) 4940×3840×3200mm |
Weight | 2500kg | 3000kg | 5300kg | 8000kg | 12000kg | 13000kg |
Filling Principle | Gravity Filling | Gravity Filling | Gravity Filling | Gravity Filling | Gravity Filling | Gravity Filling |

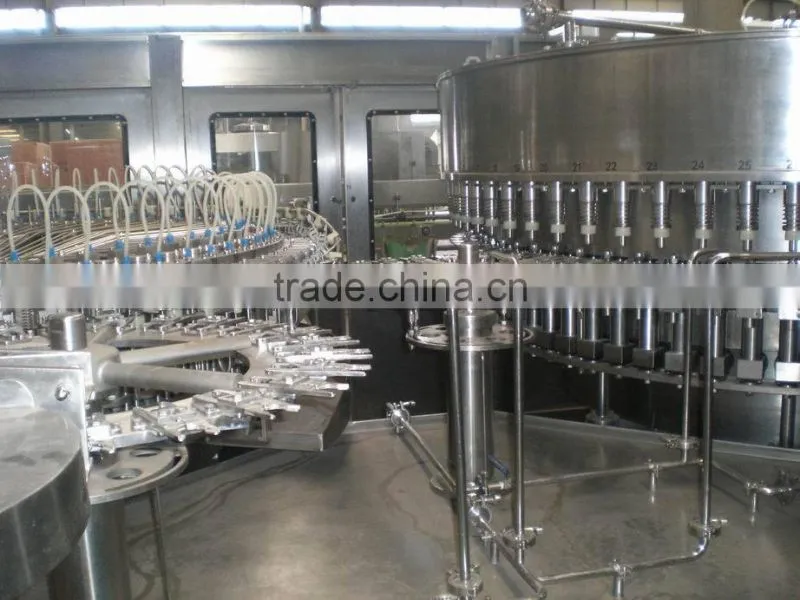

Rinsing-Filling-Capping 3 in 1 Mineral Water Filling Machine
