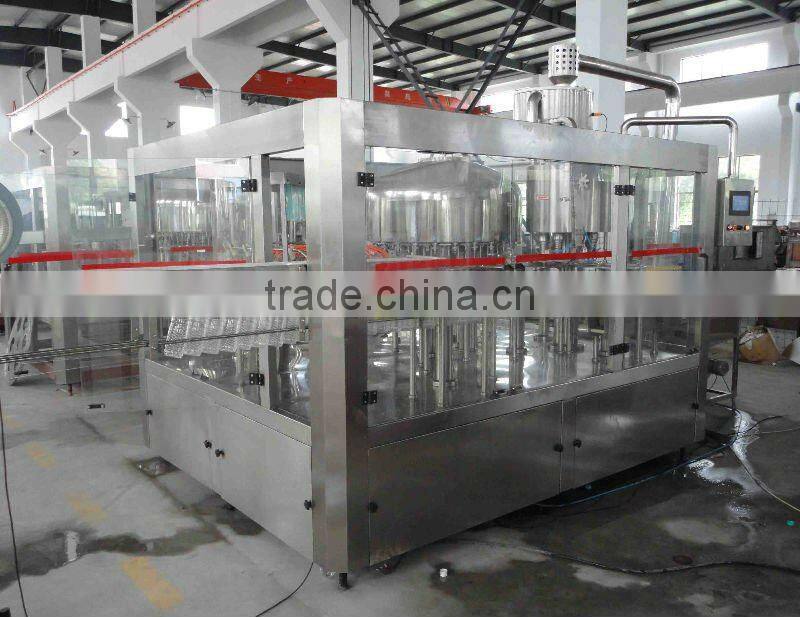

Complete Drinking Water Plant
(1) This water bottling plant is mainly used for washing, filling and capping PET bottle which can fill non- carbonated drinks such as mineral water, pure water, wine and so on.
(2) Bottle washing, filling and capping of the water bottling plant are achieved in one machine.
(3) The contact time is shorten between material and the outside. And improved the health conditions, production capacity and economic benefits.
(4) CGF series water bottling plant adopts hanging type conveying-bottle structure to make changing bottle mold more convenient, faster and more laborsaving.
(5) The main machine of the water bottling plant adopts advanced PLC control technology. The key electric elements adopt Mitsubishi, Omron, Siemens, etc international famous products.
Technical Data Of Water Bottling Plant
Model | CGF 8-8-3 | CGF 12-12-5 | CGF 16-12-6 | CGF 18-18-6 | CGF 24-24-8 | CGF 32-32-10 | CGF 40-40-12 | CGF 50-50-15 |
Washing No | 8 | 12 | 16 | 18 | 24 | 32 | 40 | 50 |
Filling No | 8 | 12 | 12 | 18 | 24 | 32 | 40 | 50 |
Capping No | 3 | 5 | 6 | 6 | 8 | 10 | 12 | 15 |
Production Capacity(500ml) | 2000 BPH | 3000 BPH | 4000 BPH | 6000 BPH | 10000 BPH | 12000 BPH | 16000 BPH | 24000 BPH |
Install Capacity(KW) | 3.0 | 3.5 | 3.5 | 4.0 | 4.8 | 7.6 | 8.3 | 9.6 |
Total weight (kg) | 1500 | 2200 | 2500 | 3500 | 5500 | 8000 | 10000 | 12000 |
Overall size | 1900*1420*2000 | 2200*1600*2300 | 2450*1800*2400 | 2650*1900*2400 | 2900*2100*2400 | 4100*2400*2400 | 4550*2650*2400 | 5450*3210*2400 |
A) Water Bottling Plant--Washing Part
l All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean
l 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
l 304 stainless steel washing pump

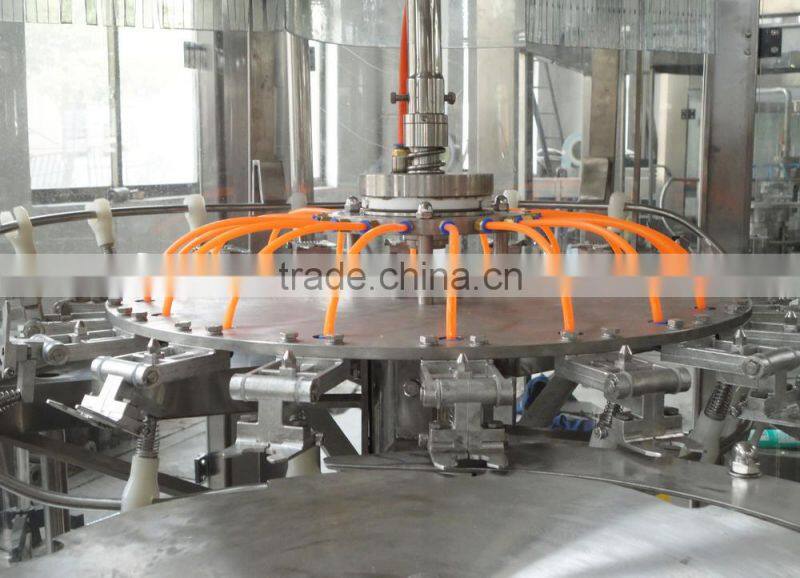

B) Water Bottling Plant--Filling Part
l 304 Stainless steel high precision filling nozzle
l Filling volume adjustable in fine rank, same liquid level after filling
l All 304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
l 304 stainless steel filling pump
l no bottle no filling
C) Water Bottling Plant--Capping Part
l Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
l All 304stainless steel construction
l No bottle no capping,
l Automatic stop when lack of bottle

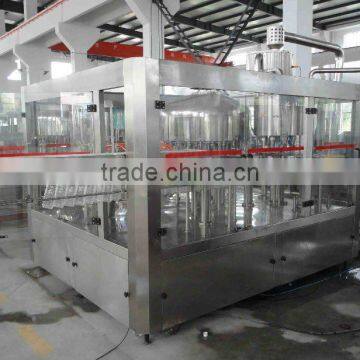

Product show
