Auto PET Bottle Complete Mineral Water Production Line
it is used for packing pure water, mineral water in PET bottles. we can supply the whole line. we also can supply the filling machine for cola or juice.
Characteristics:
1. The washing, filling and capping 3 kinds of jobs will be finished just by this one machine.
2. It is very convenient to change diverse sizes of bottles by means of advanced bottle conveying technology--bottleneck clamping and bottle suspending technology.
3. Advanced programmable PLC is equipped to control the main machine.
4. Main electronic components are all from famous international enterprises.
5. All spare parts that may touch with water are made from high-quality stainless steel.
Main Technical Specifications
Model: | CGF16/12/6 | CGF18/18/6 | CGF24/24/8 | CGF32/32/12 | CGF40/40/12 | CGF48/48/12 |
Production Capacity:500ml(B/h) | 4000 | 6000 | 10000 | 14000 | 17000 | 20000 |
Suitable Bottle Standard:(mm) | 150-300 | 150-340 | 150-340 | 150-340 | 150-340 | 150-340 |
Suitable Cap Standard:(mm) | φ50-φ110 | |||||
Filling Pressure:(Mpa) | 0.2-0.3 | |||||
Filling Model: | by Gavity | |||||
Power:(KW) | 3.13 | 3.84 | 3.84 | 5.6 | 6.3 | 7.3 |
Filling Temperature: | Room Temperature | Room Temperature | Room Temperature | Room Temperature | Room Temperature | Room Temperature |
Overall SizeL×W×H(mm) | 2400×1670 | 2470×1970 | 2865×2170 | 3700×2570 | 3800×2950 | 4500×3400 |
Total Weight:(kg) | 2500 | 3000 | 4000 | 5000 | 6000 | 7000 |

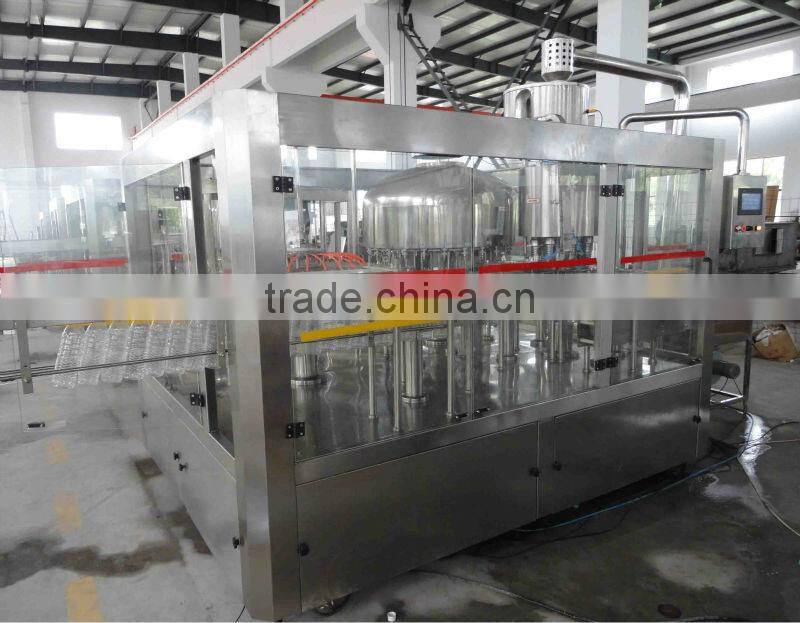

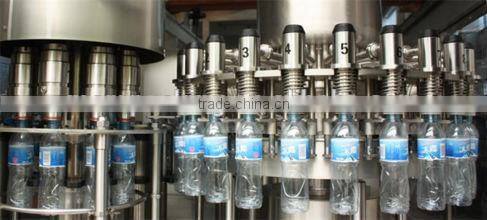

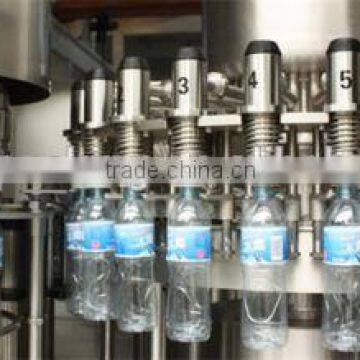

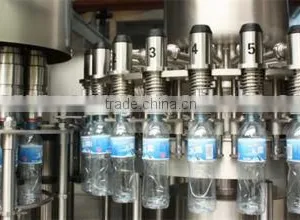

Product show
1.
2.
