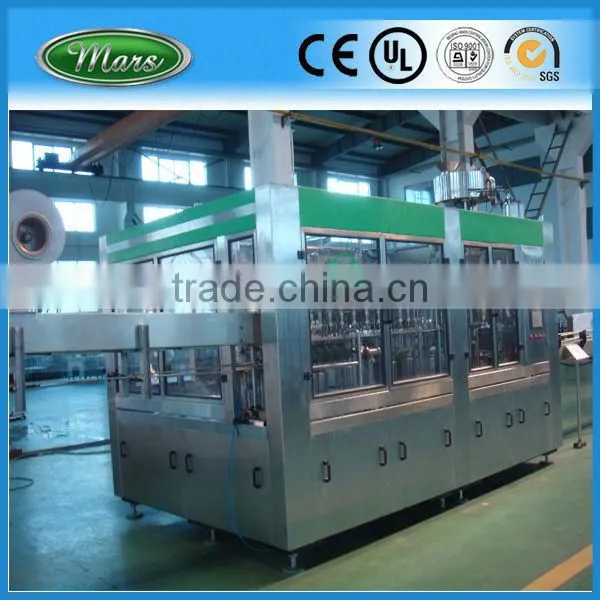

This series of mineral water filling machine are applied to the production of pure water, mineral water, it integrates bottle washing, filling and capping into one body of this machine. It is very convenient to change bottle size by means of advanced bottle conveying technology-bottle neck clamping & bottle suspending technology.
Technical parameter:
1.Model: CGF24-24-8
2.Production capacity: 8,000-9,000B/H(basis on 500ml bottle)
3.Filling precision: ≤±5mm (liquid level)
4.Filling pressure: 0.4Mpa
5.Suitable bottle diameter:φ50-φ120mm
6.Suitable bottle height: 150-320mm
7.Suitable cap type: plastic screw cap
8.Total power: 6.57Kw
9.Overall dimension: 2750×2180×2200mm
Main Feature
ØThis machine has a compact structure, perfect control system, easy to operate and highly automated.
ØThe parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.
ØBy adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.
ØThe capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.
ØThis machine has a high efficient cap arranging system, perfect cap feeding and protection device.
ØEquipped with perfect clean management system to ensure the bottle clean.
ØOnly by changing the star-wheel, can realize to fill the changed bottle shape.
ØThe machine adopts perfect overload protective device can ensure the operator and machine safe.
ØThis machine adopts adjustable frequency converter.
ØThe main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.
ØThe control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
ØThe electric components and pneumatic components are all introduced from world famous brand products.
Rinsing Part:
Filling Part:
Capping Part:
Mars packing machinery keeps 100% confident and try our best ability to satisfy customers' requirements with their selected products. Additionally, we owns a professional customer aftersale service team. Therefore, If you have any inquiries or questions, please visit our store, have a look other products and leave your message. Your message will be highly appreciated! Welcome to visit us!
