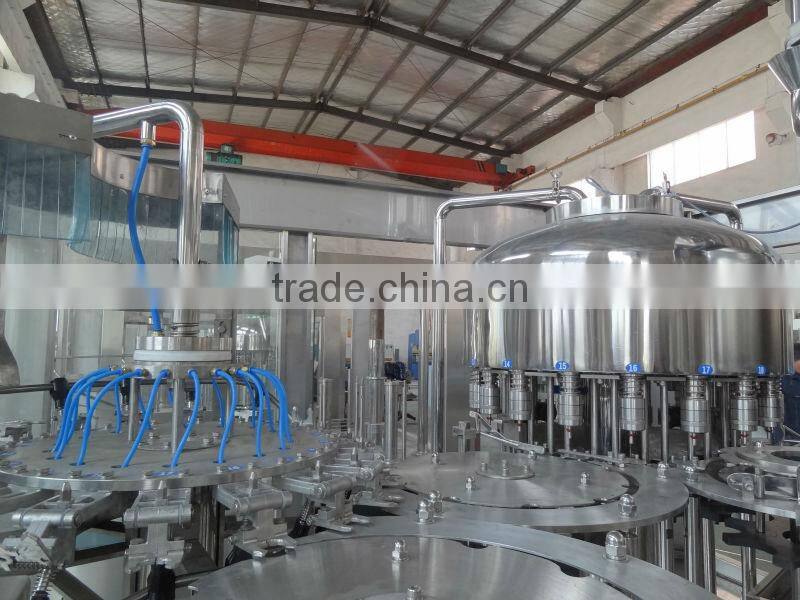

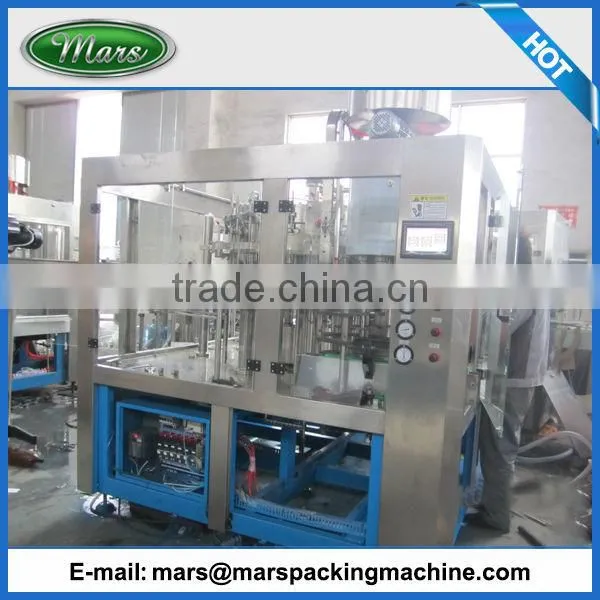

Pure Water Filling Machine
Description:
Water filling machine is used in the production of mineral water,pure water and other uncarbonated drink.
>One one machine ,it can carry out washing ,filling and capping.
>The machine adopts filling in normal temperature and normal pressure.
>The special filling valve makers the filling speed fast and the filling liquired level contro and correct.
>The machine adopts frequency controal and PLC controal.
>It's suitable for PET bottle
Characteristic for Pure Water Filling Machine :
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
4. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Main technical parameters for Pure Water Filling Machine :
| Technical Data | |||
| Model | CGF14/12/6 | CGF18/18/6 | CGF24/24/8 |
| The number of Washing, Filling, Capping | 14-12-6 | 18-18-6 | 24-24-8 |
| Producing capacity: The number of bottle(600ml)/hour | 2000-3000 | 4000-6000 | 6000-8000 |
| Applicable bottle specifications (mm) | φ=50-108 H=170-340 330ml-2.25L | ||
| Pressure (kg/cm2) | 2~3 | ||
| Motor power (kw) | Main motor 3.5kw | Main motor 3.8kw | Main motor 4.1kw |
| Outside vacuum pump power (kw) | 2.2 | 3 | 4 |
| Overall dimension (mm) (LxWxH) | 2100x1600x2300 | 2400x41900x2300 | 2800x2100x2300 |
| Weight(kg) | 2500 | 3000 | 4000 |
