Help CenterLiquid Filling Machine
US$ 18,000 - 21,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Barrel, Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Drinking Water PlantUS$ 17,000 - 19,000MOQ: 1 Piece -
3 In 1 Pure Water Filling MachineUS$ 28,000 - 35,000MOQ: 1 Piece
-
Drinking Water Production PlantUS$ 17,000 - 20,000MOQ: 1 Piece
-
Rinser Pressure FillerUS$ 15,000 - 18,000MOQ: 1 Piece
-
Zhangjiagang Filling Machinery SupplierUS$ 15,000 - 18,000MOQ: 1 Piece
Condition
New
Application
Beverage
Packaging Type
Barrel, Bottles
Packaging Material
Glass, Plastic
Automatic Grade
Automatic
Driven Type
Electric
Voltage
220V
Power
1.1KW
Place of Origin
Jiangsu, China
Brand Name
Mars
Model Number
CGF18-18-6
Dimension(L*W*H)
2460x1720x2650mm
Weight
3500kg
Certification
ISO CE
After-sales Service Provided
Engineers available to service machinery overseas

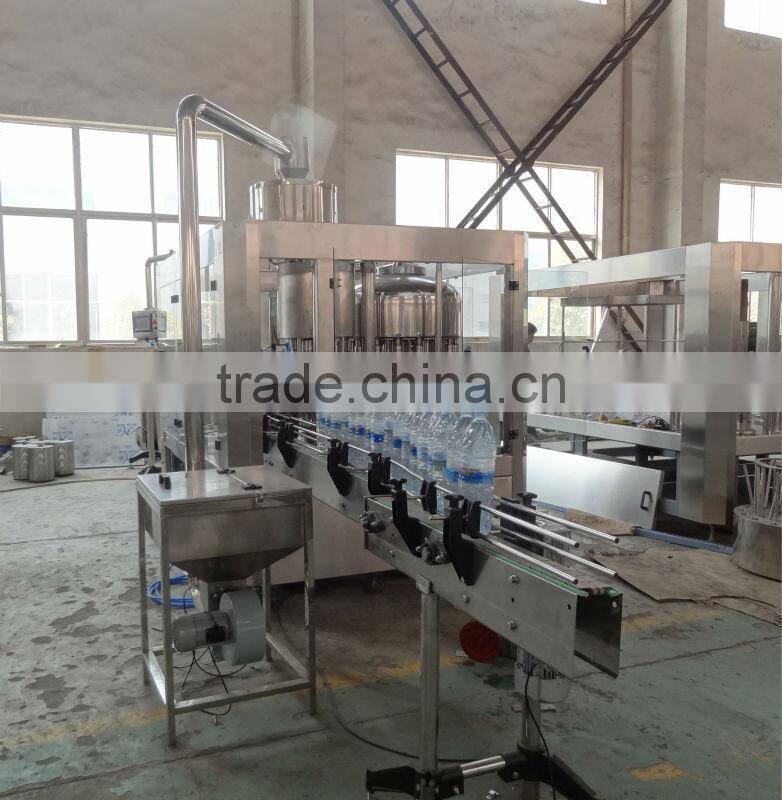

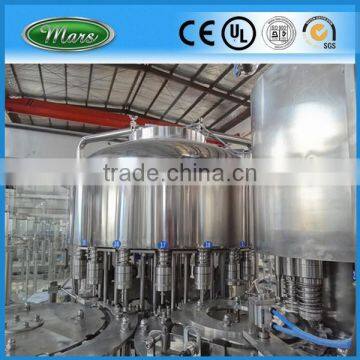

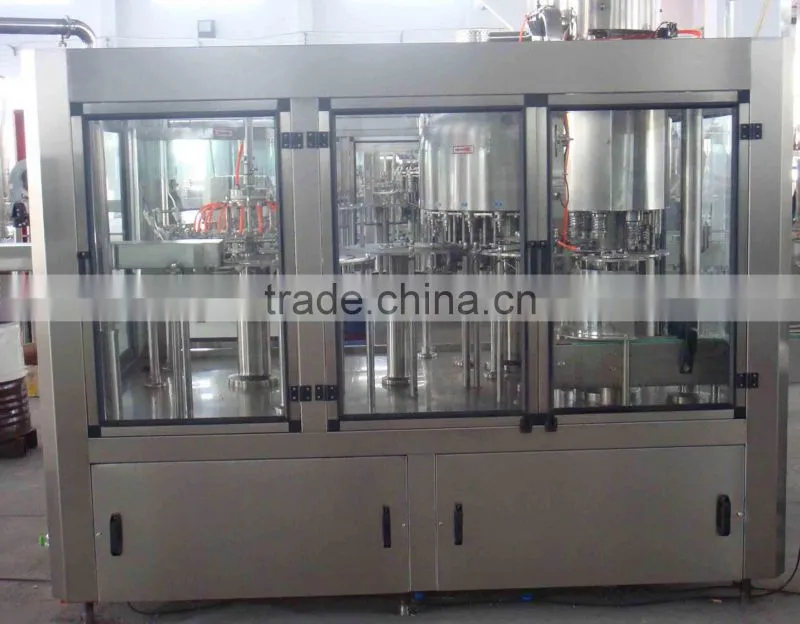

Liquid Filling Machine
Products Introduction:
Juice Bottling Machine / Mineral Water Production Line-user:
This CGF Wash-filling-capping 3-in-1unit:Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. The CGF Wash-filling-capping 3-in-1unit:Beverage Machinery can finish all the process such as wash bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
Juice Bottling Machine / Mineral Water Production Line-user:
This CGF Wash-filling-capping 3-in-1unit:Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. The CGF Wash-filling-capping 3-in-1unit:Beverage Machinery can finish all the process such as wash bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
Liquid Filling Machine Characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Juice Bottling Machine / Mineral Water Production Line-Main technical parameters:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Juice Bottling Machine / Mineral Water Production Line-Main technical parameters:
| Liquid Filling Machine Technical Data | ||||
| Model | CGF12126 | CGF18186 | CGF24248 | CGF323210 |
| The number of Washing, Filling, Capping | 12-12-6 | 18-18-6 | 24-24-8 | 32-32-10 |
| Producing capacity; The number of bottle(600ml)/hour | 3000-4000 | 6000-7000 | 8000-10000 | 12000-15000 |
| Applicable bottle specifications (mm) | φ=50-108 H=170-340 330ml-2.25L | |||
| Pressure (kg/cm2) | 2~3 | |||
| Motor power (kw) | Main motor 1.5kw | Main motor 2.2kw | Main motor 3kw | Main motor 4kw |
| Outside vacuum pump power (kw) | 0.75 | 1.1 | 1.5 | 2.2 |
| Overall dimension (mm) (LxWxH) | 2100x1400x2500 | 2460x1720x2650 | 3100x2100x2650 | 3500x2500x2650 |
| Weight(kg) | 2500 | 3500 | 4200 | 5500 |
| Technical Data | |||
| Model | CGF404010 | CGF484812 | CGF606015 |
| The number of Washing, Filling, Capping | 40-40-10 | 48-48-12 | 60-60-15 |
| Producing capacity: The number of bottle(600ml)/hour | 18000-20000 | 22000-25000 | 28000-30000 |
| Applicable bottle specifications (mm) | φ=50-108 H=170-340 330ml-2.25L | ||
| Pressure (kg/cm2) | 2~3 | ||
| Motor power (kw) | Main motor 7.5kw | Main motor 9.5kw | Main motor 12kw |
| Outside vacuum pump power (kw) | 2.2 | 3 | 4 |
| Overall dimension (mm) (LxWxH) | 4600x1800x2650 | 5200x4500x3400 | 6500x4500x3400 |
| Weight(kg) | 6800 | 7600 | 9800 |
