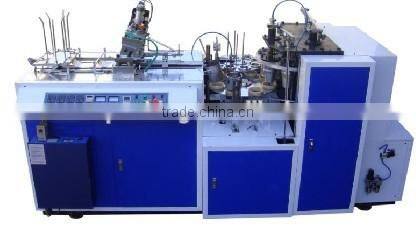

Mars Paper Cup Making Machinery
1.Description:
Paper cup making machine line is multistation automatic machine. It has continuous automatic procedures like feeding, sealing,
oil filling, washing, heating, knurling, convex knurling, curling, unloading, etc. It is ideal equipment for producing paper testing-drinking cups, market cups, advertising cups, etc. It is widely used for hot drink and some beverage.
2.Main Technical Parameter for Paper Cup Making Machinery :
Model |
PC-1 PAPER CUP MACHINE |
Cup size |
A: Top outside diameter: 50~90mm B: Height :45~115mm C: Bottom outside diameter:35~64mm D: Depth of Cup bottom: 4.5~12mm
|
Applicable Paper |
150-250gsm (one side PE coated paper) 150~380gsm (two side PE coated paper) |
Production speed |
45-55pcs/min |
Electrical requirement |
Without ultrasonic:3.8KW 380V 50Hz With ultrasonic: 8 KW 380V 50HZ |
Compressed air |
0.4m3/min ,Air source request (double PE): 0.4-0.6 Mpa |
Weight |
1300 KG |
Overall dimensions |
(L*W*H ) 2.55*1..26*1.7 M |
