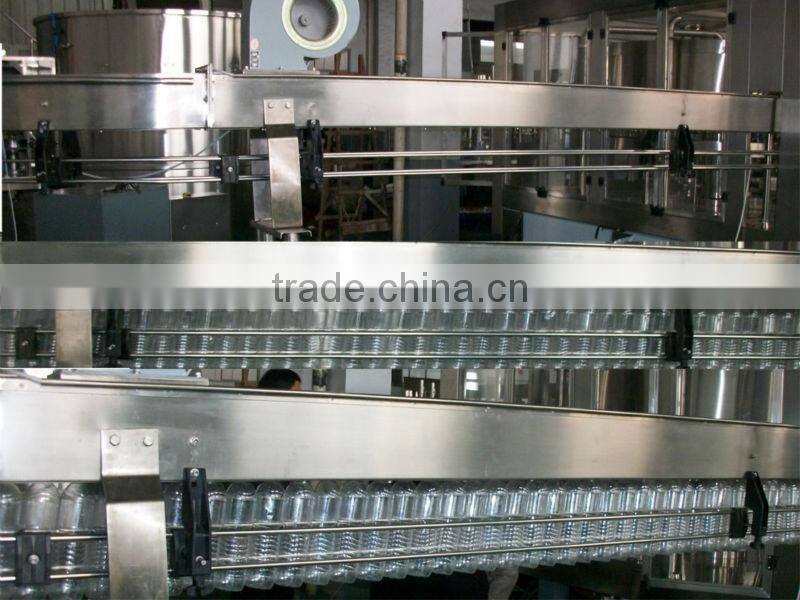

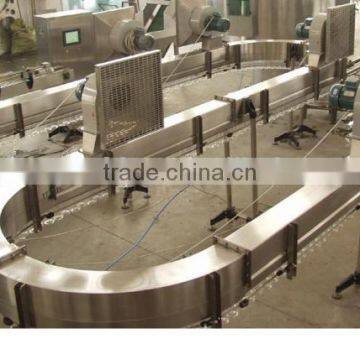

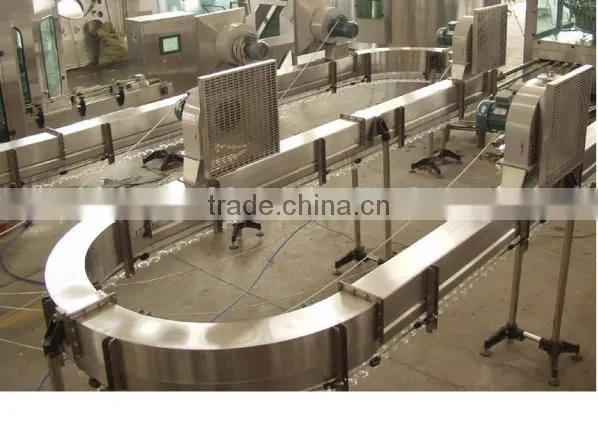

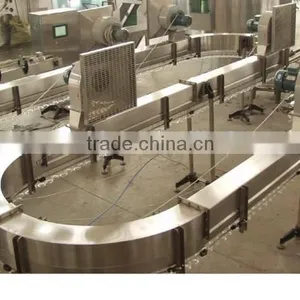

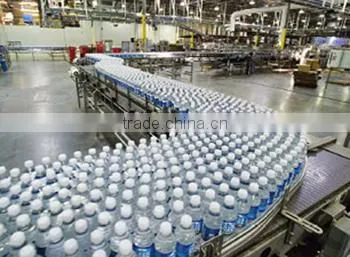

Plastic Bottle Air Conveyor

Plastic Bottle Air Conveyor Seller:

Mars air conveyor,pneumatic conveying system,conveyor

Equipment Overview

The conveyor line is the bridge over every production equipment,which directly affects the opening efficiency of production lines.At the configuration of conveyor line,it has to take the following points into account,that is when posterior equipment suspend or stop,it can not affect the anterior equipments' operation;at the same time,it must connect the posterior equipment and anterior equipment well ,so that it can make the whole production line to achieve higer operation efficiency.Our conveyor line is absorbed the advantages of bottle machines overseas.

According to China's national conditions ,the developed new bottle conveying system can be used to convey different kinds of circular bottles in beer and beverage;the mechanical structure of this system os of new design,the majority of components are formed through pressing or bending,which is with advantages of good rigidity,light weight and good interchangeability.With reliable operation and convenient repair,electrical control system adopts PLC to control the conveying of actual bottle and the operation of buffer systems,which realizes the functions of automatic accelerance or deceleration,and automatic buffer.

Main Characteristic

1. Smooth and reliable delivery,using synchronous tracking control between conveyor and host machine or with the host or on-line control between the up and downstream equipments,so that the up and downstream equipments, so that the bottles will not be brought down,stopped, and blocked in the delivery process
2. The conveyor belt structure is designed as a modular,with strong parts interchangeability,compact structure,low noise,installation,convenient maintenance, and it also can combined according to the differene ability and bottle types,with a great deal of flexibility
3. The design of electrical control is advanced and reasonable.In order to prevent the bottles squeeze in the conveying process,especially the control between high-speed line and bottles conveying line,it adopts chain control with easy interoperate control;the control elements have proximity switch,photocell,sensor; ther are many kinds of control method, to put forward practical control methods according to different design requirements,for the purpose of smooth delivery.
4. To set the reasonable position of the control switches according to conveyor system layout and customer demands for users operation ease
5. The main structural components are stainless steel(SUS304),side panel thickness is 2.5mm
6. The main electrical components are selected OMRON,MITSUBISHI,etc
7. Conveyor trunking is made by stainless steel 304,1mm
8. The entire line is equipped with lubricant water conservation tank,of which material is 1.0mm stainless steel(SUS304),to ensure the equipment integrity and lubricant effective recycling.



Technical Parameters

1. Side panel:304 stainless steel wire-drawing sheet,thickness is 2.5mm
2. Power:SEW
3. Supporting leg:304 stainless steel pressing structure
4. Lubricant water conservation tank:304 stainless steel,thickness is ≥1mm
5. Trunking and cover:304stainless steel,thickness is 1mm
6. Chain plate: Domestic high-quality plastic chain plate,polyoxymethylene(POM)
7. Bearing housing:304 stainless steel cage
8. PLC: to select Siemens,MITSUBISHI,etc
9. Inverters: MITSUBISHI or Panasonic Inverter
10. Armature:independent armature
