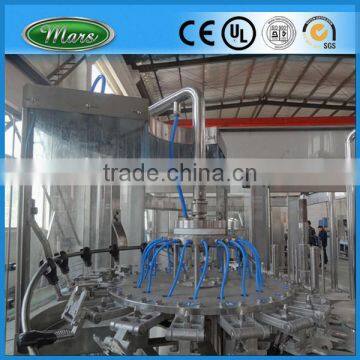

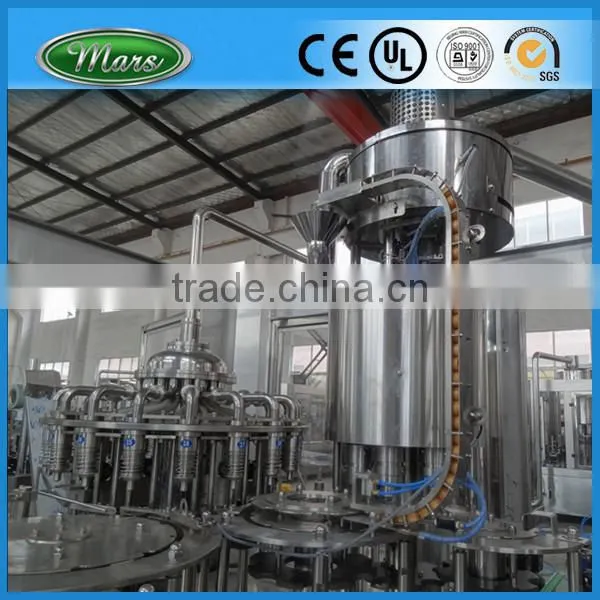

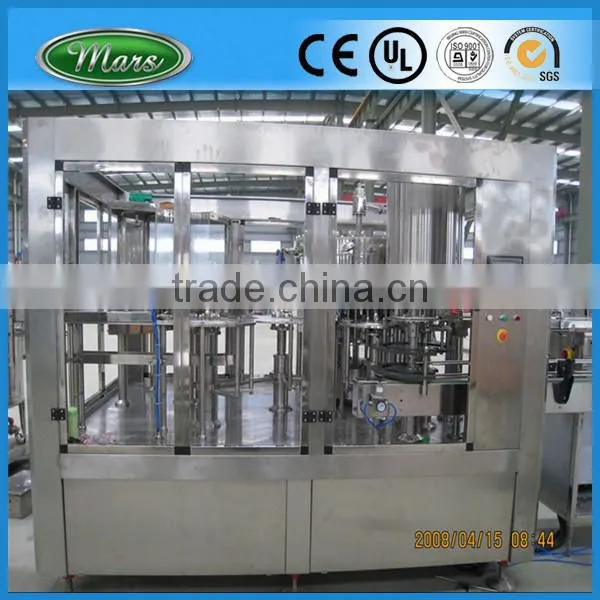

Automatic Bottle Filling Machine
1. Using screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough...
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology
Automatic Bottle Filling Machine Technical Specification:
| Model | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 |
| Production Capacity(500ml)(b/h) | 2000-4000 | 4000-6000 | 8000-10000 | 12000-15000(0.5) |
| Filling Precision(Liquid Level) | ≤±5mm | ≤±5mm | ≤±5mm | ≤±5mm |
| Polyester Bottle Standard(mm) | Φ40-80/130-280 | Φ50-100/150-320 | 50-100/150-320 | 50-100/150-320 |
| Suitable cap shape | Plastic screw cap | Plastic screw cap | Plastiscrewcap | Plastic screw cap |
| Water pressure of washing bottle(Mpa) | 0.18 | 0.18 | 0.18 | 0.18 |
| Water consumption for water bottle(kg/h) | 800 | 1600 | 2500 | 3500 |
| Spraying position | 5 | 5 | 6 | 7 |
| Dripping Bottle position | 3 | 3 | 3.5 | 7 |
| Gas source pressure(Mpa) | normal | normal | normal | normal |
| Gas consumption(m/min) | 0.3 | 0.3 | 0.4 | 0.5 |
| Total power | 1.23 | 5.03 | 6.57 | 8.63 |
| Total weight | 2000 | 3500 | 5500 | 8000 |
| Dimension(LΧWΧH)(MM) | 2100χ1500χ2200 | 2450χ1800χ2200 | 2750χ2180χ2200 |
3500χ2200χ2250 |
