The Cheapest Mineral Water Bottle Filling Machines
- 180 Piece / Pieces per Month
- Shanghai
- T/T Credit Card
- Cheapest Automatic Bottle Blowing Machine Prices/factory price automatic bottle shrink wrapping machine
- PET bottle making machine/nice plastic bottle making machine price/high quality plastic bottle blowing machine
- Top quality china automatic machines to make plastic bottles/bottle blowing machinery/Pet Bottles Blowing Machine 750ml
- Chinese PET water bottle blowing machine/equipment / automatic bottle Blowing machinery
- Low price Beverage drinking PET bottle blowing machinery/fully automatic pet bottle blowing machine
- high quality bottle blowing machine/automatic shrink wrapping machine/water bottle blowing machine
Product Details
Condition: | New | Application: | Beverage | Packaging Type: | Barrel, Bottles |
Packaging Material: | Plastic | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 380V | Power: | 6.5Kw | Place of Origin: | Jiangsu, China |
Brand Name: | Mars | Model Number: | CGF32-32-10 | Dimension(L*W*H): | 3600x2650x2350mm |
Weight: | 5500Kg | Certification: | ISO CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

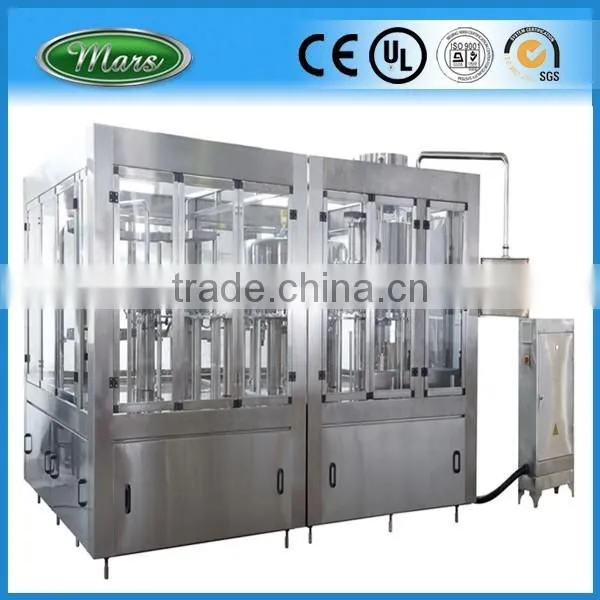

The Cheapest Mineral Water Bottle Filling Machines
Products introduction
1.The water filling machine is used in production of non-soda drink of fruit juice, fruit wine, minerals and pure water packed in polyester bottles. Washing, filling and capping are integrated in one machine.
2.The most advanced technology from Japan and Germany is employed in this design. The gravity fixed liquid surface filling is used. The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.
3.Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180°along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
4.The magnetic torque is used for screw capping. The power of screw capping can be adjusted steplessly. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
5.The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle.
6.When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.

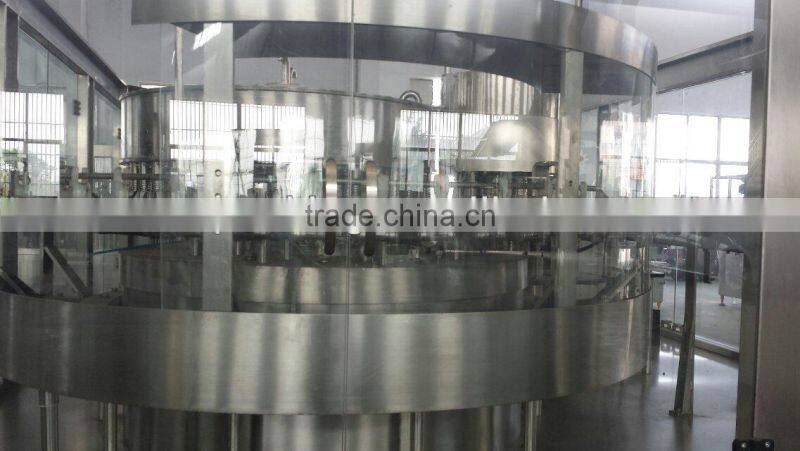

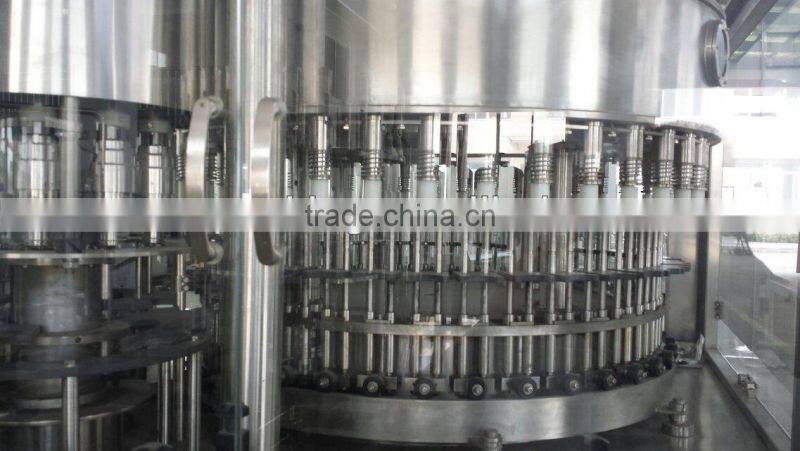

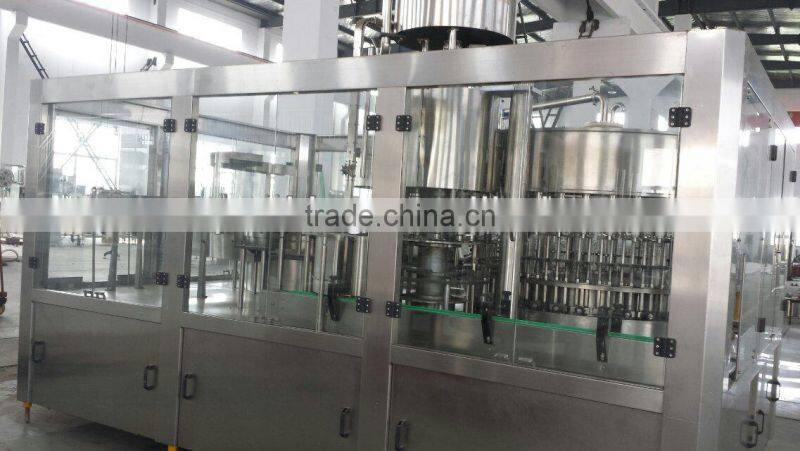

Mineral Water Bottle Filling Machines
Main technical parameter for Mineral Water Bottle Filling Machines
Model: | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 | ||
capacity :500ml | 5000 | 8000 | 12000 | 16000 | ||
bottle shape: | roud or square | |||||
PET bottle: (mm) | (Bottle Diameter):φ50-.φ110mm (Height):150-340mm | |||||
cap: | PE srew cap | |||||
filling precision: | ≤±5mm | |||||
filling pressure:(Mpa) | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | ||
rinsing pressure:(Mpa) | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | ||
filling volume :(L) | 3.5 | 4 | 6 | 8 | ||
overall size:(mm) | 2450*1800 *2350 | 2780*2200 *2350 | 3600*2650 *2350 | 3800*2950 *2400 | ||
weight: (kg) | 3500 | 4500 | 5500 | 6500 |
The Cheapest Mineral Water Bottle Filling Machines
