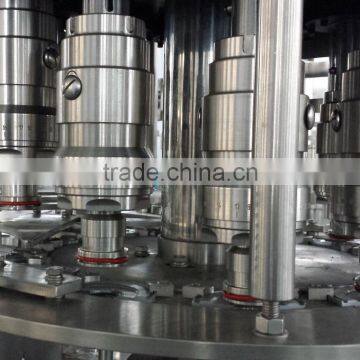

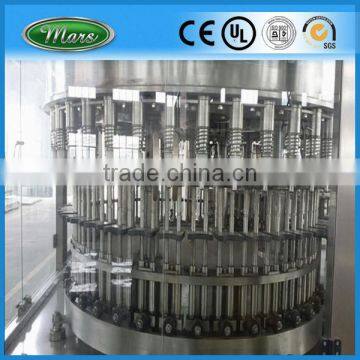

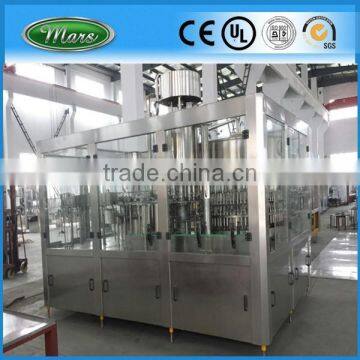

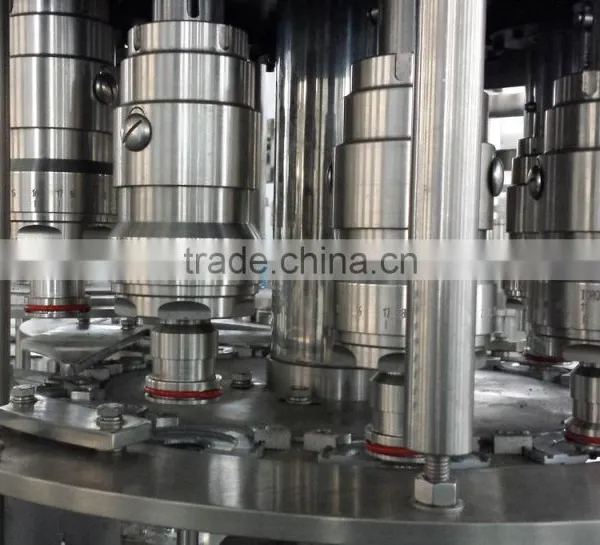

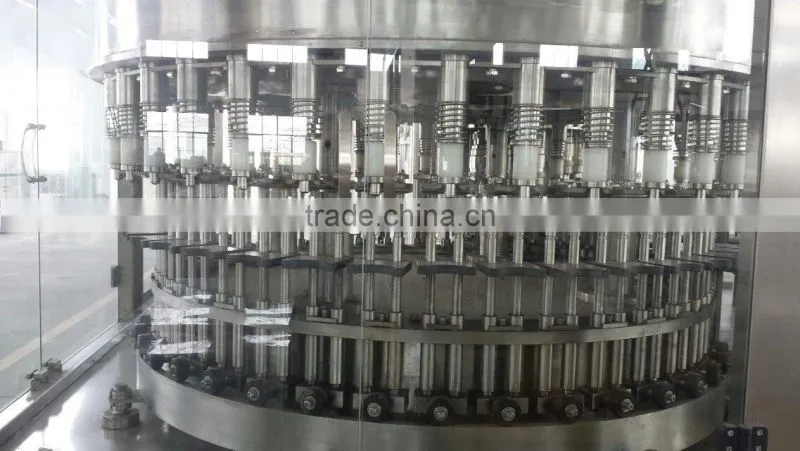

Bottle Filling Machine
Specification
Main Technical parameters : | |||||||
Model |
CGF16126 |
CGF18186 |
CGF24248 |
CGF32328 |
CGF404012 |
CGF505015 |
CGF606015 |
Heads of washing ,filling , sealing |
16-12-6 |
18-18-6 |
24-24-8 |
32-32-8 |
40-40-10 |
50-50-15 |
60-60-15 |
Production capacity (bottle/hour) |
2000-4000 |
5000-7000 |
8000-12000 |
12000-15000 |
16000-20000 |
20000-24000 |
25000-30000 |
Suitable bottle diameter(mm) |
φ=50-100 H=170 330-1500ml |
||||||
Spraying pressure |
2~3 |
||||||
Motor power |
Main motor 1.5kw |
Main motor 2.2kw |
Main motor 3kw |
Main motor 4kw |
Main motor 7.5kw |
Main motor 9.5kw |
Main motor 12kw |
Power of outer vacuum pump |
0.75 |
1.1 |
1.5 |
2.2 |
2.2 |
3 |
4 |
overall dimension (LxWxH) |
2100x 1400x 2500 |
2460x 1720x 2650 |
3100x 2100x 2650 |
3500x 2500x 2650 |
4600x 1800x 2650 |
5200x 4500x 3400 |
6500x 4500x 3400 |
Weight |
2500 |
3500 |
4200 |
5500 |
6800 |
7600 |
9800 |
Characteristics for Bottle Filling Machine Price
• The washing, filling and capping 3 kinds of actions will be finished just by one machine.
• It is very convenient to change diverse sizes of bottles by means of advanced bottleneck clamping & bottle suspending technology.
• Advanced programmable PLC is equipped to control the main machine
• Working speed can be adjustedby frequency conversion device.
• Main electronic components are all from famous international enterprises, like Siemens and Mitsubishi.
Packing for Bottle Filling Machine Price
Packed in sea worthy wooden case, with PE film around the machine.
Suitable for long distance, and ocean transportation.
