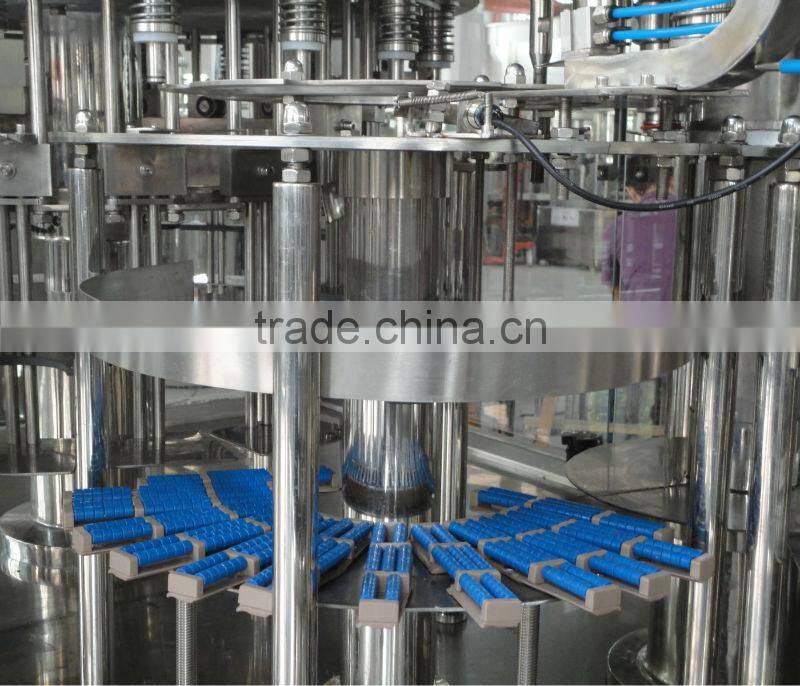

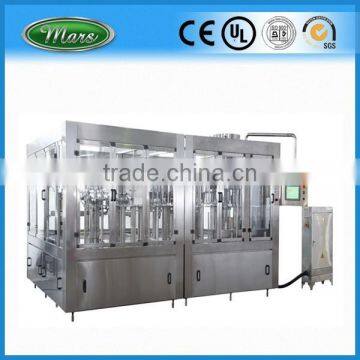

Bottle Filling Machine
Automatic Beverage Bottle Filling Machine
This Full Automatic bottle filling machine with following specification:
1.Applicable bottle type plastic bottle. PET bottle (the customer offers the sample).
Diameter: ¢50-¢80mm
Height: 160-320mm
2.Applicable cap type plastic cap, metal cap (the customer offer the sample)
3. Method of changing speed: frequency conversion
4.Power of unscramble motor 0.37Kw
5.Supply pressure of rinsing water: >0.06Mpa<0.2Mpa
Main features for Bottle Filling Machine
1. This machine has a compact structure, perfect control system, easy to operate and highly automated.
2. The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.
3. By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.
4. The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.
5. This machine has a high efficient cap arranging system, perfect cap feeding and protection device.
6. Equipped with perfect clean management system to ensure the bottle clean.
7. Only by changing the star-wheel, can realize to fill the changed bottle shape.
8. The machine adopts perfect overload protective device can ensure the operator and machine safe.
9. This machine adopts frequency converter, which can adjust the
10. The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.
11. The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
12. The electric components and pneumatic components are all introduced from world famous brand products.
Main Parameter for Bottle Filling Machine
Model No. |
CGF16-12-6 |
|
CGF 18-18-6 |
CGF24-24-8 |
CGF32-32-10 |
Rinsing Head No. |
16 |
|
18 |
24 |
32 |
Filling head No. |
12 |
|
18 |
24 |
32 |
Capping head No. |
6 |
|
6 |
8/10 |
10 |
Power of main motor |
3Kw |
|
3Kw |
4Kw |
4.8Kw |
Total weight |
2.8T |
|
3.6T |
4.5T |
4.8T |
1.MARS company can provideo one stop service including whole factory design,product solution design,abroad installation, worker training,spare parts supply etc.
2. MARS company have professional design team, our engineer can draw bottle samples and flow chart of
workshop for you .
3. MARS company give you the best quotation for all kinds of beverage production, only you can tell me which
kind of drink you want to product, what is your capacity(how many bottles one hour) what is you bottle
material, pet or glass,etc
After service:
1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the machine:
a. Machine layout
b. Electricity diagram
c. Machine certificate
d. General operation manual/maintenance book
3. After two year guarantee, the seller provides payable spare parts and technician’s VISITING maintenance
service.
