Home > Products > Bottle Feeding System > Automatic 6 Cavity Bottle Blowing Machine

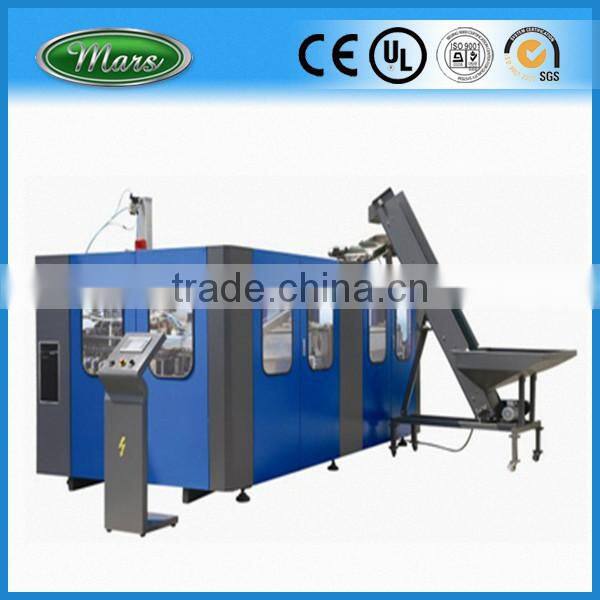

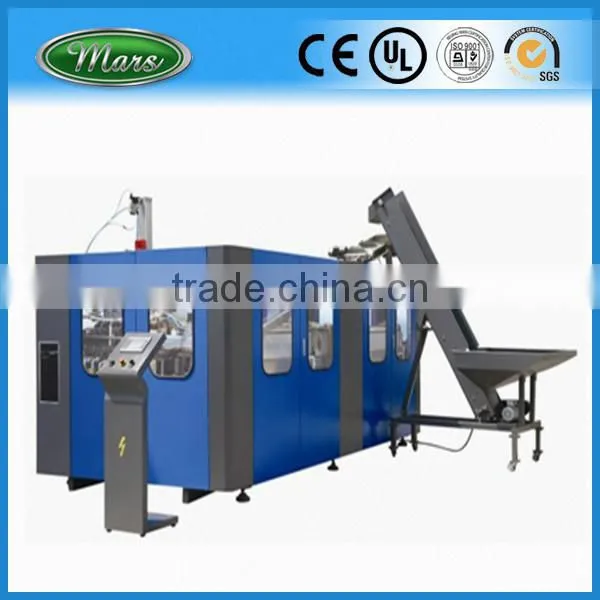

Automatic 6 Cavity Bottle Blowing Machine
- 200 Set / Sets per Month
- Shanghai
You May Like
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PET | Blow Moulding Type | Stretch Blow Moulding | |
| Automatic | Yes | Place of Origin | Jiangsu, China | |
| Brand Name | Mars | Model Number | BM-A6 | |
| Voltage | 380v 3Phase /220v 3Phase 50/60HZ | Power(W) | 49Kw | |
| Dimension(L*W*H) | 1908*1858*1920mm | Weight | 3600Kg | |
| Certification | CE | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Automatic 6 Cavity Bottle Blowing Machine
Automatic 6cavity bottle moulding machine is suitable for producing PET/PE and PP plastic containers and bottles in all shapes.It is widely used to produce the carbonated bottle,mineral water,pesticide bottles cosmettics.
Main part: | ||
Pneumatic part | Valve | SMC |
Cylinder | ||
Electric part | PLC | LG Mitsubishi |
Operating system | LG /HITECH | |
Relay | OMRON | |
Infrared thermometer | America raytek | |
Note | All of the electrical components adopts CEULCCC approved international advanced high-tech product. | |
Main parameter: | ||
Model | KM-A4 | |
Productivity | Depend on bottle design | 3200-4000PCS/H |
Product type | Body diameter | 20mm-100mm |
Height | 50mm-350mm | |
Neck diameter | 15mm-38mm | |
Mold | Cavity | 4cavities |
Mold thick | 240mm | |
Mold | 500*500mm | |
Main machine power | Electrical source power | 380v 3Phase /220v 3Phase 50/60HZ |
Rated Power | 49kw | |
Really use power | 14kw | |
Air source | LP air compressor | 1.6m3/min 1.0MPa 1set (15KW) |
HP air compressor | 1.0m3/min 3.0MPa 2sets (each set 11KW) | |
Air dryer | 2.0m3/min 3.0MPa 1set | |
Cooling water | Cooling water | 15L/min |
Size | L*W*H | 1908*1858*1920mm |
Weight | 3600kg | |
Auxiliary equipmentpreform unscrambler | L*W*H | 2000*950*2480mm |
Weight | 250kg | |
Resin available |
| PET |

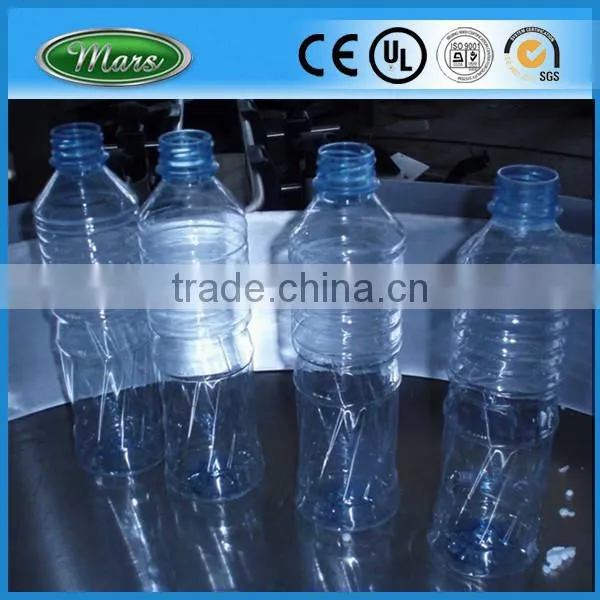

Product show
