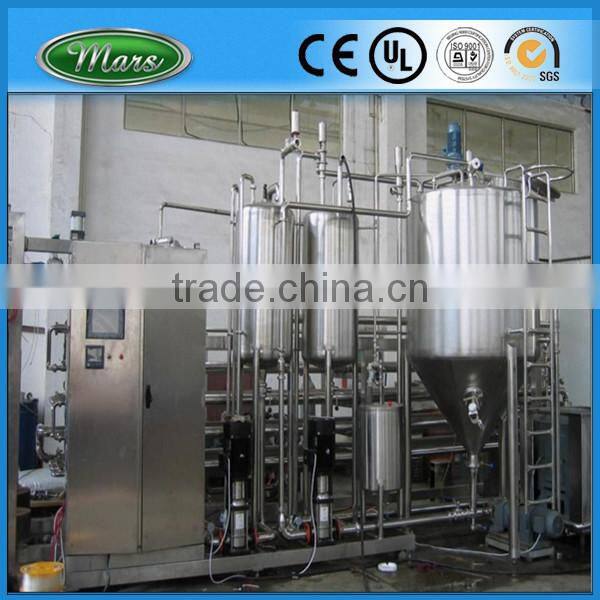

UHT Steam Milk Sterilization Machine
Features:
This sterilization equipment can be used for instant sterilizing for milk, beverage, juice,wine ,Soybean milk and other kinds of liquid project. This equipment is designed with three-way cock feeding inlet and outlet, and the flow capacity is adjustable as users’ need.
1.The machine can finish continuous operating and instant sterilization.
2.The sterilization process is finished with high temperature which increase the sterilization efficiency.
3.The machine is used together with centrifugal pump and homogenizer, it is applicable for high viscosity project sterilization.
4.There is also heat exchanger inside the equipment,and it can reuse the waste heat
which decrease steam consumption.
Technical parameters:
Model | UH | UHT- | UHT- | UHT-4 |
Capacity | 0.5-1m³/h | 1.5-2m³/h | 3-4m³/h | 5-6m³/h |
Sterilization temperature | 115-137°C | |||
Steam pressure | < 0.78Mpa | |||
Sterilization time | 3-6 seconds | |||
Outlet temperature | <65°C | |||
Inlet temperature | <16°C | |||
Steam consumption | <0.12kg/L | <0.15kg/L | <0.15kg/L | <0.20kg/L |
Weight | 310kg | 350kg | 420kg | 560kg |
Dimension | 1200×920×1650mm | 1300×1100×1700mm | 1600×1200×1800mm | 1940×1400×2000mm |
Product show
