The Automatic Tube Filling And Sealing Machinery
Feature:
1. It is suitable to plastic and composite tube for toothpaste, Cosmetics, Medicines, Food, and other
industrial supplies.
2. Tube filling and sealing machine is suitable for filling all kinds of pasty and viscous fluid and the
materials alike, into plastic and composite metal tube and then internally heating tubes, sealing and
printing lot number. It is used in the industries of pharmaceutics, foodstuffs, cosmetic and daily
chemicals. With Taiwan's EVIEW touch screen and Siemens PLC control system employed, convenience,
visualized and realizable nontouch operation of the machine is effected compact design and auto tube feed.

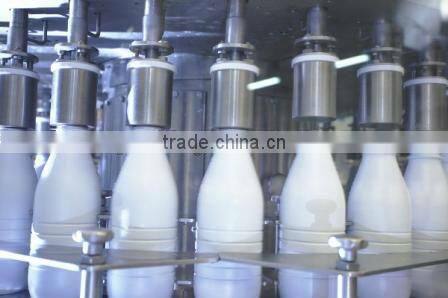

Main technical parameters for UHT Filling Machine
Name | Semi-auto Filling & Sealing Machine | ||
Model | FG-1 | ||
Power Supply | 380V/50Hz | ||
Air Supply | 0.6 - 0.8 Mpa | ||
air Consumption | 0.6m³/min | ||
suitable tube | Plastic tube such as PE,PP, PVC | ||
filling volume | 10 - 50 ml | 50 - 100 ml | 100 - 200 ml |
filling precision | ≤±5% | ≤±3% | ≤±2% |
capacity | 25 - 40 pcs/min | ||
tube size | diameter Φ16 - Φ50mm length 50-120 | ||
Dimension (L*W*H) | 1000*750*1500 mm | ||
net weight | 260KG | ||
working process: feed tube by hand, the following process automatic: | |||
