UHT Milk Sterilizing Machine
- 200 Piece / Pieces per Month
- Shanghai
- T/T Credit Card
- High Quality Hot Milk Juice Tubular Type Uht Sterilizer Pasteurization Equipment Machine
- Factory Dairy making machine/mini pasteurized milk & yogurt processing plant/long life UHT milk production line machinery
- 500l-1000 L/H Multi Tube Uht Sterilizer Tubular Type Pasteurizer Juice Sterilizer Machine
- Water Bath Vacuum Packaged Food Pasteurizer Machine/Tunnel Tomato Paste Pasteurization Machine
- Dairy Greek Yogurt Make Machine 1000L Milk Pasteurizer Pasteurizadora De Leche Milk Sterilizer Machine
- Factory Dairy making machine/mini pasteurized milk & yogurt processing plant/long life UHT milk production line machinery
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | Mars |
Model Number: | UHT-1 | Processing Types: | Milk | Voltage: | 220V 380V |
Power(W): | 2.2KW | Weight: | 280KG | Dimension(L*W*H): | 920*920*1400 |
Certification: | CE | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

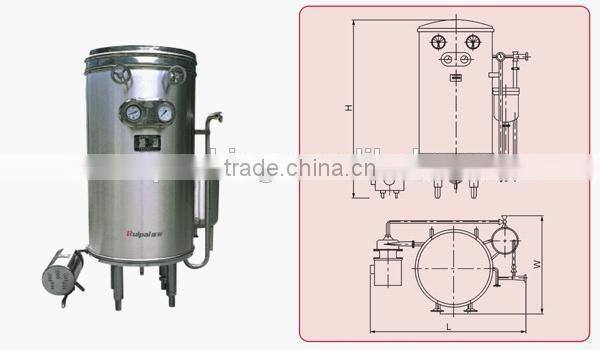

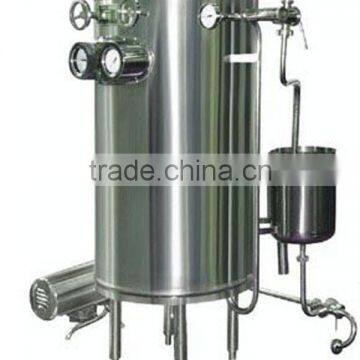

UHT Milk Sterilizing Machine
Description
Our automatic pipe coil rapid pasteurizing machine is a special sterilization equipment for milk, juice, and other drinks
Heating,sterilizing,cooling and heat recovery these functions all in one,with various security protection devices(such as high temperature alarm,low temperature backflow,cooling at power cut..etc).
High precision automatic control system and PLC reasonable process programming makes operation clear and easier.
1) By adopting scientific treatment characterized by instant ultra high temperature, this system enables liquid foods including liquid products, vegetable protein milk, juice beverage and tea to be strictly sterilized and subsequently to be aseptically packaged.
2) The sterilization temperature can be as high as 135 degree to 143 degree while the holding time lasts only 4-5 seconds, so that the original months.
3) The equipment is characterized by high heat recovery, compact structure and stable temperature control.
Parameter for UHT Milk Sterilizing Machine
. | UHT-1 | UHT-2 | UHT-4 | UHT-6 |
Processing power | 0.5-1T/H | 1.5-2T/H | 3-4T/H | 5-6T/H |
Sterilization temperature | 115-135°C | 115-135°C | 115-135°C | 115-135°C |
Steam pressure | < 0.4MPa | < 0.4MPa | < 0.7MPa | < 0.78MPa |
High temperature heating time | 4-6S | 4-6S | 4-6S | 4-6S |
Discharge temperature | Lower than 65°C | Lower than 65°C | Lower than 65°C | Lower than 65°C |
Motor power | 2.2KW | 2.2KW | 4KW | 5.5KW |
Body size | 920*920*1400 | 1100*1100*1700 | 1200*1200*1800 | 1400*1400*2000 |
Weight | 280KG | 380KG | 550KG | 700KG |
UHT Milk Sterilizing Machine
