Sterilizing Machine

        Before sterilizing process

1. Hot filling sterilizing process: should be pre-heating , the temperature was same as products hot filling temperature, then the product push into the waterspray autoclave chamber
2. Glass bottles: hot filling glass bottles need preheating before start sterilizing process, because the temperature differential between glass bottles and room temperature too large , the glass container would crack
3. The working medium should be soft water (its same as steam generator supply water)


        Prepare sterilization process:

1. Maker setting: at initial in the autoclave chamber is dry, when process is done, all circulation water was automatically exhaust out of chamber
2. Stand by: maker setting automatically shut down all control system and mechanical system except power
3. Products package can't broken, should be good arrangement of bottles or flexible pouches package, its necessary for good sterilizing process


        Starting food sterilization process: ( One Touch start )

1. Clean soft water inlet to the sterilization autoclave chamber, its automatically control by level switch
2. Automatically start circulation pump, automatically steam inject into retort sterilizer chamber, compress air inlet to autoclave sterilizer for over pressure balance system
3. Start heating process, temperature rise up speed could be adjust between 3~15°C/min ( 5~27°F/min)


        overpressure autoclave heating process:

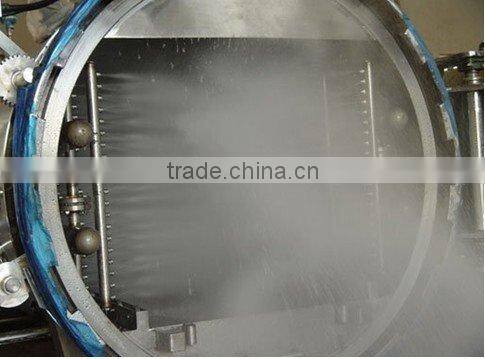

1. Circulation fluid inject into the autoclave sterilizer from top and site, the injection nozzle spray the circulation liquid to " droplets"
2. Millions of droplets be heating immediately in the space of autoclave chamber
3. Uniform distribution of temperature, the nozzle's injection force drive the droplets to everywhere in the chamber


        Sterilization temperature of autoclave / keeping process :

1. Temperature reaches the set point temperature, starting sterilization process
2. The average temperature precision keep in ±0.5°C (±1.0°F) during the process
3. Sterilizing process approach to constant temperature and constant pressure physical equilibrium circulation
4. Saturate water sterilization process never over heating the products, best remain protein and glucose, excellence mouth feeling
5. Option equipment: sterilization F value online recorder

6.         Sterilization process finish :

1. Time reaches the set time, (F value been sufficient), sterilizing process is finish
2. Automatically shut down the steam, and automatically starting the cooling system
3. Hot circulation water would be cooling by the heat exchanger, the cold circulation water inject into the over pressure retort sterilizer ( autoclave ) chamber to cooled the product
4. Cooling speed could be adjust between 5~15°C/min ( 9~27°F/min)


        Autoclave sterilizer cooling process :

1. Hot circulation fluid was cooling by heat exchanger, the cold liquid inject into the autoclave sterilizer, the cold liquid with nozzle spray its to " droplets", cold droplets "pull out" the thermal from products, the products should be cooling
2. With close circulation system, the asepsis circulation is the best for cooling process, the working medium had been fully sterilizing, its clean and asepsis
3. With close cooling system save a lot of cooling water, only need about 3-7% cooling water of full water immersion autoclave sterilizer


        Steamwater spray retort / autoclave working process / finish :

1. Final cooling temperature is higher then the temperature of environment,  average higher 15°C( 27°F), the products temperature would between 30~45°C ( 85 ~ 115°F), for special propose, you can set the final cooling temperature more higher, but never over 60°C ( 140 °F), because after cooking were keeping cooking the product, final high cooling temperature would damage your products, its cause over cooking
2. Cooling speed too slowly or sterilization time too long or final temperature too high, all will damage your products, its loss a lot of nutrition
3. Super cooling : Its option function; products cooling temperature between 20°C ~ 25°C ( 70 ~ 80°F), with chiller the products will be cooling to room temperature Main Technical Data :
