Help Center300Lcooking Meat Pork Tiling Double Gas Heating Jacketed Kettle With Agitator Made in Chine Save Energy
Related Products
-
Steam Jackted Kettle for SaleUS$ 580 - 5,500MOQ: 1 Unit -
Gas Jacketed Kettle Cooking PotUS$ 500 - 4,500MOQ: 1 Unit
-
Tilting Steam Heating Jacketed Kettle Equipment/machineUS$ 1,000 - 8,000MOQ: 1 Unit
-
Gas Jacketed Cooking KettleUS$ 500 - 4,500MOQ: 1 Unit
-
Hot Natural Gas Heating Jacketed Mixng KettleUS$ 500 - 4,500MOQ: 1 Unit
1.Differents of capacity for your reference: 50L-1000L
2.Whole machine adopts high quality stainless steel, but the machine base can be adopts carton steel if you need.
3.The mixing device, tilting device is optional.
4.The heating system can be electrical, gas or steam.
5.Easy to operate.
Classification:
1. According to Structure: Tilting Jacketed Kettle and Vertical Jacketed Kettle
2. According to Heating: Electric Heating Jacketed Kettle, Steam Heating Jacketed Kettle and Gas Heating Jacketed Kettle
3. According to Process Need: Jacketed Kettle with Agitating and Jacketed Kettle without Agitating

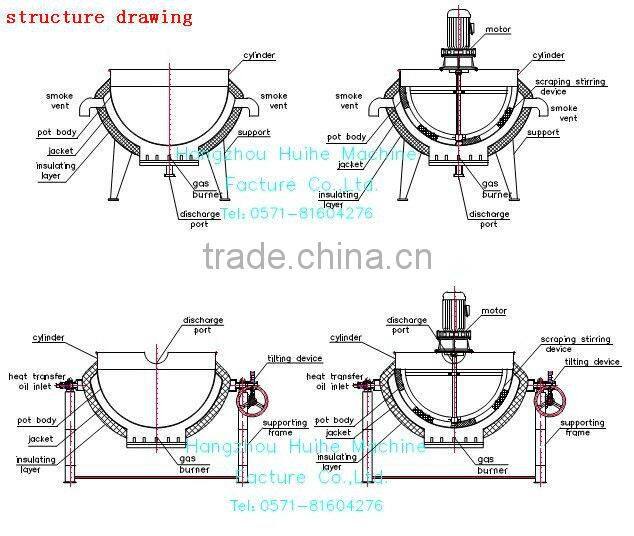

Structure:
Tilting Jacketed Kettle is mainly composed of pot and tilting frame; and the pot is the double layer structure formed by inside and outside spherical pot; middle layer can add steam to heat.
Material:
a) Common Jacketed Kettle Stainless steel inner pot(SUS304/SUS316L), carbon steel outer pot (Q235-B) treated with anti-rust paint
b) All Stainless Steel Jacketed Kettle The whole machine is made of stainless steel (SUS304/SUS316L)
Usage:
1. Be widely applied in food processing such as candy, medicine, dairy, alcohol, cake, sweetmeat, beverage, can, etc.
2. Can be used to boil soup, cook, stew and porridge in some large restaurants and canteens. It is considered to be the ideal equipment in the area of improving quality, shortening the time and improving working conditions.
Characteristics:
1, Full burning, smokeless,dust-free, little carbon, and no environmental pollution.
2, Flame temperature can be regulated optionally, highest temperature 300 °C or so.
3, Reasonable structure and convenient operation.
4, Energy saving, fierce fire, thermal efficiency is increased by 25% or so compared with similar products.
5, Fuel: liquefied petroleum gas (LPG), pipe coal gas, natural gas, and oil is strictly prohibited.
6, Gas consumption: about 20% lower than the similar products.
Technical parameters:
Metric volume(L) |
50 |
100 |
200 |
300 |
400 |
500 |
600 |
800 |
1000 |
Caliber (mm) |
Φ600 |
Φ700 |
Φ800 |
Φ900 |
Φ1000 |
Φ1100 |
Φ1200 |
Φ1300 |
Φ1400 |
Depth of pot(mm) |
400 |
450 |
530 |
630 |
680 |
730 |
780 |
830 |
900 |
Heating area(m2) |
0.45 |
0.58 |
1.12 |
1.42 |
1.75 |
2 |
2.3 |
3.2 |
3.9 |
Electric power(kw) |
9 |
9 |
15 |
18 |
18 |
24 |
24 |
27 |
30 |
Heat transfer oil QTY. (L) |
30 |
36 |
45 |
60 |
70 |
80 |
100 |
200 |
250 |
Working pressure |
≤0.09Mpa(can be adapted according to customer requirement) |
||||||||
Mixing speed |
36 r/min(can be adapted according to customer requirement) |
||||||||
Mixing power(Kw) |
0.55 |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
1.5 |
2.2 |
2.2 |
