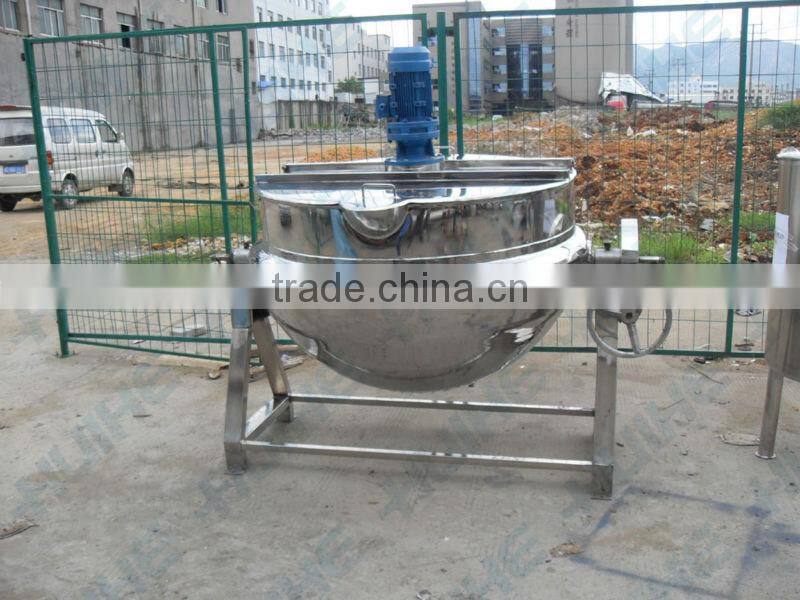

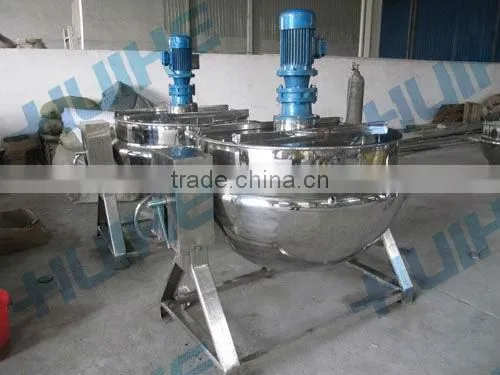

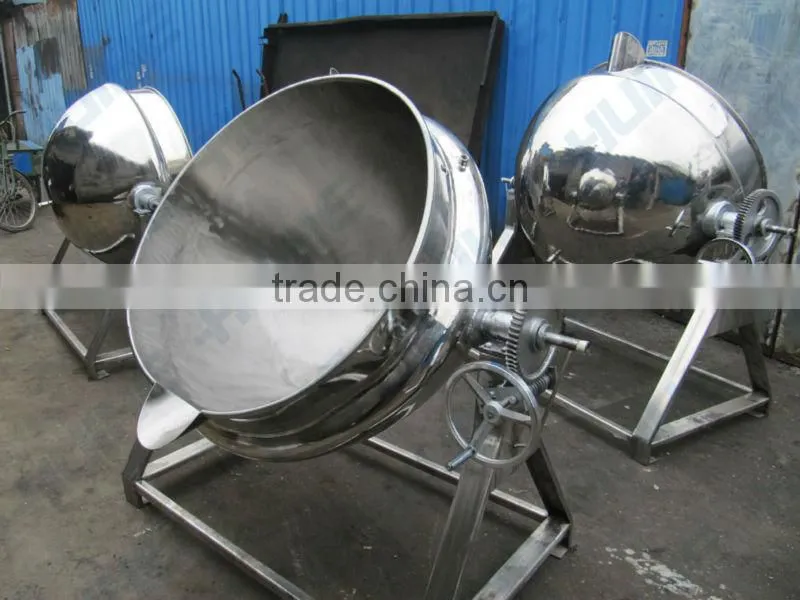

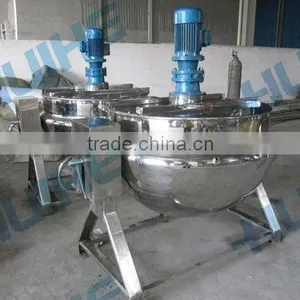

Tilting Steam Heating Jacketed Kettle
1.Big being heated area
2.High thermal efficiency
3.Evenly short time
Features:
1.Big being heated area
2.High thermal efficiency
3.Being heated evenly short time of boiling
4.Temperature being controlled
Usage:
1. Be widely applied in food processing such as candy, medicine, dairy, alcohol, cake, sweetmeat, beverage, can, etc.
2. Can be used to boil soup, cook, stew and porridge in some large restaurants and canteens. It is considered to be the ideal equipment in the area of improving quality, shortening the time and improving working conditions.
Characteristics:
1, Full burning, smokeless,dust-free, little carbon, and no environmental pollution.
2, Flame temperature can be regulated optionally, highest temperature 300 °C or so.
3, Reasonable structure and convenient operation.
4, Energy saving, fierce fire, thermal efficiency is increased by 25% or so compared with similar products.
5, Fuel: liquefied petroleum gas (LPG), pipe coal gas, natural gas, and oil is strictly prohibited.
6, Gas consumption: about 20% lower than the similar products.
Technical parameters:
Metric volume(L) | 50 | 100 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 |
Caliber (mm) | Φ600 | Φ700 | Φ800 | Φ900 | Φ1000 | Φ1100 | Φ1200 | Φ1300 | Φ1400 |
Depth of pot(mm) | 400 | 450 | 530 | 630 | 680 | 730 | 780 | 830 | 900 |
Heating area(m2) | 0.45 | 0.58 | 1.12 | 1.42 | 1.75 | 2 | 2.3 | 3.2 | 3.9 |
Electric power(kw) | 9 | 9 | 15 | 18 | 18 | 24 | 24 | 27 | 30 |
Heat transfer oil QTY. (L) | 30 | 36 | 45 | 60 | 70 | 80 | 100 | 200 | 250 |
Working pressure | ≤0.09Mpa(can be adapted according to customer requirement) | ||||||||
Mixing speed | 36 r/min(can be adapted according to customer requirement) | ||||||||
Mixing power(Kw) | 0.55 | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 |
