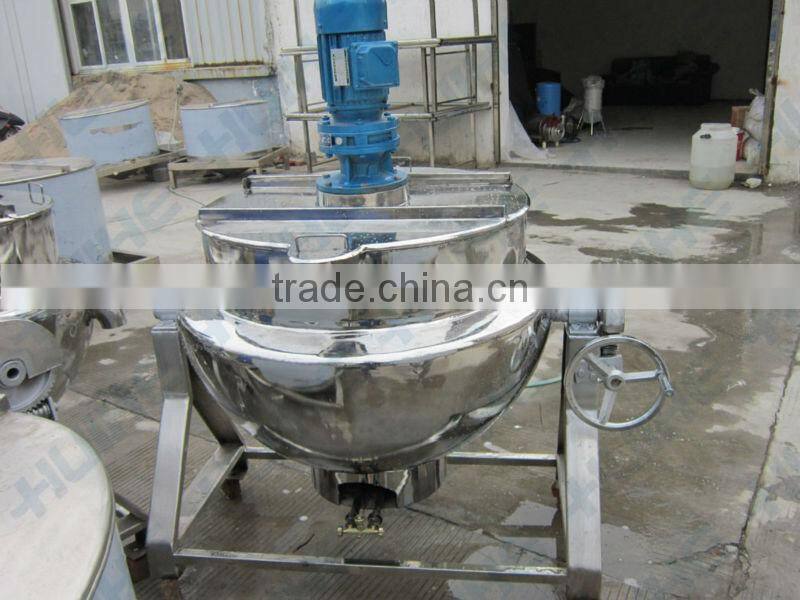

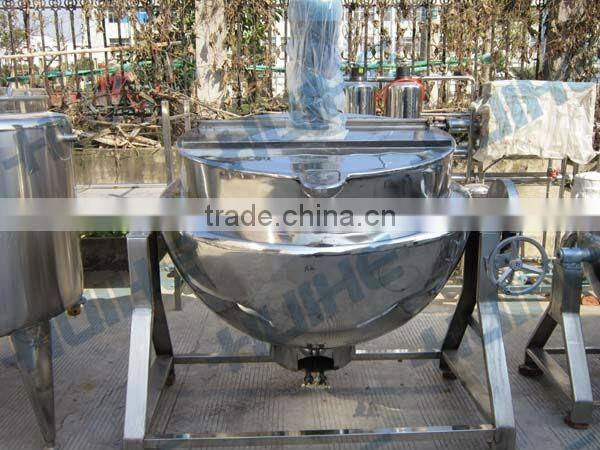

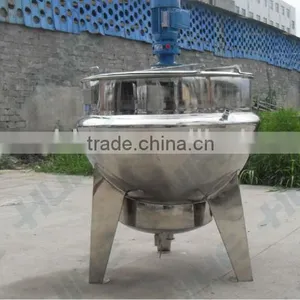

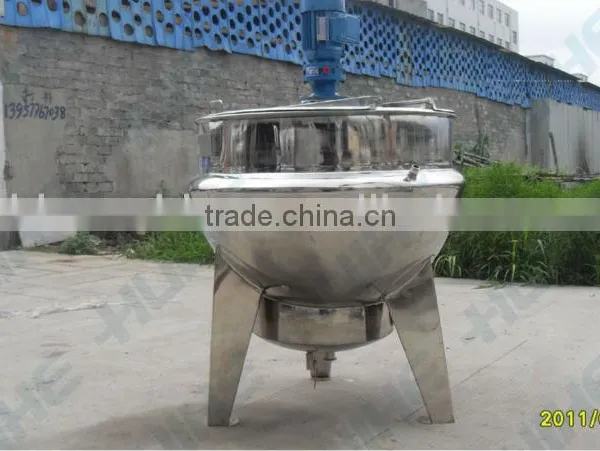

Hot Natural Gas Heating Jacketed Mixng Kettle

Hot Natural Gas Heating Jacketed Mixng Kettle photo-1
US$ 500 - 4,500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
huihe
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo or shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Zhejiang, China
Brand Name huihe
Model Number 500*1000L
Usage Other, FOOD&BEVERAGE
Type Wafer Baking Oven
Power Source Gas
Voltage made to order
Power(W) 1.5 kw
Weight 250kg
Dimension(L*W*H) 800*980
Certification CE
Warranty 12 months
After-sales Service Provided Overseas service center available

  Natural gas heating jacketed mixng kettle(agitating)is also named natural gas heating double-layer cauldron(agitating).It adopts stainless steel 304 as production material, which is resistant to heat and acid. The machine is equipped with gas stove. Not only has good-appearance, but also easy to install and operate. And now it has been widely applied in food processing such as candy, medicine, dairy, alcohol, cake, beverage, sweetmeat, can, etc. Some large restaurants and canteens also use it to boil soup, cook, stew and porridge. It is considered to be the ideal equipment in the area of improving quality, shortening the time and improving working conditions.



 Tilting Jacketed Kettle is mainly composed of pot and tilting frame; and the pot is the double layer structure formed by inside and outside spherical pot; middle layer can add heat-conducting oil or water.

Material
a)       Stainless steel inner pot(SUS304/SUS316L), carbon steel outer pot (Q235-B) treated with anti-rust paint
b)      The whole machine is made of stainless steel (SUS304/SUS316L)



Technical Parameters of Jacketed Kettle
Model
50
100
200
300
400
500
600
800
1000
Caliber(mm)
Φ600
Φ700
Φ800
Φ900
Φ1000
Φ1100
Φ1200
Φ1400
Φ1500
Depth of Pot (mm)
400
450
530
630
680
730
780
830
900
Heating area(m2)
0.45
0.58
1.12
1.42
1.75
2
2.3
3.2
3.9
Amount of heat-conducting oil(L)
30
36
45
60
70
80
100
200
250
Working pressure
≤0.09Mpa(can be adapted according to customers’ requirement)
Stirring speed
36 r/min(can be adapted according to customers’ requirement)
Stirring power(kw)
0.55
0.55
0.75
1.1
1.1
1.5
1.5
2.2
2.2
