Vertical Jacketed Cooking Pot

Hangzhou Huihe Machine Facture Co., Ltd.

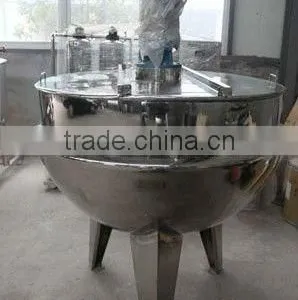

Vertical Jacketed Cooking Pot thumbnail-1

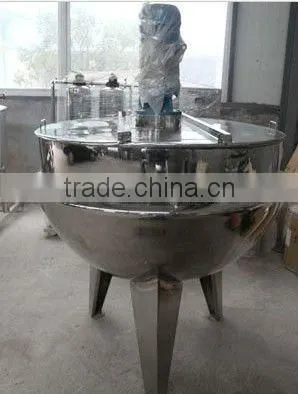

Vertical Jacketed Cooking Pot photo-1
US$ 570 - 5,420 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HH
Model Number:
100L
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo or shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name HH
Model Number 100L
Type Cooking Equipment
After-sales Service Provided Engineers available to service machinery overseas

 Vertical Jacketed Cooking Pot is also called double-layered steam cauldron, which is applied widely for the processing such products as candy, medicine, dairy, alcohol, cake, beverage, sweet meat, can, ets. It is also used to boil water, cook, stew, boil porridge, etc in great scale dinning-room or eatery, which is a choiceness equipment, which is a choiceness equipment in food. Processing to advance quality, shorten time, improve labor condition. Characteristics: This pan takes a certain pressure steam as the mal source, which is with many characteristics as big being heated area, high thermal efficiency, short time of boiling, temperature being controlled easily. Inner layer pan body is made up of acid Cresistant and the beautiful figure, easy installation, simple operation, on the safe side.





Technical parameter

Type
Metric volume(L)
Dimension Diameter¡Ádeepth(cm)
Form
Working air pressrue(Mpa)
Agitation speed(r/min)
Max tilt angle(Degree)
Pipe diamater of inlet and outlet(inch)
Power of motor(kw)
G50-I
50
52*40
Ttlting
0.3/0.5

90
1/2"

G50-II
Agiltaion
36
90
0.5
G100-I
100
66.4*48.2
Ttlting
0.3/0.5

90
3/4"

G100-II
Agiltaion
36
90
0.5
G100-III
Fixing

90

G200-I
200
85*57.5
Ttlting
0.3/0.5

90
3/4"

G200-II
Agiltaion
36
90
0.5
G200-III
Fixing

90

G300-I
300
100*65
Ttlting
0.3/0.5

90
3/4"

G300-II
Agiltaion
36
90
0.5
G300-III
Fixing

90

G400-I
400
100*75
Ttlting
0.3/0.5

90
3/4"

G400-II
Agiltaion
36
90
0.5
G400-III
Fixing

90

G500-I
500
110*85
Ttlting
0.3/0.5

90
3/4"

G500-II
Agiltaion
36
90
0.5
G500-III
Fixing

90

G600-I
600
120*95
Ttlting
0.3/0.5

90
3/4"

G600-II
Agiltaion
36
90
0.5
G600-III
Fixing

90

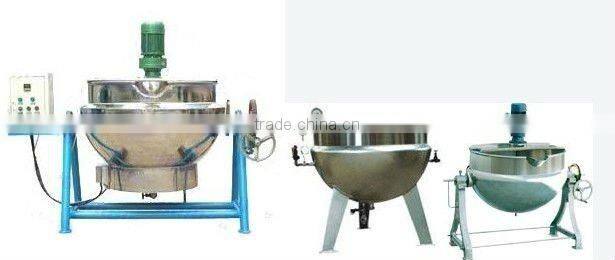

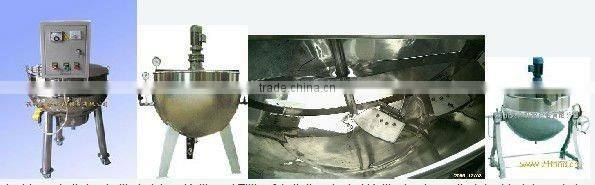

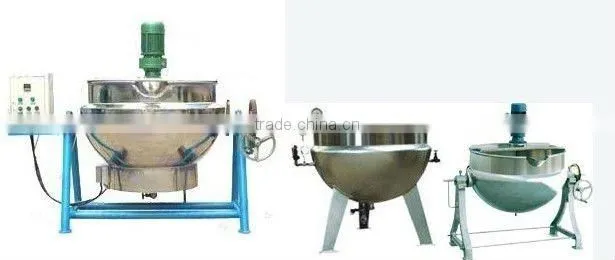

Vertical Jacketed Cooking Pot



Vertical Jacketed Cooking PotVertical Jacketed Cooking PotVertical Jacketed Cooking PotVertical Jacketed Cooking Pot
