Home > Industrial Equipment & Components > Filtration Equipment & Parts > Industrial Water Filter > High Quality Stainless Steel Sanitary Filters Double Filter

High Quality Stainless Steel Sanitary Filters Double Filter

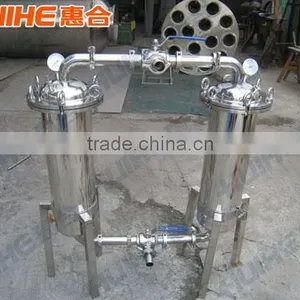

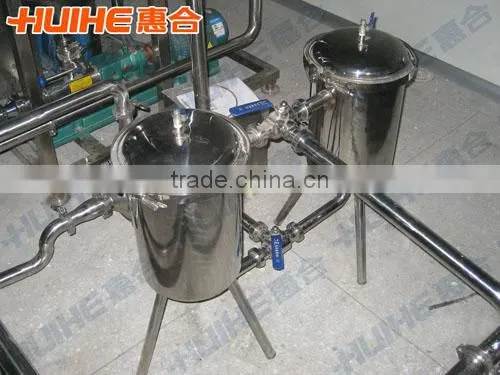

High Quality Stainless Steel Sanitary Filters Double Filter thumbnail-1
High Quality Stainless Steel Sanitary Filters Double Filter thumbnail-2
High Quality Stainless Steel Sanitary Filters Double Filter thumbnail-3
High Quality Stainless Steel Sanitary Filters Double Filter thumbnail-4
High Quality Stainless Steel Sanitary Filters Double Filter photo-1
High Quality Stainless Steel Sanitary Filters Double Filter photo-2
High Quality Stainless Steel Sanitary Filters Double Filter photo-3
High Quality Stainless Steel Sanitary Filters Double Filter photo-4
US$ 1,500 - 4,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HUIHE
Model Number:
L-001
Contact Supplier Request Quote Chat Now
Hangzhou Huihe Machine Facture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name HUIHE
Model Number L-001
After-sales Service Provided Engineers available to service machinery overseas

Double Filter (Multi-layer Filter)



Double filter is also called double switching filter. It is parallel connected by two sets of stainless steel filters. It owns advantages of reasonable structure, good sealing, strong circulation ability and easy operation, is multifunction filter equipment which is wide application range and strong adaptability. Especially the filter bag is small leakage rate, can guarantee the filtration precision, and can quickly change the filter bag.



Usage of Double Filter (Multi-layer Filter)

1, weak corrosive materials in chemical and petrochemical production, such as: water, ammonia, oil, hydrocarbon, etc.
2, corrosive materials in chemical production, such as: caustic soda, thick thin sulfuric acid, nitric acid, acetic acid, etc.
3, the low temperature refrigeration materials, such as: liquid methane, liquid ammonia, oxygen and all kinds of cold agent.
4, materials have health requirements in light industry, pharmaceutical production, such as: beer, beverage, dairy products, food plasma medical supplies, etc.
Structure of Double Filter (Multi-layer Filter)
    The filter all uses stainless steel to make, it consists of two stainless steel cylinder, it’s a single layer of stainless steel welding structure, internal and external surface polishing treatment, filter cylinder is equipped with stainless steel mesh and mesh support basket;
    Capped with a bleed valve, discharge air in the filter for filtering effect. Top cover connected to the filter cartridge adopts quick open structure, more convenient cleaning (change) mesh, three adjustable leg can make smooth filter is placed on the ground.
    Pipe connection with articulated or clamp connection mode, front-rear using three-way ball valve opening and closing valve, pressure and temperature resistant, convenient operation and no material liquid leakage more health.
Technical Parameters of Double Filter (Multi-layer Filter)
Specification
0.15 M2
0.25 M2
0.35 M2
Flow
3 T/H
5 T/H
10 T/H
Body size
1050 × 420 × 1087
1300 × 500 × 1100
1520 × 550 × 1200
Filter mesh specification
80-200

Notes:
2, process parameters that need provided: the material properties, productivity, special requirements, etc.

 Our Services
Why Choosing Our Double Filter(Multi-layer Filter)

1. Huihe machine have sales department, engineering department, after sales department, we are all service for you;

2. We are not competing for the price but the high quality and friendly service we competition

3. The salesman and engineer will listen to your requirements and the effect which you want to reach patiently, and tailored for you;

4. The after sales colleague will service for you from place an order to the actual production;

5. 9 years of industry experience, industry leader;

6. Factory, office site visit.

High quality stainless steel sanitary filters double filter
 Packaging & Shipping
Double Filter(Multi-layer Filter) ’s Packing Before Delivery
 Company Information
Authentication certificate and strength show

Hangzhou Huihe Machine Facture committed to design and manufacture all kinds of stainless steel container.



We can design according to customers' requirements for various kinds of stainless steel vessel, jacketed kettle, autoclave, milk cooling tank,and fermentor,etc .



The equipments conform to the sanitary standards, thus effectively guarantee people's health.


High quality stainless steel sanitary filters double filter

Huihe Company not only has a professional oversea sales team , but also has department of networks, sales Support and technology research and development,etc .We can supply turn-key project for design and manufacture of a whole production line, for example milk production line, juice production line ,tea production line ,etc.

Our core value is “service for small and medium food enterprises, and benefit of the public”, the products has been send to all over the world for 9 years . We are deeply trusted by the users in the food and beverage industry. We are famous in the food machine field for jacketed kettle, sterilization equipment, reaction tank and fermentation tank ,etc.

High quality stainless steel sanitary filters double filter

Since founded in 2005 , we service customers with good pre-sales support and after-sale service . We purpose is "guaranteed quality, complete variety , competitive price , timely delivery" .We insist our vision “Honest, pragmatic and win-win ” to provide best quality and service.
