Application
QN series roundness vacuum concentrator ( concentration tank) serves to Chinese herbal medicine, western medicine, food, glucose, juice, candy, chemical engineering etc. The vacuum of the liquid concentrated, crystallize, recyle, distil, alcohol recovery etc.
Component

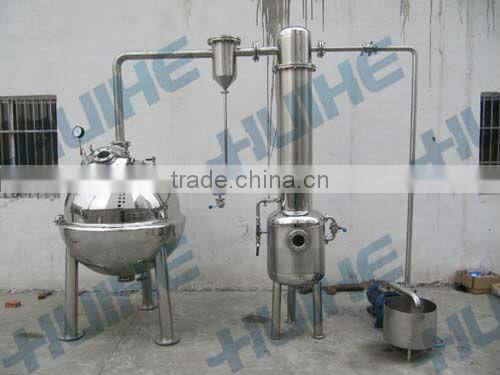

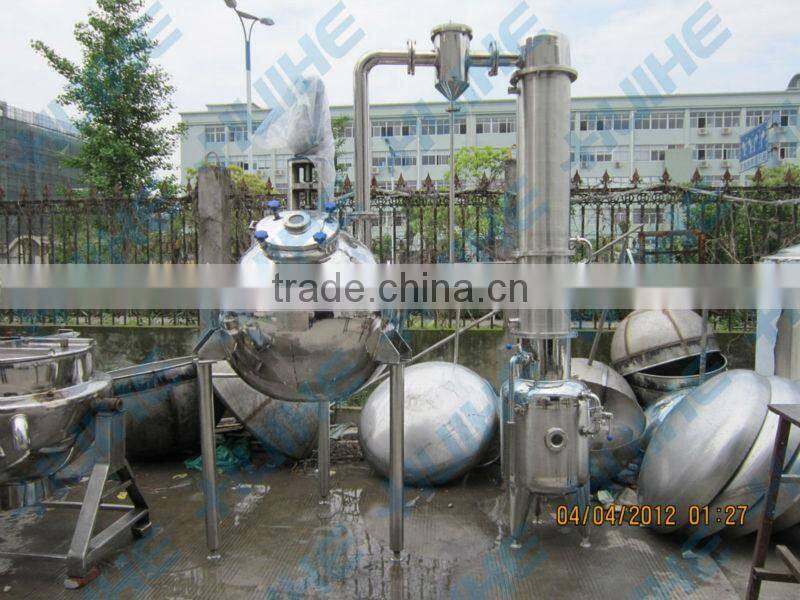

1) This equipments primarily contain concentration tank, condensator and gas-liquid separator. The concentration under reduced pressure brings short time of concentration and prevent the destruction of effective content in the thermal sensitive material.
2)The part in contact with the material is made of stainless steel brings qualified anti-corrosion performance, meeting with the GMP standard.
Advantage
1) The device has the functions of heating and heat preservation. It is manufactured, pressure-tested and checked in accordance with the <Technology Specifications for Steel Welded Vessel>.
2) The standard specification from 100L to 7000L and order-design or order-manufacture are all available.
3) The joint is of quick-acting type in compliance with ISO standard. The inner part is made of SUS316L or SUS304. The tanks body are respectively fluid level gauge (the mode is non-contact supersonic, static-pressure transmission or glass tube), breathing apparatus, sterilization steam opening,the rmometer (digital-indicated type or dial type), CIP universal tank-cleaning device, view mirror at lamp hole, some fluid inlets & outlets and herringbone hole.
Technology parameter
|
Model and specification
|
QN-300 |
QN-500 |
QN-700 |
QN-1000 |
|
|
Transpiration rate (kg/h) |
70 |
120 |
145 |
195 |
|
|
Volume (L) |
300L |
500L |
700L |
1000L |
|
|
Steam pressure (Mpa) |
0.09 |
||||
|
Vacuum degree (mmHg) |
500~620mmHg |
||||
|
Heating area (m2) |
1.3 |
1.5 |
2 |
2.8 |
|
|
Condensing area (m2) |
2.4 |
3 |
3.5 |
4 |
|
|
Equipment weight (kg) |
380 |
450 |
630 |
950 |
|
|
Outsize dimension (mm) |
L |
1900 |
2030 |
2100 |
2335 |
W |
1100 |
1200 |
1300 |
1520 |
|
H |
2300 |
2500 |
2600 |
2765 |
|
