Help CenterZN Series Vacuum Concentration Tank
Related Products
-
QN Series Round ConcentratorUS$ 25,000 - 40,000MOQ: 1 Piece -
Milk Evaporator / Milk Concentrator for SaleUS$ 4,500 - 9,999MOQ: 1 Piece
-
3000L/H Liquid Product Sterilization MachineUS$ 4,500 - 9,999MOQ: 1 Unit
-
Stainless Steel Small Pasteurizer for Soybean MilkUS$ 4,500 - 9,999MOQ: 1 Unit
-
WZ Series Type Single- Effect Outer Circulation ConcentorUS$ 3,300 - 9,900MOQ: 1 Set

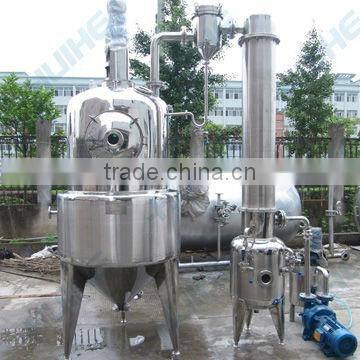

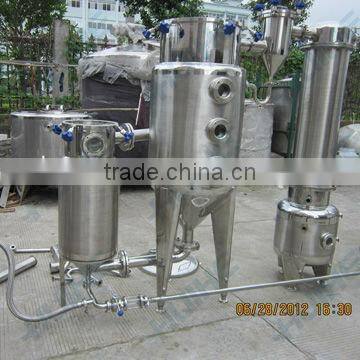

The circular concentration can, consisting of four parts of can body, condenser,gas-liquid separator and liquid receiving barrel, is available to concentrate and distill the material liquid in such industries as pharmacy, food and chemistry
and recycle the organic menstruum . The adoption of reduced pressure concentration shortens the time for concentration, avoiding the destruction to effective component inside the thermal sensitive material. The contact part of the concentrator and the material is made with the stainless steel, resistan to corrosion and high durable, meeting the standard of the GMP. The equipment has the functions of heating and heat preservation. It is manufactured, pressure-tested and checked in accordance with the <Technology Specifications for Steel Welded Vessel>
The standard specification from 100L to 7000L and order-design or order-manufacture are all available.
The joint is of quick-acting type in compliance with ISO standard. The inner part is made of SUS316L or SUS304. At the tanks body are respectively fluid level gauge (the mode is non-contact supersonic, static-pressure transmission or glass tube), breathing apparatus, sterilization steam opening,the rmometer (digital-indicated type or dial type), CIP universal tank-cleaning device, view mirror at lamp hole, some fluid inlets & outlets and herringbone hole.
Technical Parameters:
Specification |
QN-300 |
QN-500 |
QN-700 |
QN-1000 |
Evaporation Capacity (kg/H) |
70 |
120 |
145 |
195 |
Capacity (L) |
300 |
500 |
700 |
1000 |
Jacketed Layer Pressure (Moa) |
0.09 |
|||
Vacuum Degree (mmHg) |
500-620 |
|||
Heating Area |
1.3 |
1.6 |
2 |
2.8 |
Cooling Area |
2.4 |
3 |
3.5 |
4 |
