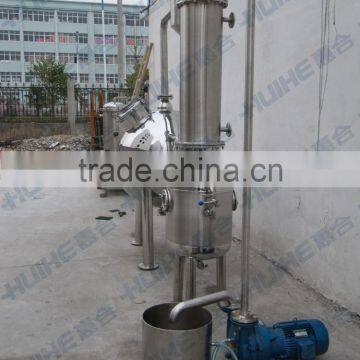

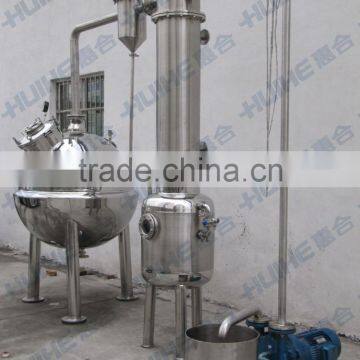

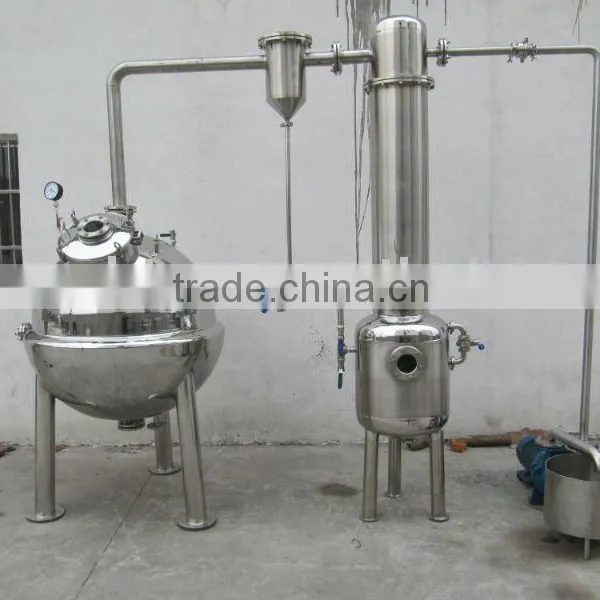

QN Series Round Concentrator
- 2000 Piece / Pieces per Month
- NINGBO/SHANGHAI/QINGDAO/LIANYUNGANG/DALIAN PORT
- T/T L/C D/P D/A Credit Card PayPal
- Ethanol Recovery System (Ethanol recovery from waste liquid soap)
- Vacuum Decompression Concentrator (Tank)
- spherical vacuum concentration tank concentrator
- Vacuum Decompression concentration tank concentrator
- Triple-effect energy-saving concentration tank concentrator
- Single-effect external circulation concentration tank concentrator
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | Huihe |
Model Number: | hh-0021 | Processing Types: | Juice | Voltage: | made to order |
Power(W): | 3.5Kw | Weight: | 280 kg | Dimension(L*W*H): | 1900*1100*2300 |
Certification: | CE | Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Product information:
Introduction:

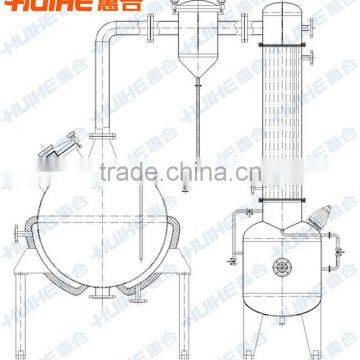

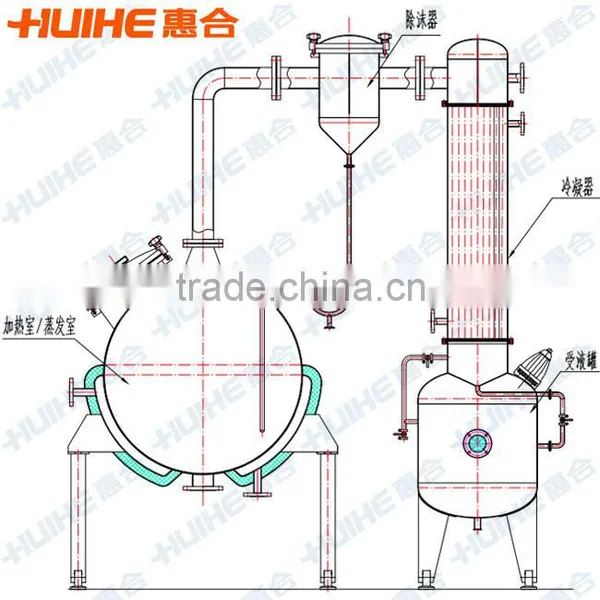

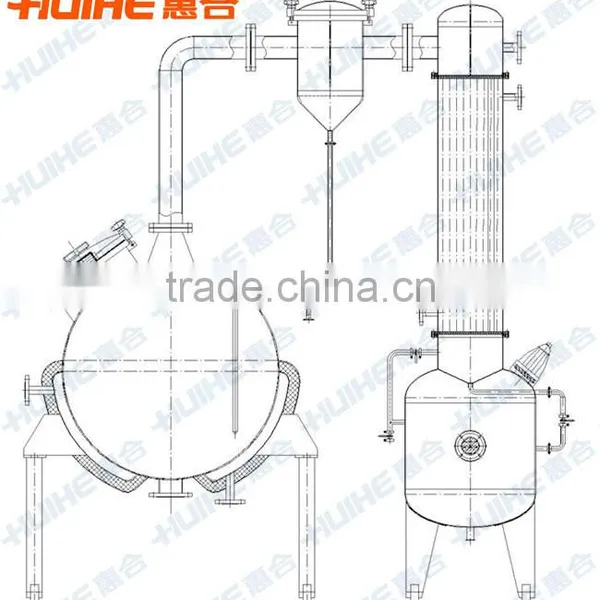

This device mainly includes concentration can, condenser, gas-liquid separator, cooler and liquid receiving barrel.
The concentration can is of clip-sleeve structure; the condenser is of row-pipe type; the cooler is of coiled type. The device is suitable for the concentration of the material liquid in such industries as pharmacy, food and chemistry, etc, and as well serves for the recycle of alcohol and simple refluence distillation. The contact part of the concentrator and the material is made with the stainless steel, resistant to corrosion and meeting the standard of the GMP.
Function:
This equipment is manufactured of stainless steel, provided a high-pressured water automatically spraying system. It is possible to get in the cooling water to the clamp cover. The transmission spot uses the mechanical seal. And to guarantee the production process safely as well as to conform to the GMP quality specification, we use the explosion proof electrical machinery.
Technical Pramaters:
Model | QN-300 | QN-500 | QN-700 | QN-1000 |
Evaporation KG/H | 70 | 120 | 145 | 195 |
Volume | 300L | 500L | 700L | 1000L |
Jacket pressure | 0.09Mpa | |||
Vacuum degree | 500-620mmHg | |||
Heating area | 1.3 | 1.6 | 2 | 2.8 |
Condensation area | 2.4 | 3 | 3.5 | 4 |
Weigh KG | 380 | 450 | 630 | 950 |
Length mm | 1900 | 2030 | 2100 | 2335 |
Width mm | 1100 | 1200 | 1300 | 1520 |
Height mm | 2300 | 2500 | 2600 | 2765 |
