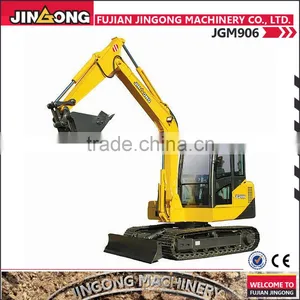

amphibious excavator for sale JGM906LC crawler excavator
1.The four-cylinder four-stroke Yanmar 4TNV94L-SFN engine is characterized by high capacity, high reliability, high economy and low pollution exhaust. It’s easily satisfies Euro II exhaust emission standards and relevant environment protection requirements and guarantees serious power. Its unique cooling mode ensures even distribution of temperature and the proper operation of your equipment even in the hot summer weather.
2.Brand name hydraulic elements and imported working pump, master control valves, traveling driving assembly, slewing driving assembly and various pilot valves constitute the hydraulic system, which is characterized by high reliability as well as stable, fast and easy operation.
3.Boasts superior traction to guarantee the reliable and stable traveling of the excavator.
4.Advanced design as well as high-quality and high-strength materials enable the JGM906 excavator to satisfy various types of overloading and operating requirements with ease.
5.Spacious cab, wide field of vision, electronic monitoring system is conspicuous, attractive and easy to operate.
6.The engine hood is designed to be fully open to ensure sufficient repair room and make routine inspection and repair even more convenient.
7.crawler excavator
| Diesel engine | |
Model | Yanmar 4TNV94L-SFN |
Type | 4 cylinders,4 strokes, direct injection, water-cooling |
Displacement | 3.05cc |
Rated power | 39.5kw at 2200rpm |
Max. Torque | 214nm at 220rpm |
Swing speed | 9.8r/min |
|
|
Dimensions | |
Overall length(during transport) | 6200mm |
Width of turntable | 2000mm |
Height of driver’s cabin top | 2610mm |
Height of boom top | 2000mm |
Track width | 2000mm |
Wheel base | 2000mm |
Track length | 2560mm |
Track gauge | 1600mm |
Track shoe width (standard) | 400mm |
|
|
Operating specification | |
Operation weight | 6100kg |
Standard bucket capacity | 0.2m3 |
Max. excavating height | 5300mm |
Max. dumping height | 3690mm |
Max. excavating depth | 3770mm |
Max. excavating radius | 6425mm |
Excavating radius at excavator standing plane | 6275mm |
Min. swing radius | 2815mm |
Excavating height at min. swing radius | 3205mm |
Max. excavating force of bucket | 42.5kn |
Max. excavating force of bucket rod | 28.5kn |
Oil and cooling | |
Fuel | 125L |
Coolant | 32L |
Engine oil | 10.5L |
Travel reducer oil | 2x1.5L |
Swing reducer oil | 6L |
Hydraulic oil | 125L |
