china excavator price Crawler loader excavator 23t JGM924KY
The JGM923-LC crawler excavator is featured with high professional standard, low fuel consumption, high reliability, high efficiency, good driving comfort and good environment protection. It is developed by combining our more than thirty years' experience and the advantages of the counterparts as well as our own characteristics. The product has high performance price ratio with the configuration of high strength structural parts, advanced intelligent electronic control system, excellent user-oriented design, comfortable driving environment and reasonable layout for whole machine.
Performance Features
1. Strong and Fuel Efficient Power System
A. The power system of the product is configured with the original imported Cummins engine which can output strong power but consume little fuel. The engine also performs excellently in high efficiency, low noise and environment protection.
B. The good cooling system can keep sound operation of the crawler excavator.
C. The electronic control system can sense the load situation of the hydraulic system to adjust the pump flow timely, keeping the engine running with optimum load speed, thus attaining the purpose of saving fuel.
D. The reliability of engine working under bad conditions can be elevated by using the multistage filtration for fuel. Our product can be applied without regional restriction.
2. Stable Quality, Fast Working Speed and Nimble Movement
A. The full set of hydraulic core elements is imported and the flexible pilot control is adopted.
B. The hydraulic pump is the cross constant power negative flow control twin pump type. It controls the flow of pump through collecting the pressure, which can achieve precise control for energy saving.
C. The valve is fabricated with high integration level. Via the valve, the functions such as rotary priority and keeping running straight can be achieved. Additionally, the service valve connection device is available for installing a variety of hydraulic equipment.
D. The rotary motor of the crawler excavator can guarantee ultra strong output torque matching the 26t excavating machine. It can be started quickly and stably, raising the rotary working efficiency. Meanwhile, the wear-free hydraulic buffer brake enables steady operation with no impact.
E. The pure Japanese dual speed travel motor can automatically adjust the traveling speed in line with the road condition. Embedded with hydraulic buffer, it enables steady starting and stopping without impact.
3. Easy and Convenient Repair and Maintenance
Due to the layout optimization, the parts needing frequent checking and maintenance are arranged at the place within reach. Meanwhile, the components with similar functions are placed together for convenient overhauling and repair.
4. High Durability and Reliability Owing to the Technical Design
A. The crawler excavator can have large excavating force even in the bad working environment owing to the strengthened working devices such as boom arm, dipper arm and bucket. It also has outstanding climbing capacity.
B. The well-manufactured hydraulic elements and hydraulic pipeline can work normally with high durability even under hydraulic oil pressure fluctuation.
C. The lower frame of the product is lengthened. In contrast with the counterparts in the market, the design of nine support wheels at single side makes the lower frame much firmer and more stable, making the product adapt to the extreme site with the further increased anti-overturning property.
D. The working device of the product is optimized in view of heavy load working condition. It is processed with local reinforcement and box-type strengthening methods so as to keep light weight, large strength and small deformation when the product works with heavy load.
5. Intelligent Operation and User-friendly Display Design
A. With the multifunctional LCD display device available, all the running information of the components such as engine can be collected for query at any time.
B. The user-friendly design of concentrated functional switches on the control board with point touch button is convenient for switch option.
C. The hydraulic system of the crawler excavator controls the opening and closing of the valve via the hand pilot control, featuring high agility and fast action response. The power system controls the power output range directly through the electronic system according to the selection of the user to actualize appropriate load for corresponding work.
6. Comfortable Driving Environment
A. The temperature in the cab is controlled at the comfortable level with the service of the strong air conditioner.
B. The large and bright interior space of cab allows for broad vision field of the driver.
C. The driver can also enjoy the adjustable deluxe suspension seat as well as the large size monitor and the accessible operating devices.
Specification
| Item | Parameter | Unit | |
| Operating Weight | 22320 | kg | |
| Bucket Capacity | 0.7-1.1 | m³ | |
| Engine | Model | Cummins 6BTA5.9 | |
| Rated Power at 2200rmp | 125/2000 | kW/rpm | |
| Max. Torque | 651/1500 | Nm/rpm | |
| Displacement | 5.9 | L | |
| Performance Parameter | Traveling Speed (Low/High) | 3.4/6.15 | km/h |
| Slewing Speed | 11.8 | rpm | |
| Standard Ground Pressure | 44 | KPa | |
| Max. Excavating Force of Bucket | 135 | KN | |
| Max. Excavating Force of Dipper Arm | 110 | KN | |
| Overall Dimensions | A. Overall Length | 9665 | mm |
| B. Total Width | 2990 | mm | |
| C. Boom Arm Top Height | 3200 | mm | |
| D. Width of Turntable | 2710 | mm | |
| E. Cab Top Height | 3055 | mm | |
| F. Ground Clearance of Balance Weight | 1070 | mm | |
| G. Balance Weight Top Height | 2030 | mm | |
| H. Min. Ground Clearance | 465 | mm | |
| I. Tail End Slewing Radius | 3075 | mm | |
| J. Wheel Base | 3650 | mm | |
| K. Track Length | 4443 | mm | |
| M. Track Gauge | 2390 | mm | |
| N. Standard Track Width | 600 | mm | |
| Working Range | A. Max. Excavating Radius | 9743 | mm |
| B. Max. Excavating Depth | 6225 | mm | |
| C. Max. Excavating Height | 9416 | mm | |
| D. Max. Dumping Height | 6519 | mm | |
| E. Max. Ground Excavating Reach | 9570 | mm | |
| Fuel Tank Capacity | 442 | L | |
| Hydraulic Oil Tank Capacity | 278 | L | |
| Coolant Capacity | 50 | L | |
| Engine Lubricating Oil Capacity | 16.5 | L | |
| Travel Speed Reducer Oil Capacity | 2 ×5.4 | L | |
| Slewing Reducer Oil Capacity | 4.5 | L | |
| Note: Structure and specification are subject to change without prior notice. In case there is any difference between the description of the product and the actual product, the actual product shall govern. | |||

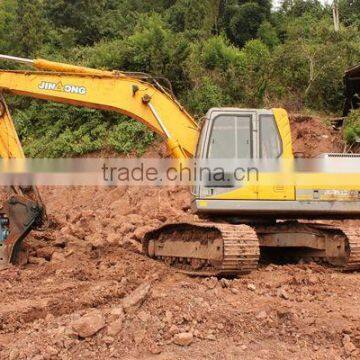

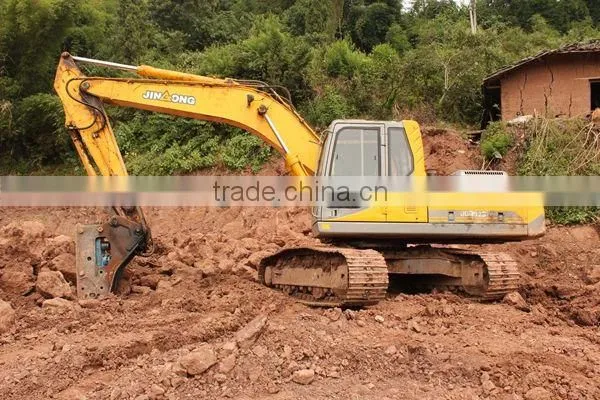

JGM923 Excavator in construction site
....
